Price range: £189.99 through £318.39

A complete Dayco timing-belt and selected water-pump package for Impreza WRX/STI registered 1996–1998 (V3–V4). Choose standard Aisin or RCM Black Series pump options, including a 70°C thermostat option.

Non Stock Item – Ordered In
Typical lead time: 1–3 working days, subject to supplier stock.

Description

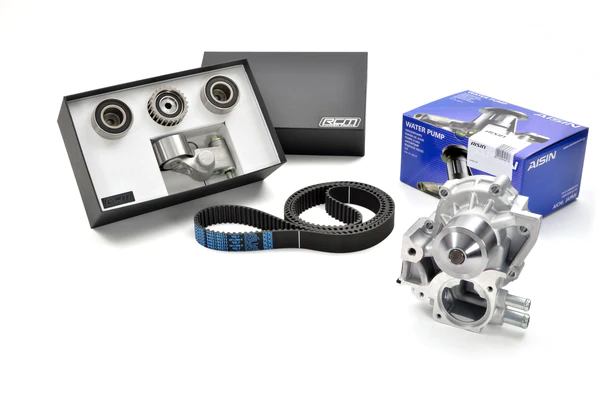

RCM/Dayco Timing Belt & Water Pump Combo – Impreza WRX/STI 96–98MY

A complete timing-belt and selected water-pump package for the verified application below. RCM combines OE hardware from its technical partners, including NTN, NSK, Koyo and Aisin, with a Dayco timing belt.

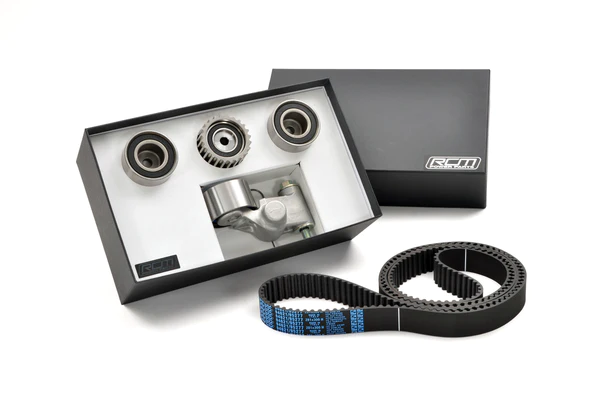

Timing-kit contents

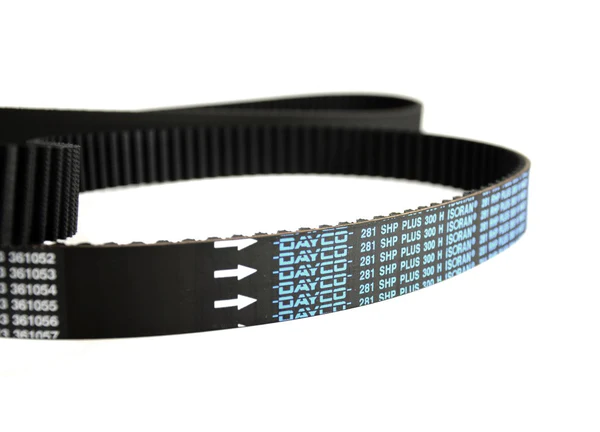

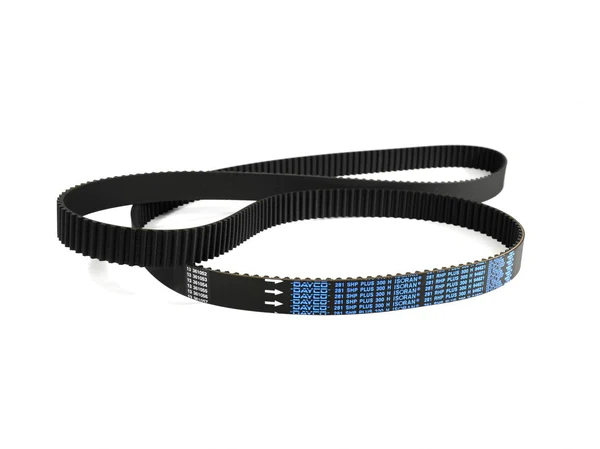

  • One Dayco timing belt.
  • One timing-belt tensioner.

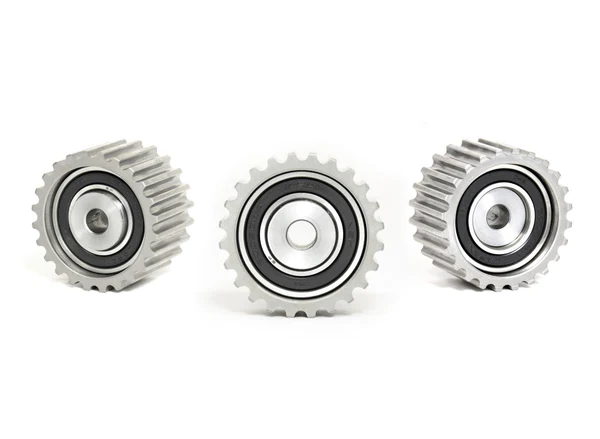

  • One toothed idler bearing.

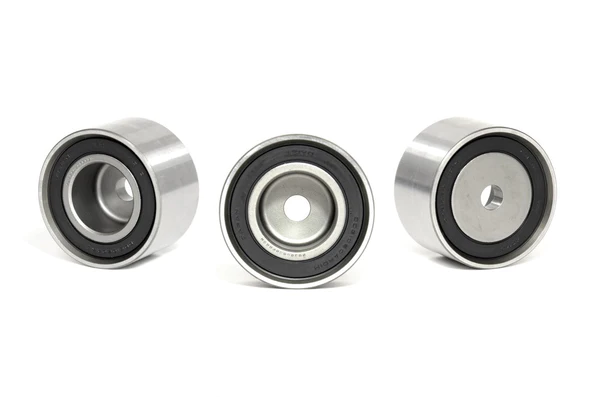

  • Two smooth idler bearings.
  • Thermostat seal and water-pump gasket.

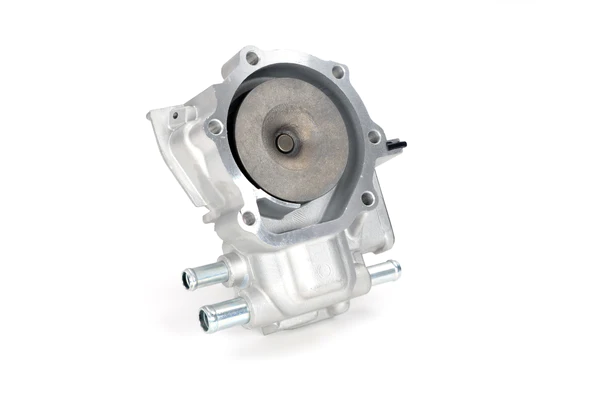

  • One water pump, according to the selected option below.

Choose the water-pump option

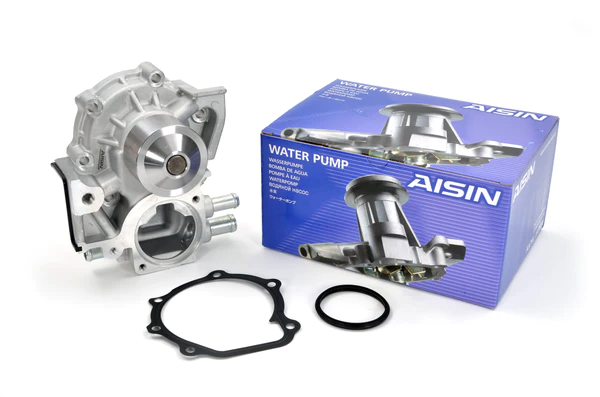

  • Standard: Aisin three-port pump; supplier reference SEN1133WP.
  • RCM Black Series: replaces the standard pump with the RCM Black Series pump and billet thermostat housing; supplier reference SEN1133WPR.
  • RCM Black Series with 70°C thermostat: the Black Series pump and billet thermostat housing with a 70°C thermostat; supplier reference SEN1133WPR7.

One selected pump is supplied. The Black Series options replace the standard Aisin pump; the kit does not include two pumps. Only the WPR7 option explicitly includes the 70°C thermostat.

Fitment

RCM confirms Impreza WRX and STI registered 1996–1998, commonly known as V3–V4. The supplier labels this family 96–98MY EJ20/22/25. This engine-family label does not establish compatibility with every converted EJ20, EJ22 or EJ25 vehicle.

Confirm the timing-system layout, tensioner and idler arrangement for the engine fitted to the car. Registration dates are stated separately from the supplier model-year label.

Before ordering

Select the required pump option to see its price and supplied specification. Gallery detail views illustrate the range and components; the selected option defines the supplied package.

Other belt choices

Compare these separate packages for the same 1996–1998 Impreza WRX/STI application. Check the belt and pump specification on each product page before ordering.

Workshop accessories

The RCM billet timing-belt guide is a separate upgrade for the matching turbo engine installation.

Additional information

Weight 3 kg
Dimensions 30 × 25 × 15 cm
RCM - Dayco Timing Belt & Water Pump Combo Kit 96-98MY EJ20/22/25

RCM – Dayco Timing Belt & RCM Black Series Water Pump Combo Kit 96-98MY EJ20/22/25, RCM – Dayco Timing Belt & Water Pump Combo Kit 96-98MY EJ20/22/25, RCM – Dayco Timing Belt Kit & RCM Black Series Water Pump Combo 70 Degree Thermostat 96-98MY EJ20/22/25

Brand

Roger Clark Motorsport

Browse Roger Clark Motorsport (RCM) Subaru engine, cooling, performance and workshop products at MB Developments. Check the exact engine, model application and selected kit contents.
