Price range: £309.99 through £438.39

Timing kit with a genuine Subaru belt for Impreza WRX/STI V3–V4, with three water-pump options.

Non Stock Item – Ordered In
Typical lead time: 1–3 working days, subject to supplier stock.

Description

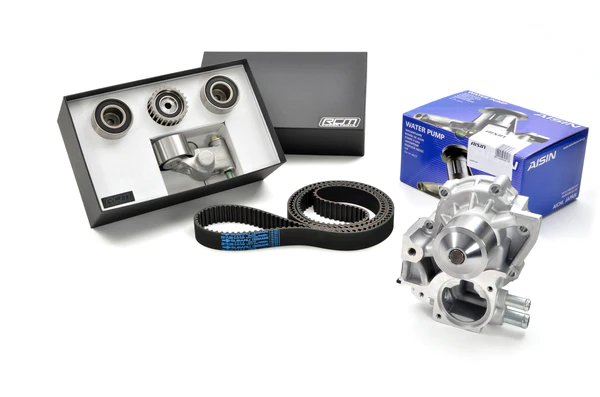

Timing belt and water-pump kit

This kit combines a genuine Subaru timing belt, OE-specification timing components and your selected water-pump package.

Kit contents

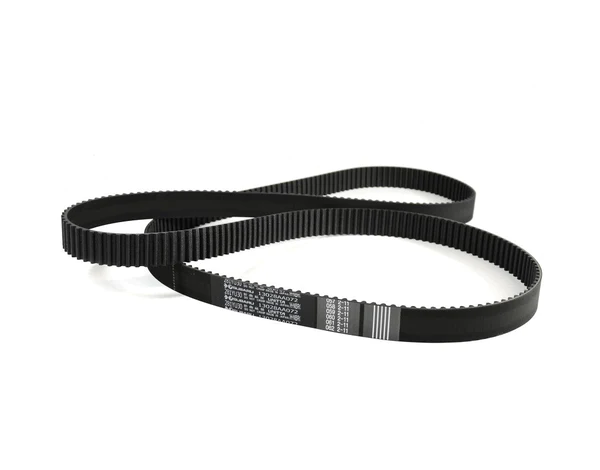

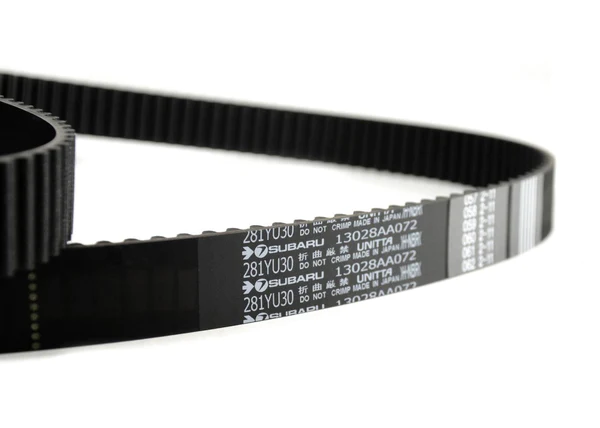

  • One genuine Subaru timing belt.
  • One standard timing-belt tensioner.

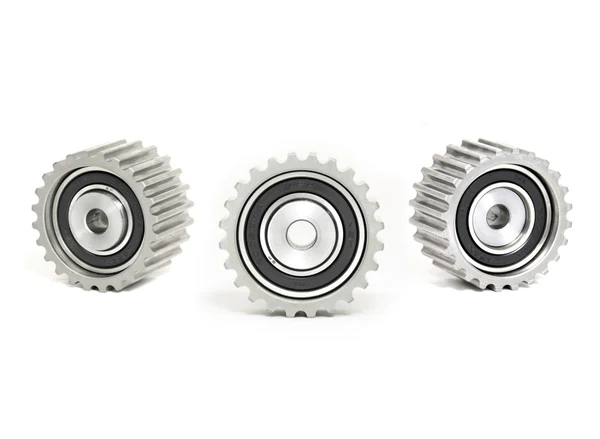

  • One toothed idler bearing.

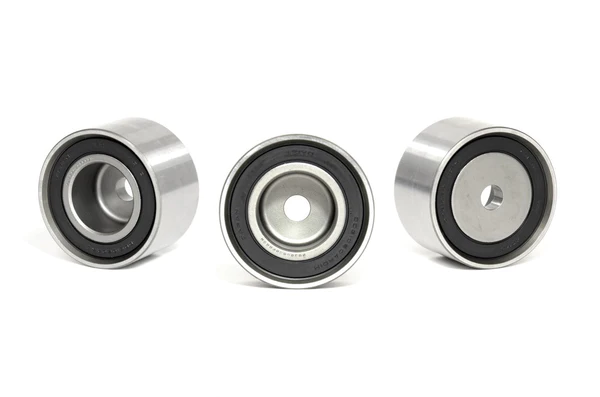

  • Two smooth idler bearings.

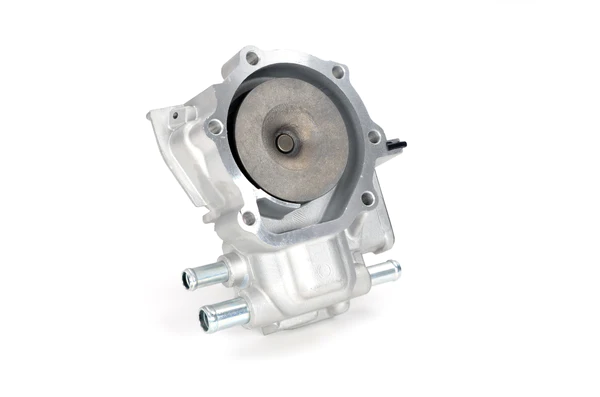

  • One water pump, according to your selection.
  • One thermostat seal and one water-pump gasket.

Choose the pump package

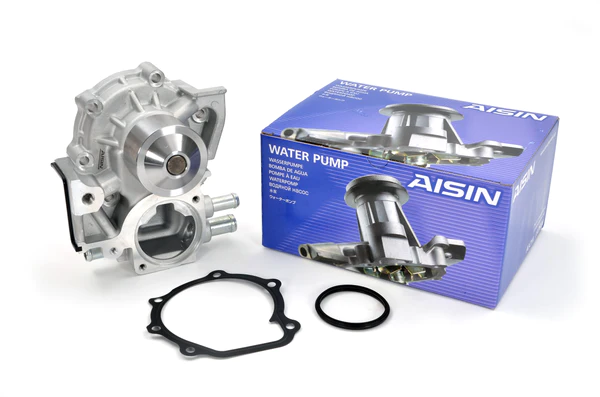

  • SEN1156WP: Aisin three-port water pump.

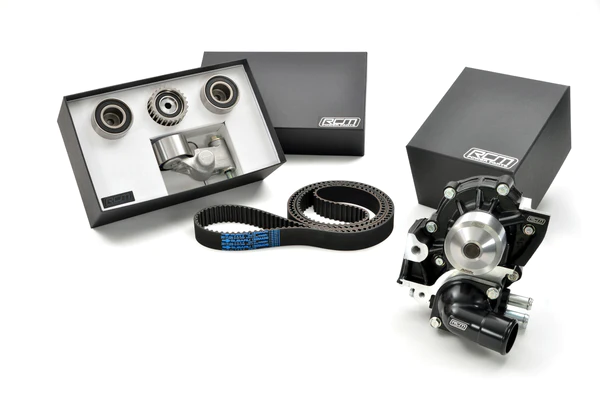

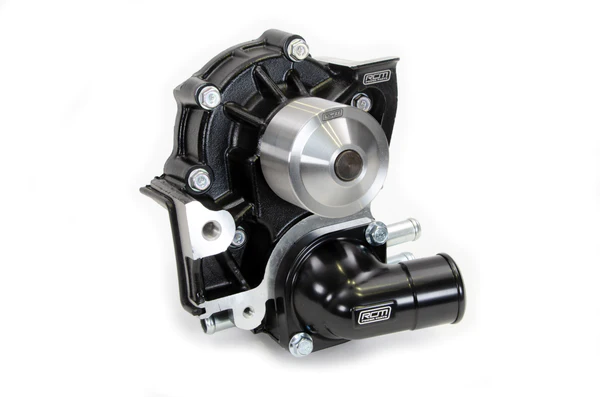

  • SEN1156WPR: RCM Black Series water pump with billet thermostat housing.
  • SEN1156WPR7: RCM Black Series water pump with billet thermostat housing and a 70°C thermostat.

Basket quantity 1 supplies one complete selected timing-belt and water-pump package. These pump-combo options use the standard tensioner. The 70°C thermostat is included with SEN1156WPR7.

Fitment and ordering

Subaru Impreza WRX and STI registered 1996–1998, commonly called V3–V4. The supplier family label is 96–98MY EJ20/22/25; model-year labels and registration dates are separate checks.

Match the actual engine, water-pump connections and timing hardware, particularly after an engine conversion.

Related timing hardware

If a pump is not required, see the separate V3–V4 timing kit with genuine Subaru belt, which offers standard or motorsport tensioner choices.

If needed, the genuine Subaru timing-belt guide with two securing bolts is a separate item; match its application and oil-pump mounting arrangement.

Additional information

Weight 2 kg
Dimensions 30 × 25 × 15 cm
Pump option

Aisin 3-port pump, RCM Black Series + billet housing, RCM Black Series + billet housing + 70°C thermostat

Brand

Roger Clark Motorsport

Browse Roger Clark Motorsport (RCM) Subaru engine, cooling, performance and workshop products at MB Developments. Check the exact engine, model application and selected kit contents.
