Price range: £459.99 through £588.39

STI Sports Parts timing belt and matched hardware for Impreza WRX/STI V3–V4 (1996–1998). Choose Aisin, Black Series or Black Series with a 70°C thermostat.

Non Stock Item – Ordered In
Typical lead time: 1–3 working days, subject to supplier stock.

Description

STI Sports Parts timing belt and water pump kit

This matched timing service kit combines the pink STI Sports Parts timing belt with a tensioner, three idler bearings and your choice of water pump. RCM specifies a Kevlar performance belt designed for the heat and stress of high-power or high-revving engines.

Choose your water pump

  • Aisin: standard three-port water pump.

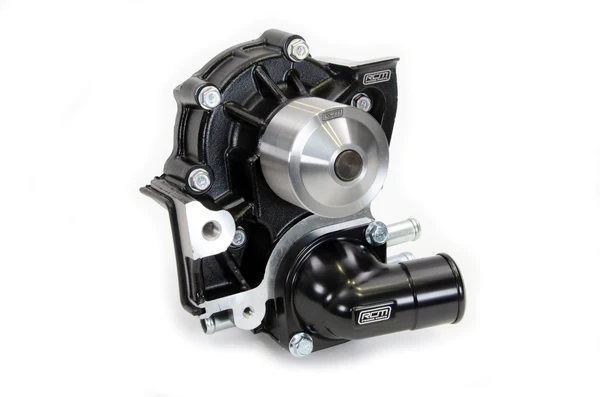

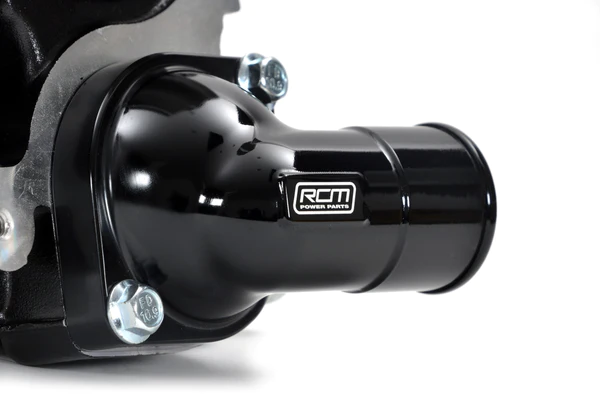

  • RCM Black Series: Black Series water pump with billet thermostat housing.

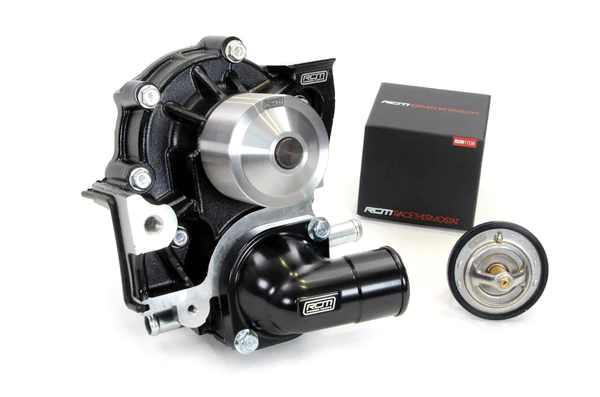

  • RCM Black Series with 70°C thermostat: Black Series water pump, billet thermostat housing and the cooler-running 70°C thermostat.

Choose the required option above. Each option is a complete timing belt and water pump kit; the pump and thermostat component photos illustrate the selected option.

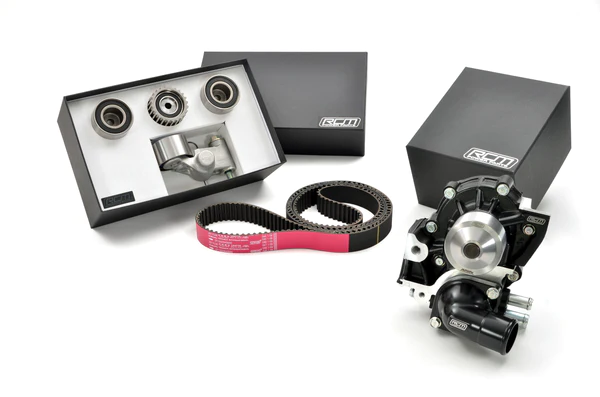

Kit contents

  • 1 STI Sports Parts timing belt

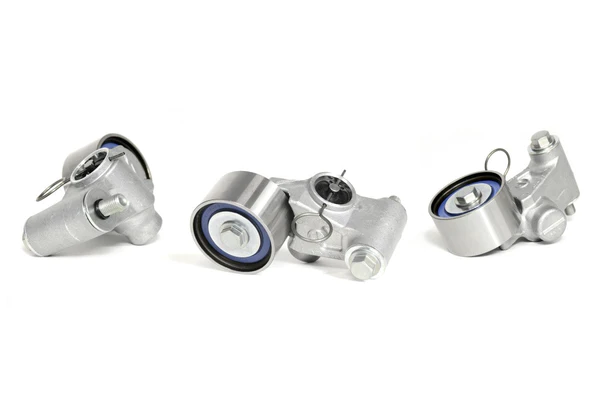

  • 1 timing belt tensioner

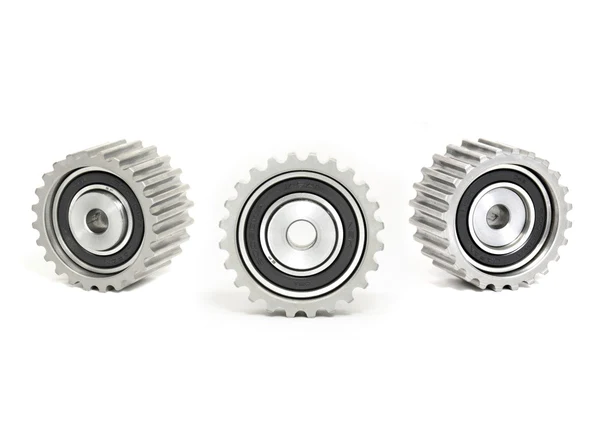

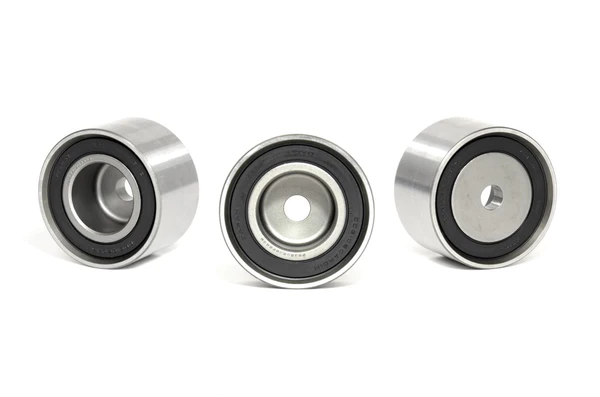

  • 1 toothed idler bearing and 2 smooth idler bearings
  • 1 selected water pump
  • 1 thermostat seal and 1 water pump gasket

The billet housing is included with both Black Series options. The 70°C thermostat is included only when that option is selected.

Fitment

Subaru Impreza WRX and STI registered from 1996–1998, commonly known as V3–V4. Confirm the correct kit for your engine before ordering, particularly where the engine or cooling system has been changed.

Alternative belt option

For the corresponding Gates belt kit, see the Gates timing belt and water pump kit for V3–V4.

Additional information

Weight 3 kg
Dimensions 30 × 25 × 15 cm
Water pump option

Aisin water pump, RCM Black Series water pump, RCM Black Series water pump + 70°C thermostat

Brand

Roger Clark Motorsport

Browse Roger Clark Motorsport (RCM) Subaru engine, cooling, performance and workshop products at MB Developments. Check the exact engine, model application and selected kit contents.
