Price range: £249.99 through £378.39
Gates timing belt and matched hardware for Impreza WRX/STI V3–V4 (1996–1998). Choose Aisin, Black Series or Black Series with a 70°C thermostat.
Description
RCM/Gates timing belt and water pump kit
A matched timing-service kit with a Gates timing belt for Subaru Impreza WRX and STI registered from 1996 to 1998 (V3–V4).
Choose your water pump

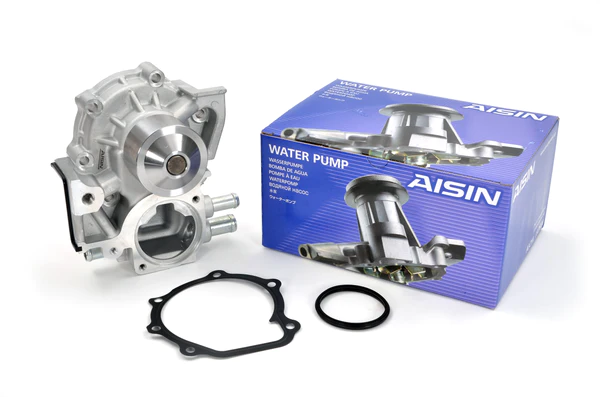

- Aisin water pump — SEN1822WP: the standard combo with an Aisin three-port pump.

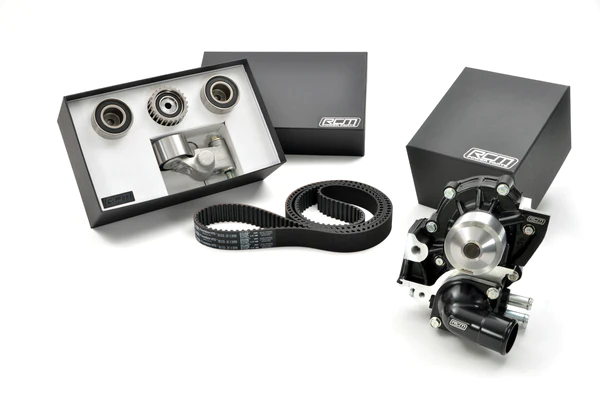

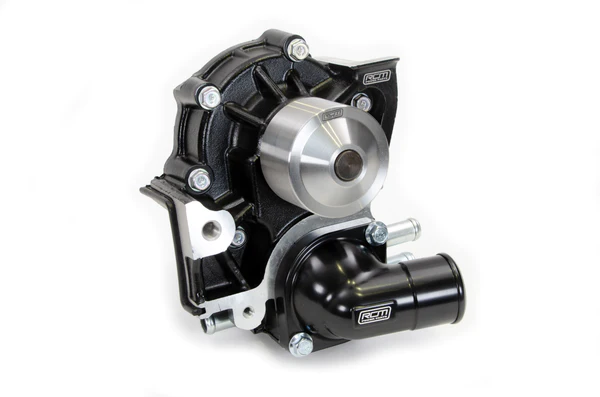

- RCM Black Series water pump — SEN1822WPR: replaces the Aisin pump with the Black Series pump and billet thermostat housing.
- Black Series pump with 70°C thermostat — SEN1822WPR7: adds the RCM 70°C thermostat to the Black Series configuration.

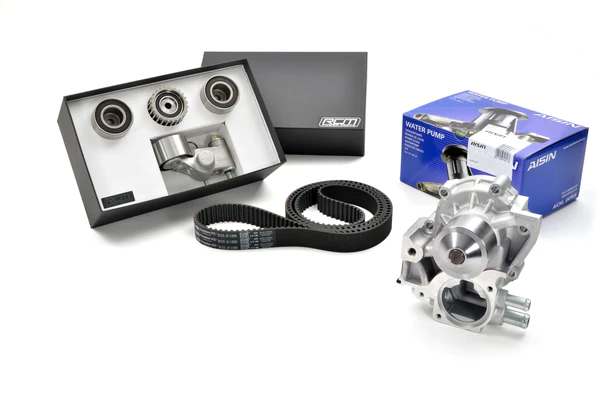

Kit contents
- One Gates timing belt.

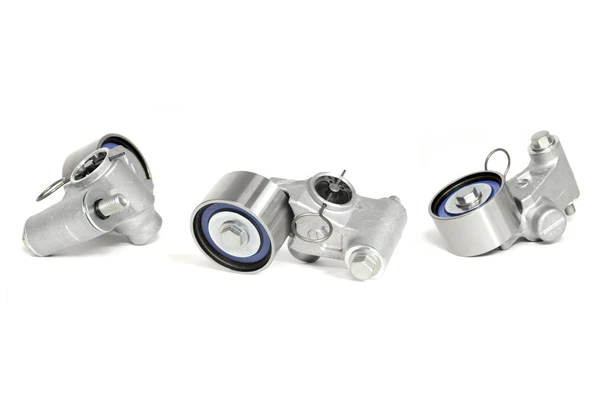

- One timing belt tensioner.

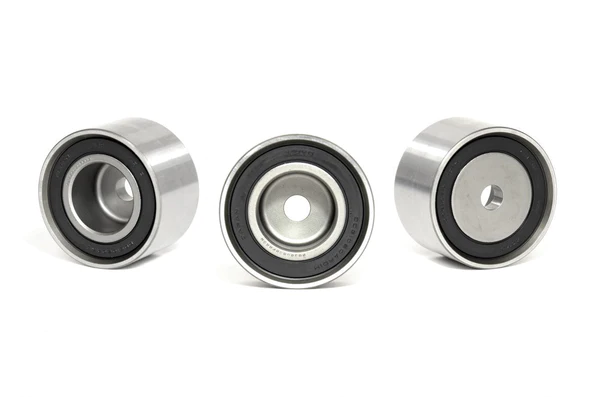

- One toothed idler bearing.
- Two smooth idler bearings.
- One water pump, according to your selected option.
- One thermostat seal and one water pump gasket.

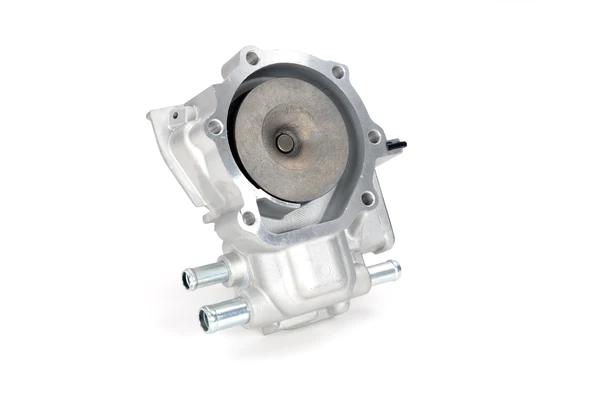

The Black Series options include the billet thermostat housing; the 70°C thermostat is included with the specifically labelled 70°C option. The pump-only photograph illustrates the pump and thermostat components of that complete combo.
Fitment
Subaru Impreza WRX and STI registered from 1996 to 1998, commonly known as V3–V4. Check the vehicle’s timing and cooling configuration before ordering, particularly if its engine has been changed.
Alternative belt choice
View the STI-belt timing and water-pump combo for the same confirmed years.
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 30 × 25 × 15 cm |
| Water pump option | Aisin water pump, RCM Black Series water pump, RCM Black Series water pump + 70°C thermostat |
