£5,393.19

RCM RCM2775 assembled 2.0L EJ20 short engine with EJ207 thick-walled block halves, H-section rods, Omega pistons and a nitrided crankshaft. Confirm the complete engine-build specification.

Non Stock Item – Ordered In
Typical lead time: 1–3 working days, subject to supplier stock.

Description

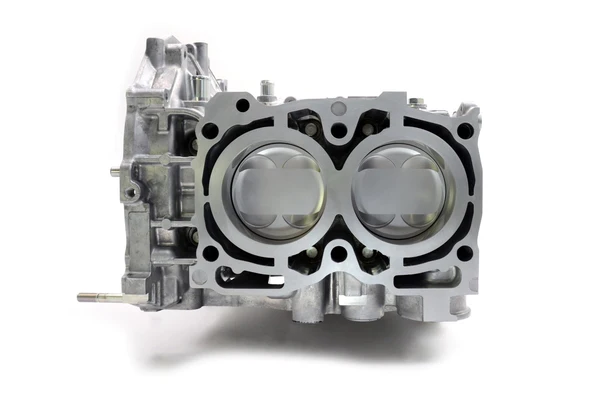

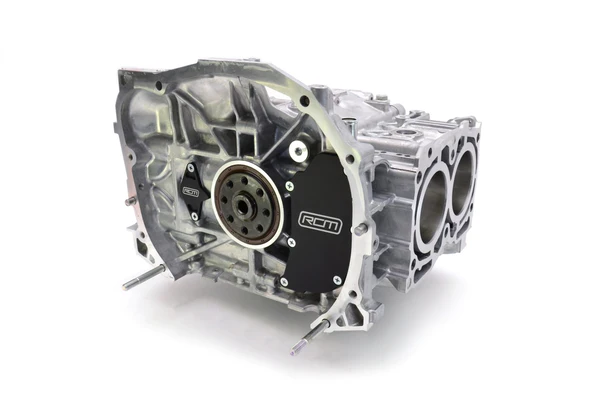

RCM400 2.0L Thick Wall Short Engine

RCM assembled forged EJ20 2.0L short engine built around new Subaru EJ207 thick-walled block halves. Supplier reference: RCM2775.

Build specification

  • New EJ207 2.0L thick-walled block halves
  • RCM / Arrow H-section connecting rods
  • RCM / Omega pistons
  • 2.0L nitrided crankshaft
  • High-performance main and big-end bearings

Preparation and assembly

The block halves are thoroughly cleaned, inspected and measured, then honed to suit the selected pistons. Components are individually selected and checked for a matched assembly before the short engine is hand-built by RCM technicians.

The finished assembly receives an RCM identification badge and a build tag identifying the engine specification, builder and build date.

Supplied unit and fitment

One assembled 2.0L short engine for an EJ20 engine build. This is a short engine, rather than a complete running engine. Confirm the intended heads, ancillaries and full build specification for the vehicle; the supplier’s broad EJ20 application guide does not establish every model, generation, trim or registration year as a direct replacement.

Related options and workshop accessories

RCM450 alternative with RCM 14mm head-stud conversion: choose the short-engine specification required for the build.

Additional information

Weight 60 kg
Dimensions 30 × 25 × 15 cm
