£9,597.99
CREST CNC 6061-T6 billet block for a Subaru EJ25 engine build, with supported Darton sleeves, an ARP case-bolt kit, four-bolt main system and 14mm head-stud threads. Match the full build specification and required finish before ordering.
Typical lead time: 1–3 working days, subject to supplier stock.
Description

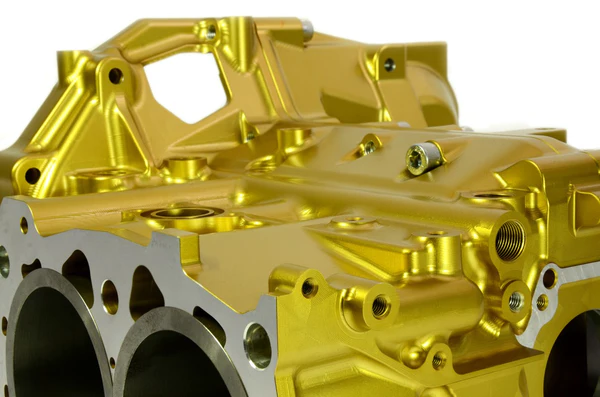

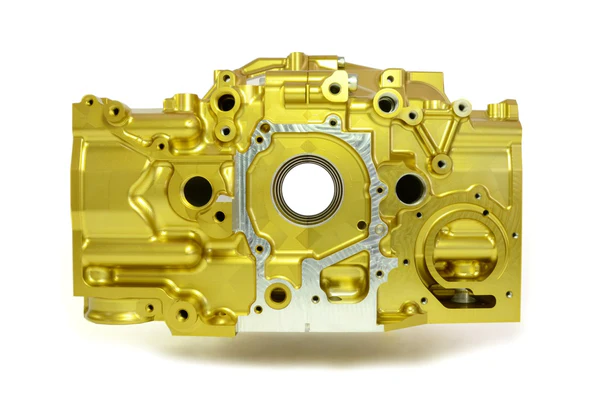

CREST CNC Billet Block for Subaru EJ25
A CREST CNC billet block for Subaru EJ25 engine builds, machined from solid 6061-T6 aluminium. The supplier describes development and testing for applications up to 1,000hp with the appropriate build and supporting modifications; this is a conditional application claim, rather than a power rating for a complete engine.
Construction & features
- Fully supported Darton ductile sleeves.
- ARP block-case bolt kit.
- Four-bolt main-tunnel system.
- Eight block-main dowels, compared with two on the original block.
- Lower-block clearance for stroker applications.
- Precision tunnel boring and hone alignment, with precision-finished decks.
- 14mm head-stud threads and 16.5mm dowels.
Application & build planning
RCM lists this block for Subaru EJ25 applications. Match the actual cylinder heads, rotating assembly, head-stud arrangement, gaskets and intended build with the engine builder. Bore, stroke, machining allowances and a complete model/year/trim/market fitment matrix are not established here.
The current supplier advert has one orderable reference, RCM2978; additional anodised finishes are not offered as verified choices on this page. Confirm the supplied finish before ordering if a particular finish is required.
Identification
Manufacturer: CREST CNC. Supplier reference: RCM2978. Existing MBD listing code: 01492.
Additional information
| Weight | 45 kg |
|---|---|
| Dimensions | 30 × 25 × 15 cm |
