£5,697.99
RCM RCM2777 assembled 2.0L EJ20 short engine with EJ207 thick-walled block halves, H-section rods, Omega pistons and a nitrided crankshaft. Includes the RCM 14mm head-stud conversion; head studs are sold separately.
Typical lead time: 1–3 working days, subject to supplier stock.
Description
RCM450 2.0L Thick Wall Short Engine
RCM assembled forged EJ20 2.0L short engine built around new Subaru EJ207 thick-walled block halves. Supplier reference: RCM2777.
Build specification
- New EJ207 2.0L thick-walled block halves
- RCM / Arrow H-section connecting rods
- RCM / Omega pistons
- 2.0L nitrided crankshaft
- High-performance main and big-end bearings
- RCM 14mm head-stud conversion
Preparation and assembly
The block halves are thoroughly cleaned, inspected and measured, then honed to suit the selected pistons. Components are individually selected and checked for a matched assembly before the short engine is hand-built by RCM technicians.

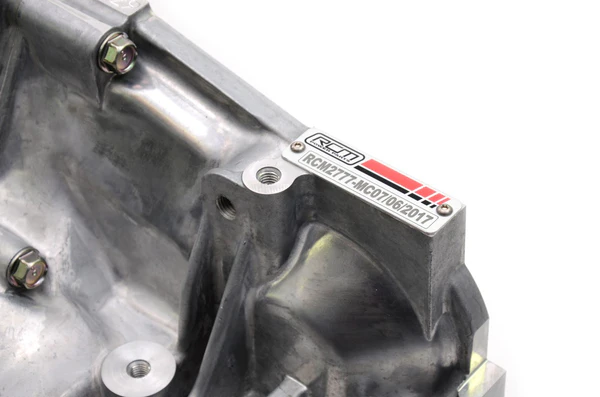

The finished assembly receives an RCM identification badge and a build tag identifying the engine specification, builder and build date.
Supplied unit and fitment
One assembled 2.0L short engine for an EJ20 engine build. This is a short engine, rather than a complete running engine. Confirm the intended heads, ancillaries and full build specification for the vehicle; the supplier’s broad EJ20 application guide does not establish every model, generation, trim or registration year as a direct replacement.

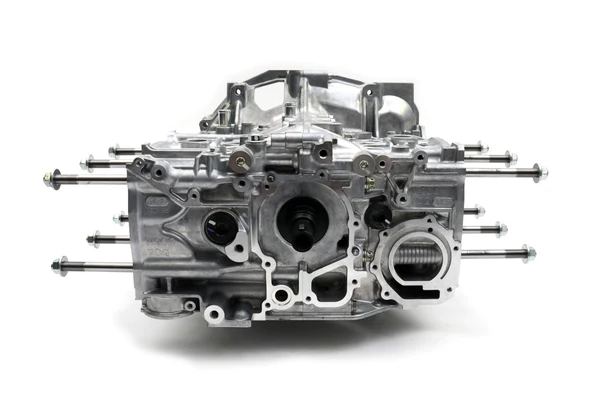

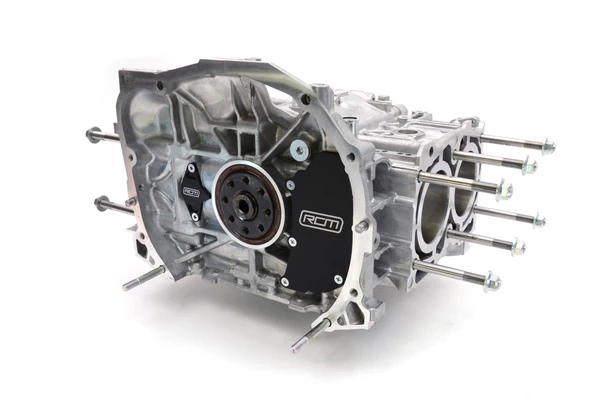

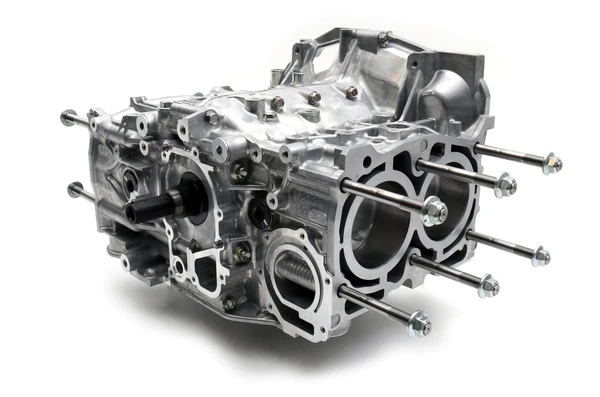

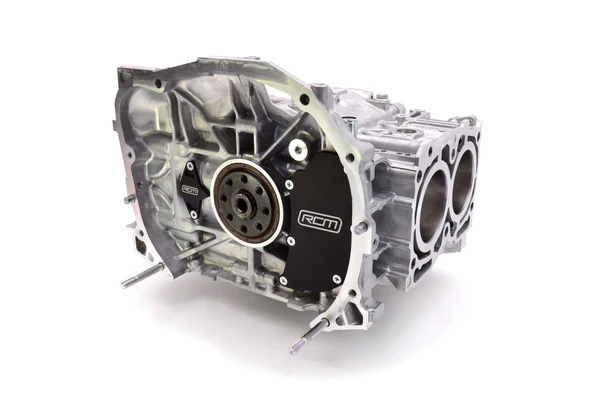

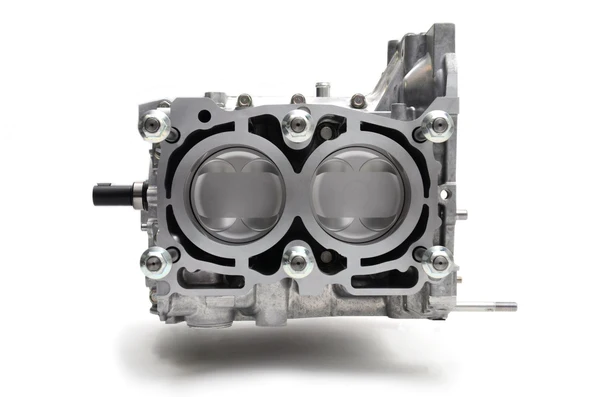

The block has the RCM 14mm head-stud conversion. Head studs shown in the photographs are for illustration and must be purchased separately.
Related options and workshop accessories
RCM400 2.0L thick-wall short-engine specification: choose the short-engine specification required for the build.
Additional information
| Weight | 60 kg |
|---|---|
| Dimensions | 30 × 25 × 15 cm |
