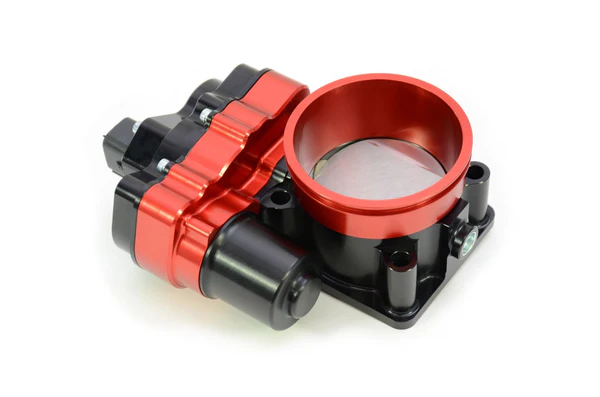

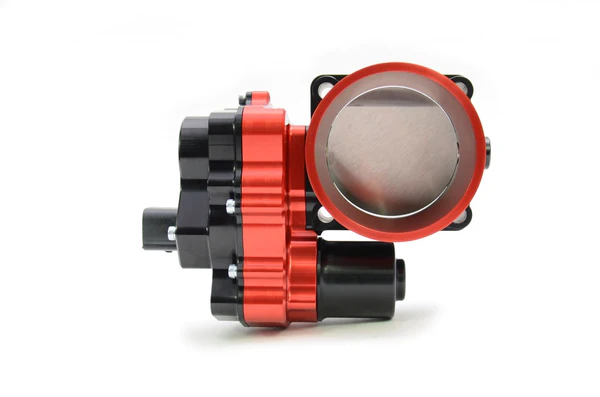

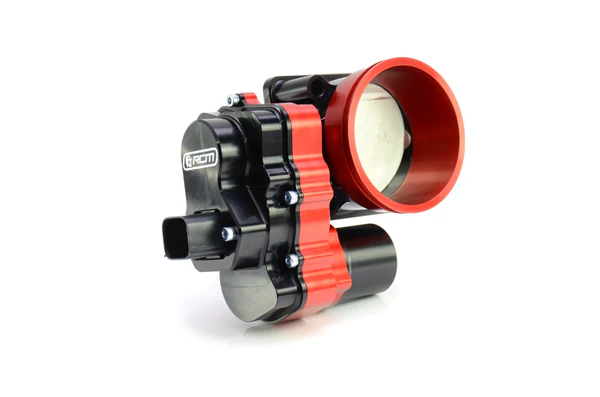

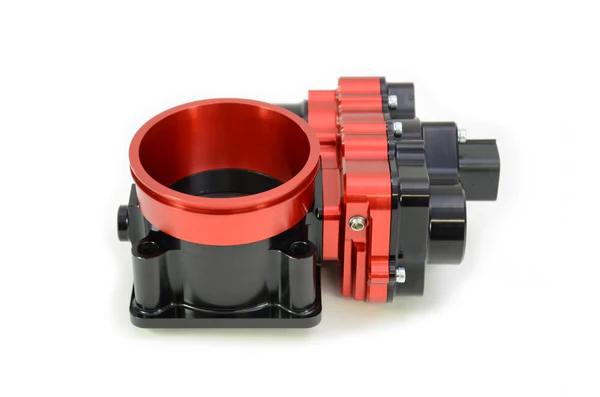

RCM 67mm Electric Throttle – Reversed Manifold

The RCM drive by wire electric throttle body has been designed and engineered specifically for Subaru applications, for vehicles using a reversed inlet manifold configuration.

Manufactured from machined billet aluminum housings, it is fully assembled and ready to bolt directly to your reversed manifold, it is balanced and calibrated to a set idle condition.

Patented shaftless technology, gaining up to 7% more airflow

Failsafe spring return

Operational speed <0.07 Seconds / 60 degrees

Electrical Interface – Molex MX150-L

Hall Effect TPS (dual redundancy)

0.5v to 4.5v Sensor

Additional wiring will need to be assembled to suit your application with the connector supplied

A throttle pedal potentiometer or pedal box will need to be used with this throttle assembly

All Subaru Applications with a reversed inlet manifold
