£6,595.19
RCM EJ20 2.1 billet stroker kit with a 79 mm Arrow crankshaft, Arrow H-section rods, Omega forged pistons, ACL Race bearings and listed short-block seals. Select the supplier’s standard, 0.25 oversize or 0.50 oversize piston option before machining.
Typical lead time: 1–3 working days, subject to supplier stock.
Description

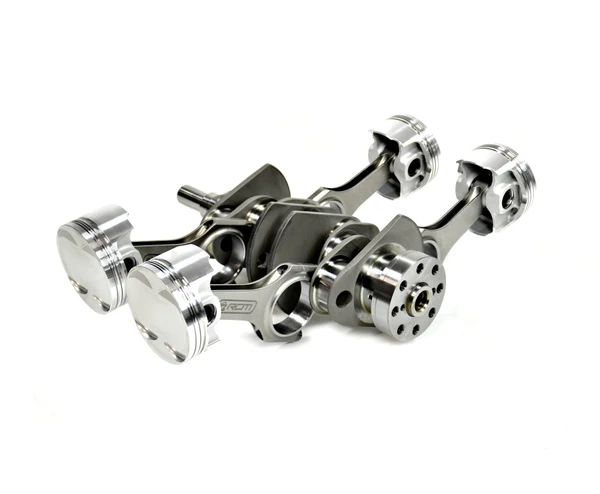

RCM EJ20 2.1 billet stroker kit
This complete component kit combines RCM and Arrow billet engine parts with forged Omega pistons and ACL Race bearings for a 2.1-litre Subaru EJ20 build. Select the supplier-listed piston-size option for the machined block.
Kit contents
- RCM/Arrow 79 mm-stroke billet crankshaft.
- RCM/Arrow H-section connecting-rod set.
- Set of four RCM/Omega 2618A forged pistons with rings, gudgeon pins and circlips.
- ACL Race rear-thrust main-bearing set and big-end-bearing set.
- Genuine Subaru short-block seals and the relevant engine sealer listed by RCM.

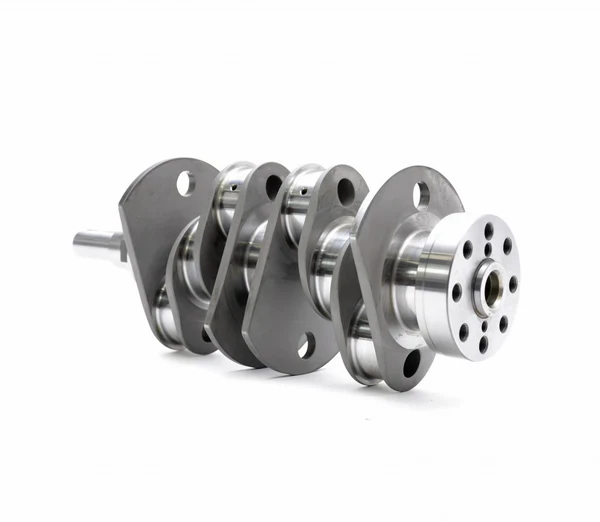

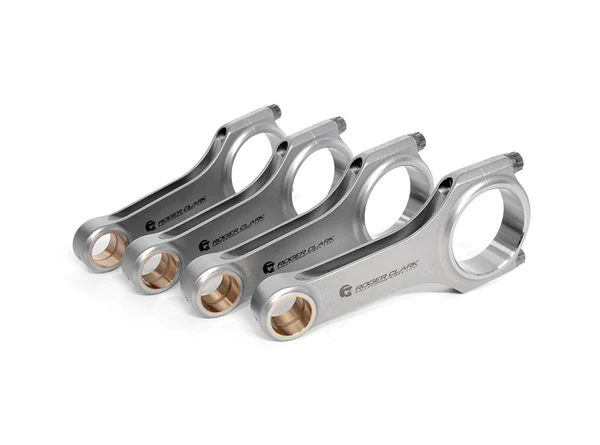

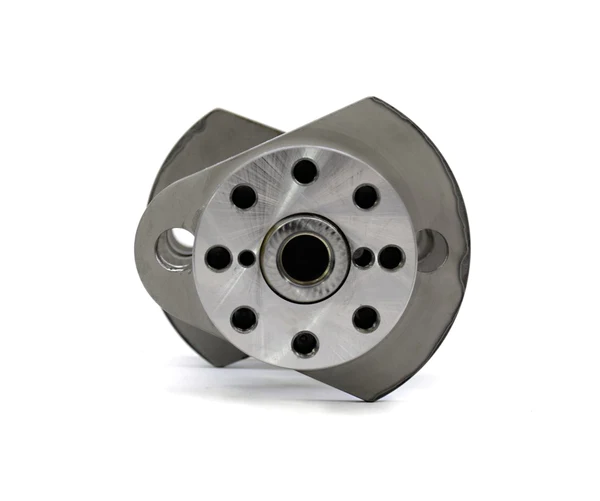

Crankshaft and connecting rods
Arrow manufactures the billet crankshaft and H-section rods from high-grade materials using controlled machining and inspection. RCM describes the rods as EN24 nickel-chrome alloy steel in V condition, ultrasonically tested, crack detected and balanced within one gram.

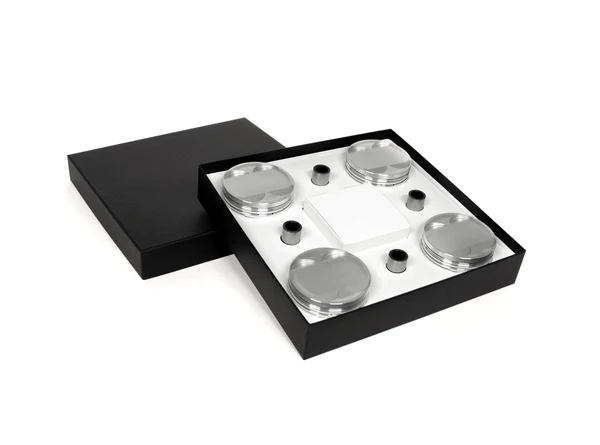

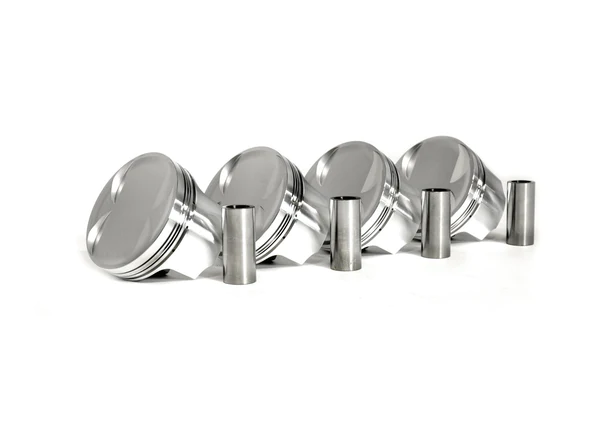

Forged piston set
Omega manufactures the pistons from 2618A alloy. RCM states that the pistons are CNC machined and inspected in controlled conditions, then individually weighed and batched. The selected option identifies the supplier’s standard, 0.25 oversize or 0.50 oversize piston set. RCM does not state an absolute finished bore on this current billet-kit page, so no diameter is inferred here.

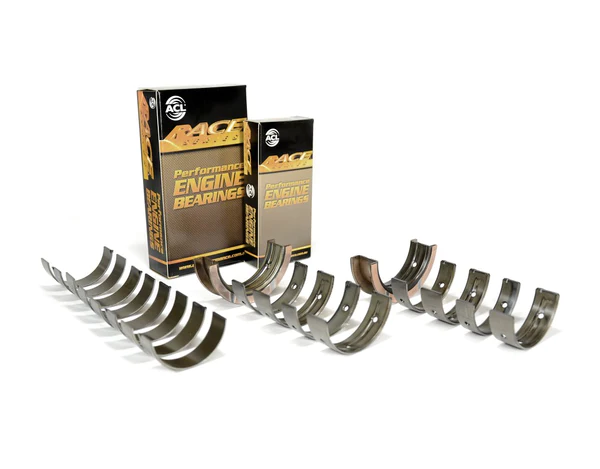

ACL Race bearings
The included rear-thrust ACL Race main and big-end bearing sets use trimetal construction for performance engine builds. Confirm bearing clearances during engine assembly.
Fitment and machining
RCM lists the kit for Subaru EJ20 open-deck, semi-closed-deck and closed-deck blocks. Early closed-deck blocks require a rear-thrust conversion. Professional engine measurement, machining and assembly are required. Select the correct piston option before any cylinder machining and confirm all final clearances with the engine builder.
Buying the correct option
Choose one of the three current supplier-supported piston-size options. Each selection is one complete billet stroker kit with its own RCM manufacturer SKU. The options are not interchangeable once machining has begun.
Additional information
| Weight | 25 kg |
|---|---|
| Dimensions | 30 × 25 × 15 cm |
| Stroker Kit Piston Size | 0.25 Oversize Piston Set, 0.50 Oversize Piston Set, STD Size Piston Set |
