£9,593.19
RCM2789 RCM500 2.35-litre short engine with remanufactured EJ22 closed-deck halves, Arrow rods, Omega pistons and a 79mm nitrided crankshaft. Head studs are separate; confirm the complete build specification.
Typical lead time: 1–3 working days, subject to supplier stock.
Description
RCM500 2.35L Closed Deck Short Engine

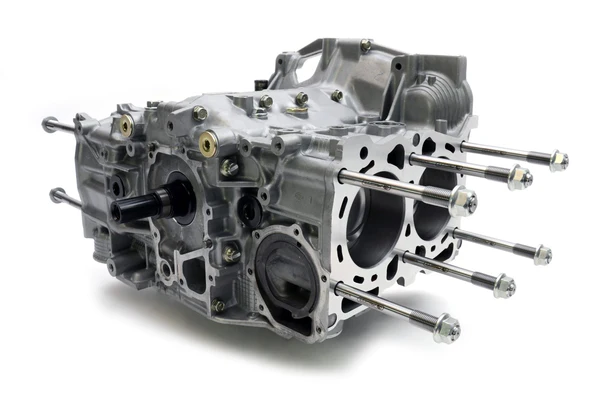

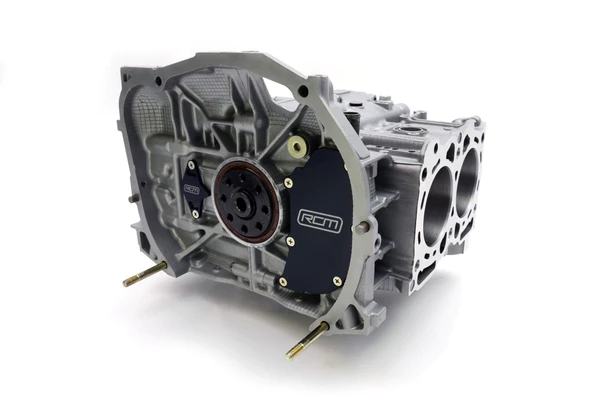

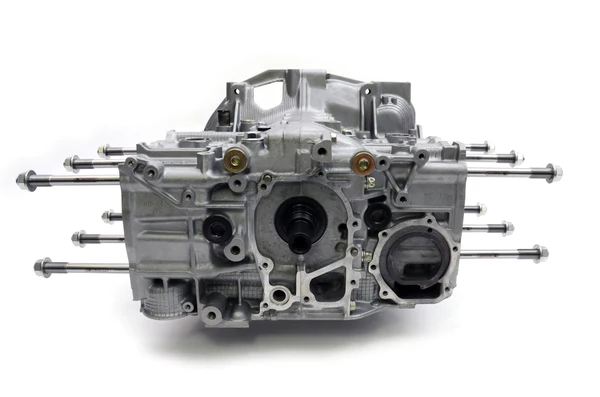

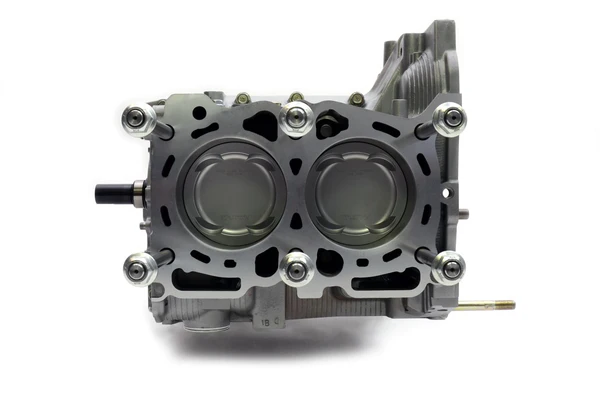

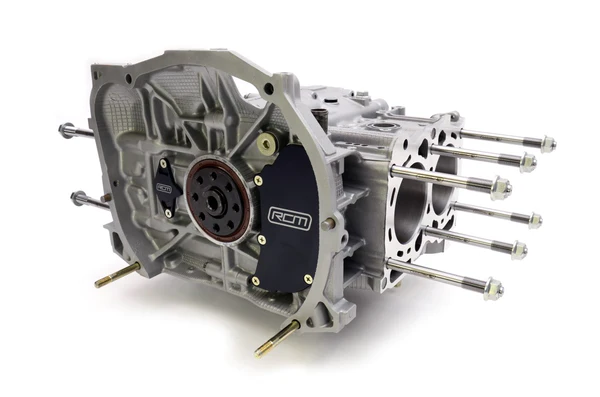

An RCM-assembled 2.35-litre stroker short-engine assembly built around remanufactured EJ22 closed-deck block halves. Supplied as one short engine, rather than a complete engine with cylinder heads and ancillaries.
Technical specification
- Remanufactured EJ22 closed-deck block halves.
- RCM / Arrow H-section connecting rods.
- RCM / Omega pistons.
- 79mm 2.5-litre nitrided crankshaft.
- High-performance main and big-end bearings.
- RCM 14mm stud conversion.
- RCM billet oil separator and gudgeon-pin covers.
Preparation & assembly
The used block halves are inspected, tested and measured before cleaning and machining. Block plugs and seals are renewed, and the block faces and bores are prepared for the selected components. RCM individually checks and matches components before assembly.

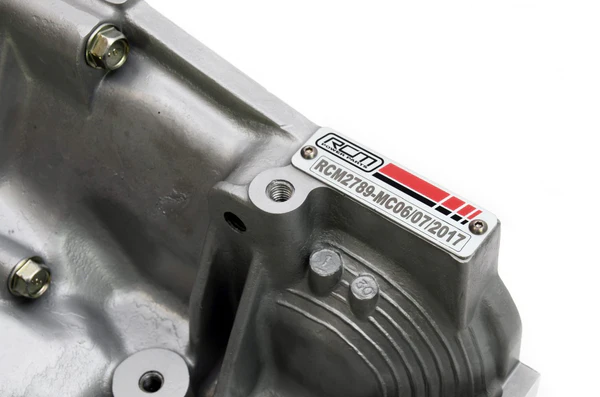

The finished short engine carries an RCM identification badge and a unique build tag recording the specification, builder and build date.
Application & build requirements
For a compatible 2.35-litre Subaru EJ stroker build. Confirm the intended cylinder heads, head-stud specification, compression specification and ancillaries against the actual build before ordering. This listing does not establish a universal model-year or engine-code conversion.
Head studs shown in the photographs are illustrative and must be purchased separately. Cylinder heads and external ancillaries are not supplied as part of this short-engine assembly.
Part identification
RCM reference: RCM2789. RCM500 is the product-range designation, rather than a guaranteed power output for a completed vehicle.
Additional information
| Weight | 60 kg |
|---|---|
| Dimensions | 30 × 25 × 15 cm |
