£141.99
RCM3334 thermostatic oil sandwich plate. Current RCM specification: 70°C thermostat, Dash 8 and Dash 10 fittings, plus stainless-steel adapters.
Designed around the Subaru EJ engine. RCM guide: Subaru turbo applications, 1992–2015; confirm the mounting arrangement and clearance.
Typical lead time: 1–3 working days, subject to supplier stock.
Description

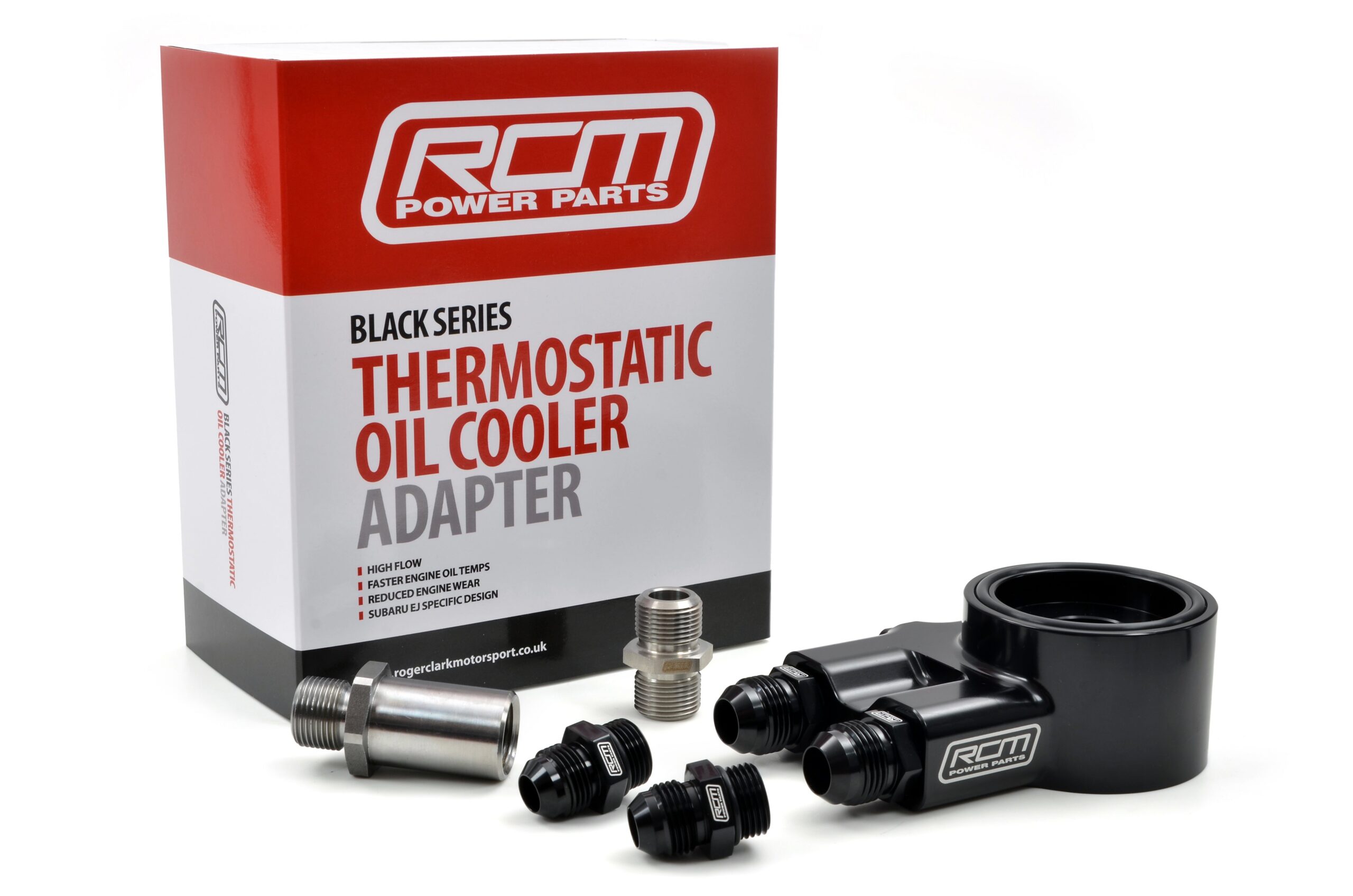

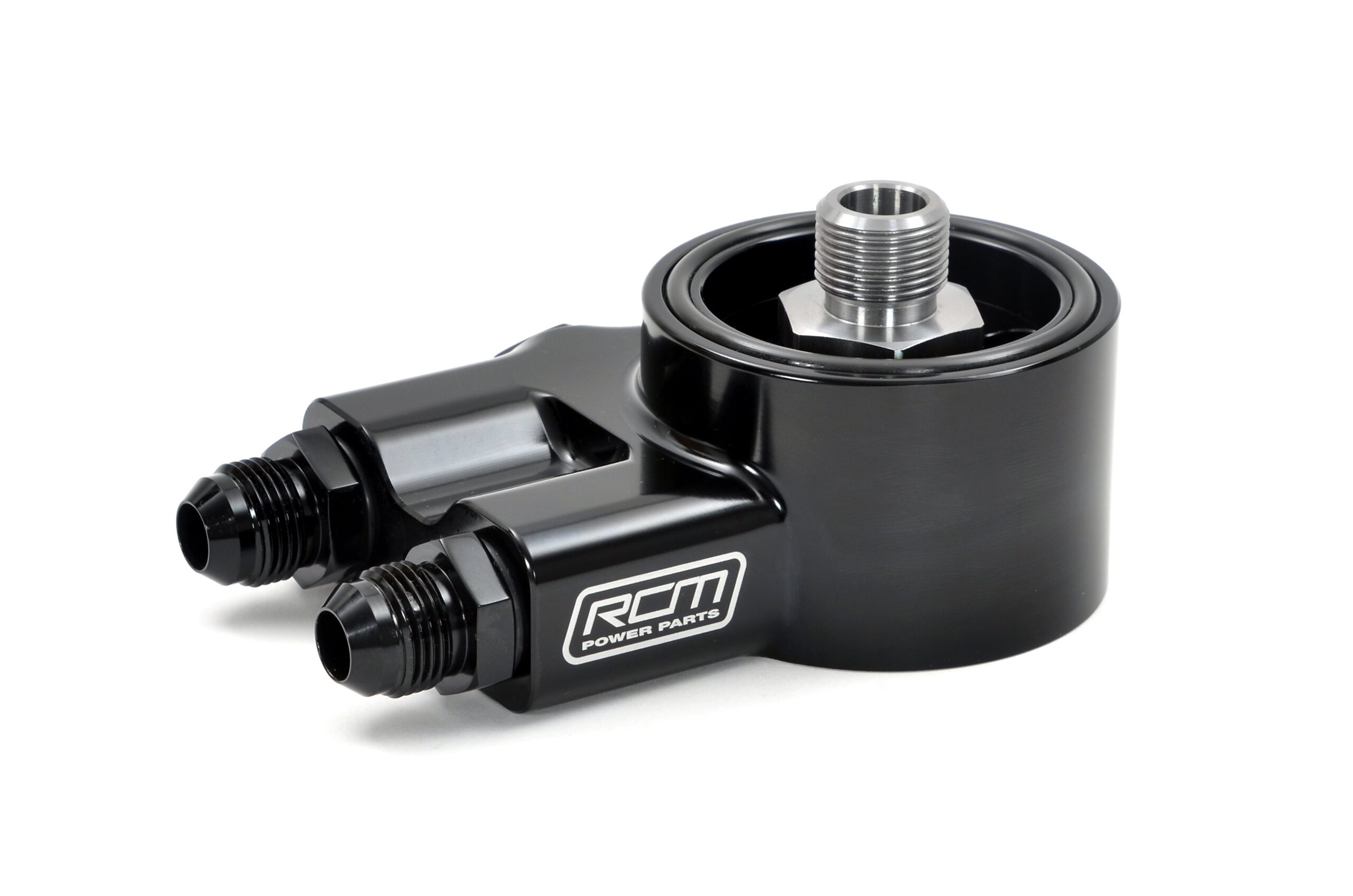

RCM Black Series thermostatic oil sandwich plate
The RCM3334 oil sandwich plate is designed around the Subaru EJ engine, with clearance around the timing-belt covers for routing oil lines.
Features
- Integral thermostat opens at 70°C, according to RCM’s current specification.

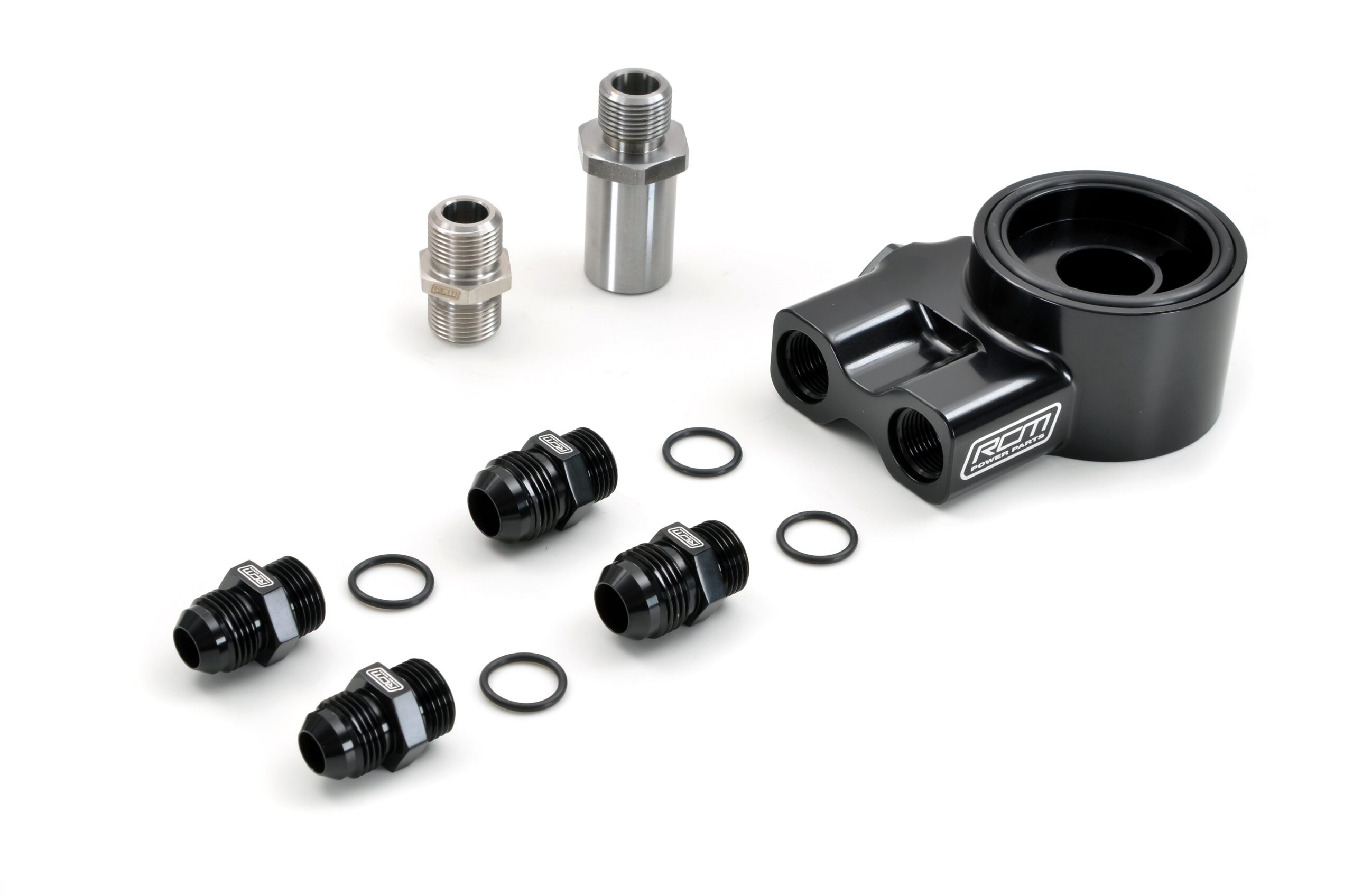

- Supplied with both Dash 8 and Dash 10 fittings.
- Includes the stainless-steel main oil-cooler bolt and cylinder-block male-to-male adapter.
Fitment and installation
RCM’s application guide lists Subaru turbo applications from 1992–2015. Confirm the engine, oil-filter mounting arrangement, hose connections and installation clearance before ordering.

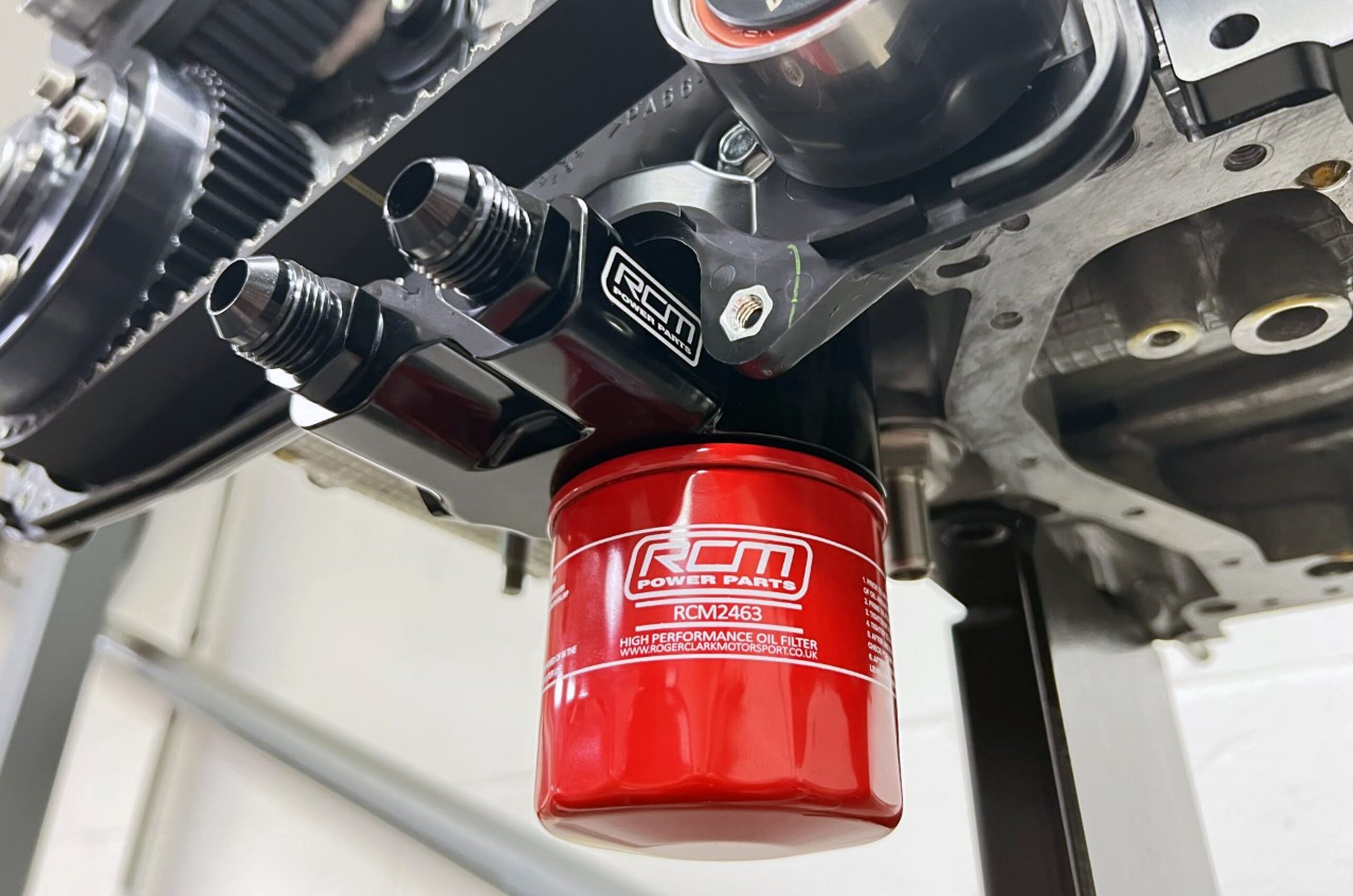

The installed photograph illustrates the position of the plate and oil filter. Match the cooler, hoses and filter arrangement to your build.
Product code: RCM3334.
Angled sandwich plate option
The SPE849 dual-port angled sandwich plate has an 85°C thermostat and two Dash 8 fittings. Compare the specifications and oil-line routing before choosing.
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 30 × 25 × 15 cm |
Brand
Roger Clark Motorsport
