£957.99

RCM/Omega Low X 4032 forged piston set for the Impreza 22B EJ22G, registered 03/1998–08/1998. Choose 0.25 mm or 0.50 mm oversize; supplied as four pistons with rings, pins and circlips.

Non Stock Item – Ordered In
Typical lead time: 1–3 working days, subject to supplier stock.
SKU: N/A Category: Tags: , , , , ,

Description

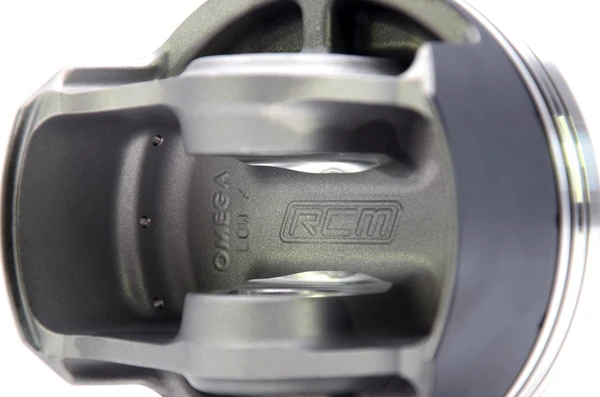

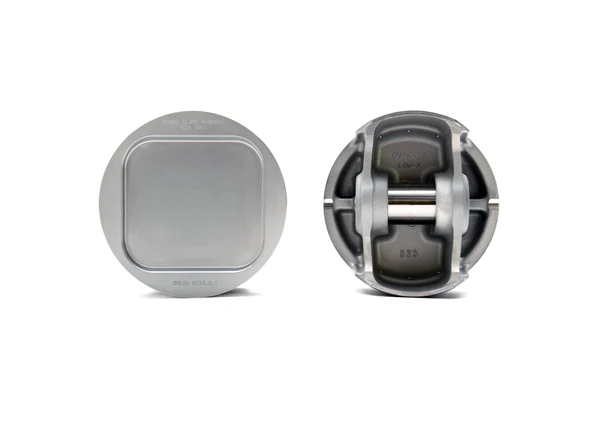

RCM/Omega 22B EJ22G low-expansion forged piston set

This two-option family is for the Subaru Impreza 22B EJ22G registered from March to August 1998. Roger Clark Motorsport also identifies the application as Version 3–4. Select the exact oversize required for the finished engine build.

Choose the bore option

  • 0.25 mm oversize – RCM3062
  • 0.50 mm oversize – RCM3064

The supplier defines these choices by oversize increment. Have the block measured and confirm the required finished bore with the engine builder before machining or ordering.

Contents

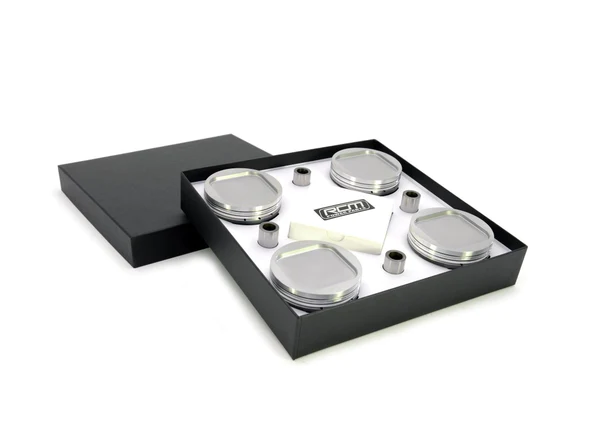

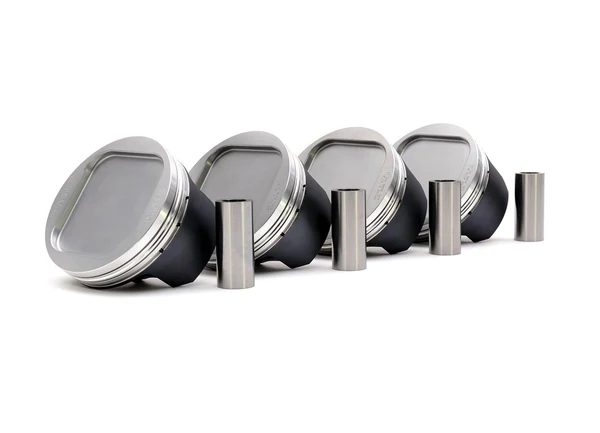

  • Four forged pistons

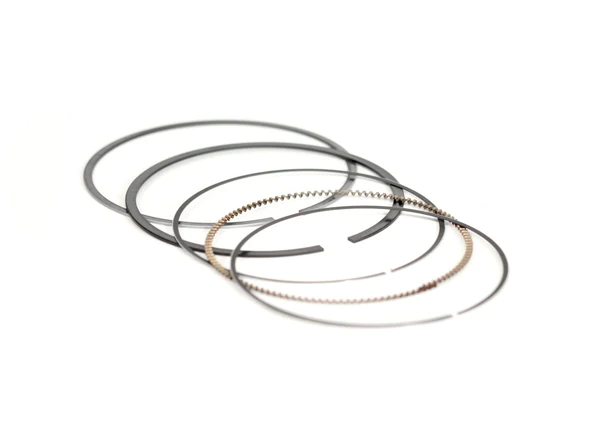

  • Matching piston rings
  • Gudgeon pins
  • Circlips

Specification and application

  • RCM Low X 4032 low-expansion material, as identified in the current supplier description
  • Skirt coating
  • Designed as a standard-replacement piston set for the original EJ22G compression specification
  • Manufactured by Omega for RCM and supplied as a matched four-piston set

This is an engine-build component. Check bore clearance, ring gaps, compression, cylinder condition and the complete build specification before assembly.

Additional information

Weight 3 kg
Dimensions 30 × 25 × 15 cm
Bore option

0.25 mm oversize – RCM3062, 0.50 mm oversize – RCM3064

Engine / application

Subaru Impreza 22B EJ22G, registered 03/1998–08/1998 (RCM also labels V3–V4)

Set contents

Four pistons, piston rings, gudgeon pins and circlips

Material

RCM Low X 4032 low-expansion forged piston material with skirt coating

Brand

Roger Clark Motorsport

Browse Roger Clark Motorsport (RCM) Subaru engine, cooling, performance and workshop products at MB Developments. Check the exact engine, model application and selected kit contents.
