£4,917.99

RCM3175 four-stage Auto Verdi dry sump system for Subaru EJ20, EJ22 and EJ25 builds. Includes the pump, sump pan, drive hardware and Black Series water pump. External oil tank and chassis-specific plumbing are separate.

Non Stock Item – Ordered In
Typical lead time: 1–3 working days, subject to supplier stock.

Description

Four-stage dry sump for Subaru EJ engines

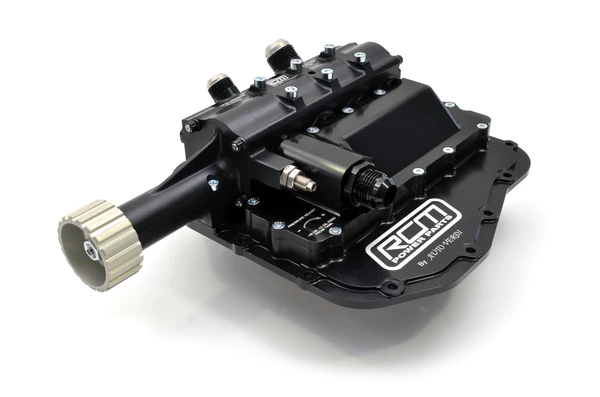

RCM3175 is RCM’s four-stage dry sump system for Subaru EJ-series engines. The Auto Verdi pump uses three scavenge stages to return oil to an external tank and one pressure stage to feed the engine. The system is designed to maintain a more consistent oil supply during hard cornering and braking in track and competition use.

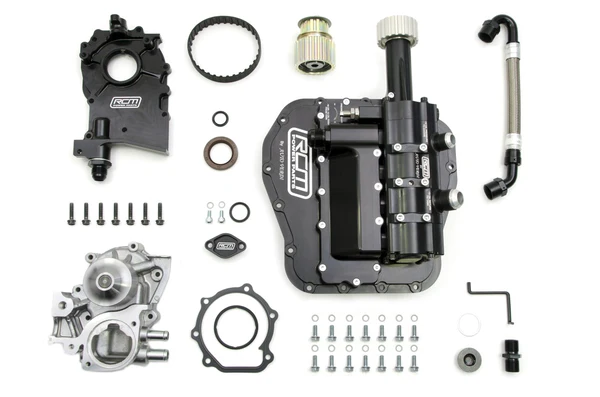

What’s in the kit

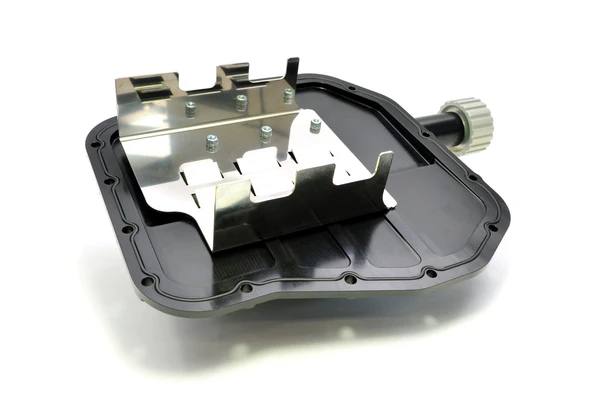

  • Four-stage Auto Verdi oil pump and RCM dry sump pan with scavenge filters and windage tray.

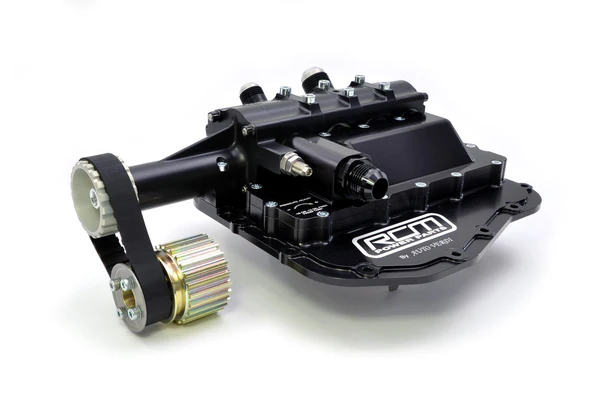

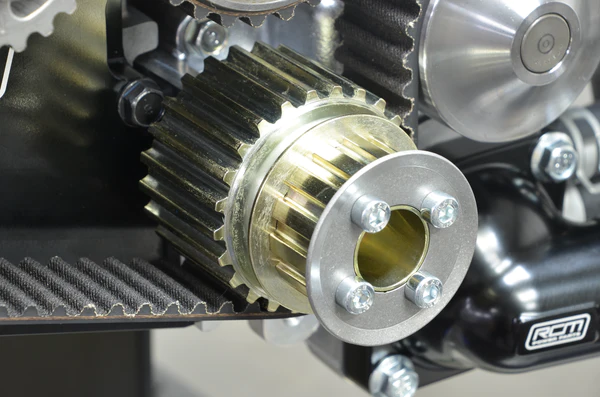

  • Toothed pump drive pulley and belt, oil pressure hose, and billet oil pump delete cover.

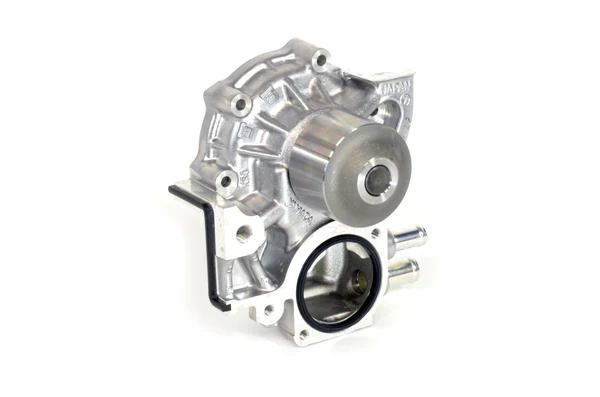

  • RCM3485 Black Series two-port water pump with cast impeller and billet thermostat housing.
  • Oil filter, oil filler blanking hardware, and the specified seals, gaskets and fasteners.

Fitment and installation

For EJ20, EJ22 and EJ25 engine builds. The external oil tank and the chassis-specific tank and line installation kit are separate. RCM points Classic Impreza owners to RCM2670 and New Age 2001–2007 Impreza owners to RCM3300. Check the exact chassis, steering layout and oil-line routing with us before ordering, especially if matching this system to an existing installation.

Professional installation is recommended. Read the RCM/Auto Verdi fitting instructions before planning the build.

Part number: RCM3175.

Additional information

Weight 1 kg
Dimensions 30 × 25 × 15 cm

Brand

Roger Clark Motorsport

Browse Roger Clark Motorsport (RCM) Subaru engine, cooling, performance and workshop products at MB Developments. Check the exact engine, model application and selected kit contents.
