Price range: £369.99 through £498.39

Cosworth Kevlar timing belt, matched timing hardware and your choice of water pump for Impreza WRX/STI V5–V7.

Non Stock Item – Ordered In
Typical lead time: 1–3 working days, subject to supplier stock.

Description

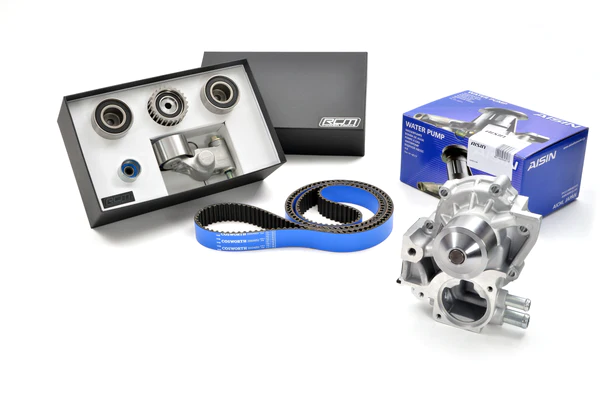

Timing belt and water-pump combo

This RCM Power Parts package combines a Cosworth timing belt with matching timing hardware and your selected water pump. RCM works with OE component partners including NTN, NSK, Koyo and Aisin across its timing-kit range.

RCM describes the Cosworth Kevlar belt as 300% stronger than the original-equipment belt and designed for the stress and heat of high-output or high-revving engines.

Kit contents

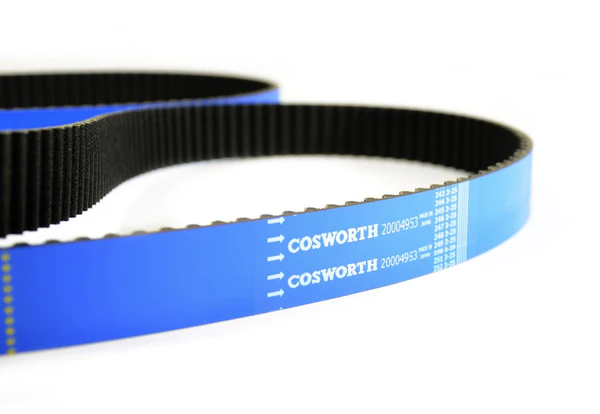

  • One Cosworth timing belt.
  • One timing-belt tensioner.

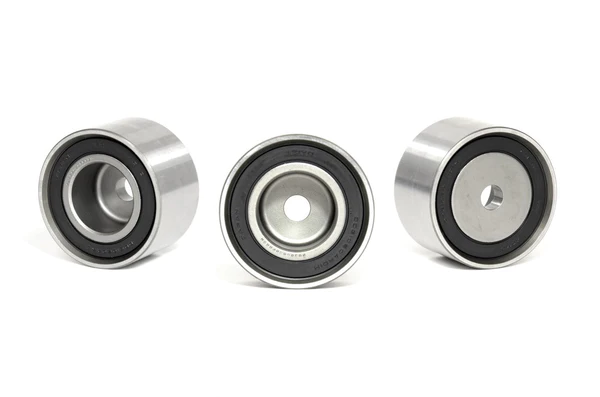

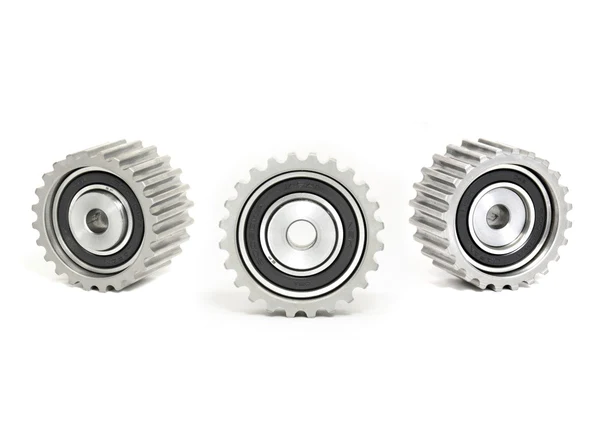

  • One toothed idler, two smooth idlers and one small smooth idler.
  • One selected water pump, water-pump gasket and thermostat seal.

Choose the pump option

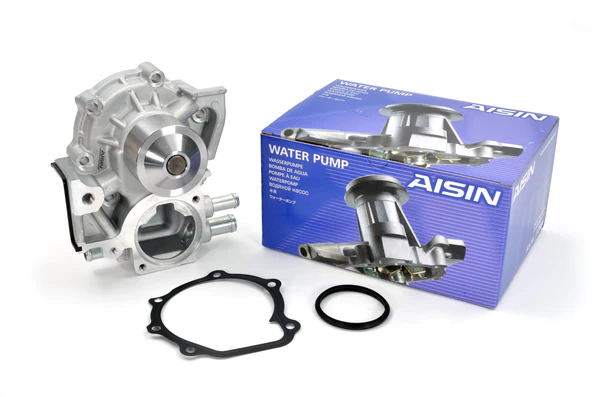

  • SEN1161WP: standard Aisin three-port water pump.

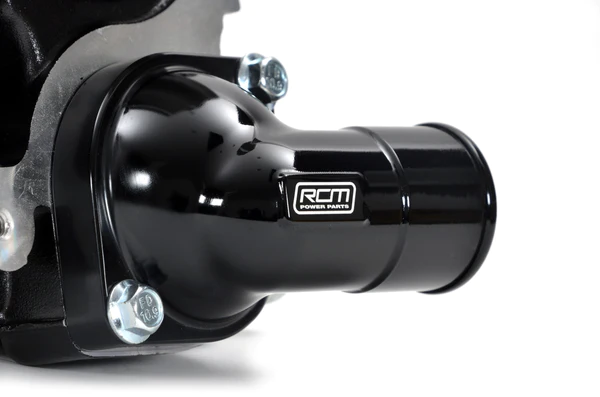

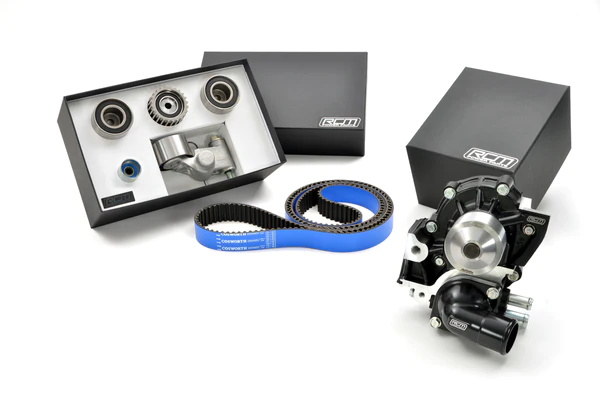

  • SEN1161WPR: RCM Black Series pump and billet thermostat housing.
  • SEN1161WPR7: Black Series pump and billet housing with a 70°C thermostat.

Basket quantity 1 supplies one complete selected kit with one pump. The Black Series pump replaces the Aisin pump; only SEN1161WPR7 explicitly includes the 70°C thermostat. All three choices use the standard timing-belt tensioner.

Fitment and ordering

Subaru Impreza WRX and STI registered September 1998–November 2002, commonly called V5–V7. The supplier family label is 99–02MY EJ20/22/25; model-year labels and registration dates are separate checks.

Confirm the engine, timing hardware and pump connections fitted to your car, particularly after an engine conversion. Gallery component views illustrate the range; the selected option defines the supplied package.

Related timing hardware

For the belt and timing hardware without a water pump, see the Cosworth V5–V7 timing belt kit. Check that separate listing’s supplied specification before choosing.

If a replacement guide is needed, see the genuine Subaru timing-belt guide with two securing bolts and check its application. It is a separate item.

Additional information

Weight 3 kg
Dimensions 30 × 25 × 15 cm
Pump option

Standard Aisin pump, RCM Black Series pump, Black Series + 70°C thermostat

Brand

Roger Clark Motorsport

Browse Roger Clark Motorsport (RCM) Subaru engine, cooling, performance and workshop products at MB Developments. Check the exact engine, model application and selected kit contents.
