£429.99 – £558.39Price range: £429.99 through £558.39
Cosworth-belt timing and water-pump kit for Impreza WRX/STI V1–V2.
Typical lead time: 1–3 working days, subject to supplier stock.
Description
Cosworth timing-belt and water-pump kit
This kit combines a Cosworth Kevlar timing belt with OE-specification timing hardware and your selected water-pump package. The belt is designed for the heat and loads of high-output, high-revving engines. The supplier describes the Cosworth belt as 300% stronger than the original-equipment belt.

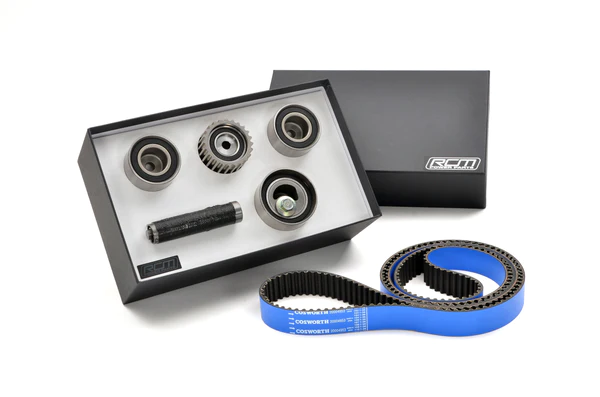

Kit contents

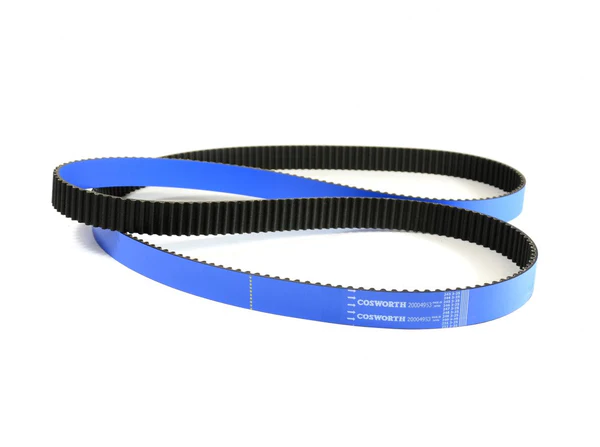

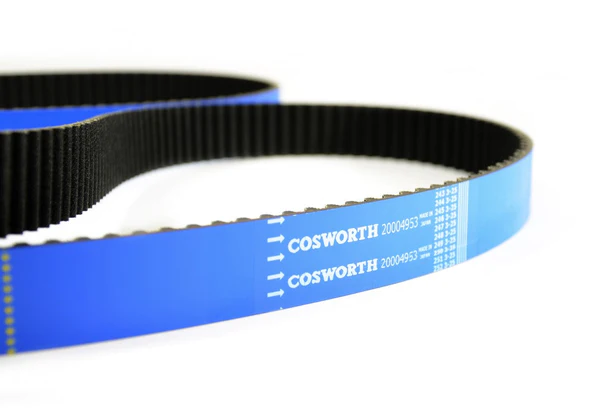

- One Cosworth timing belt.

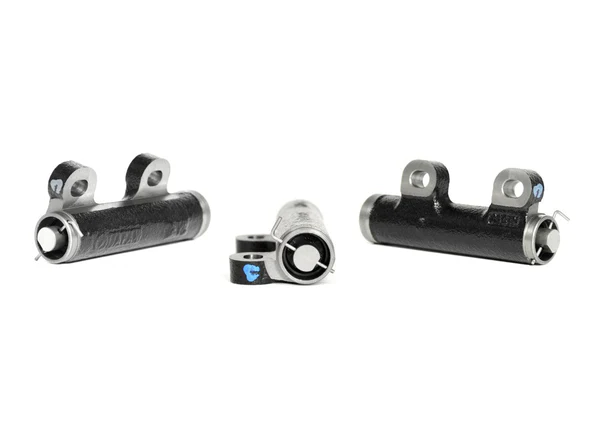

- One early-style timing-belt tensioner.
- One separate tensioner pulley.

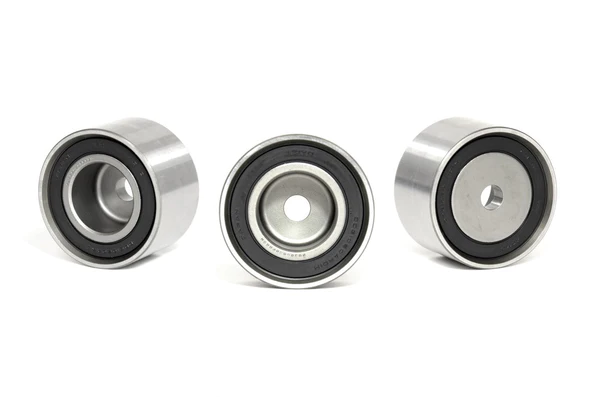

- One toothed idler bearing.
- Two smooth idler bearings.
- One water pump, according to your selection.
- One thermostat seal and one water-pump gasket.
Choose the pump package

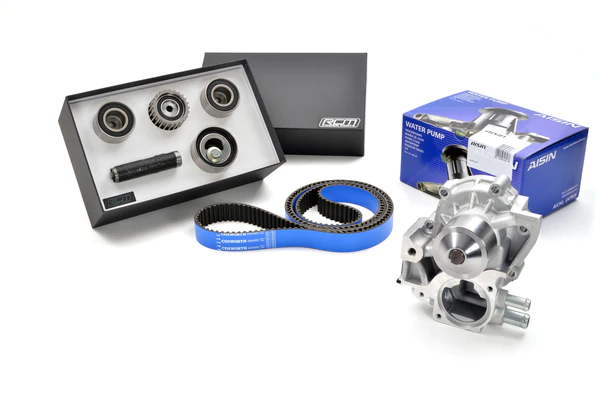

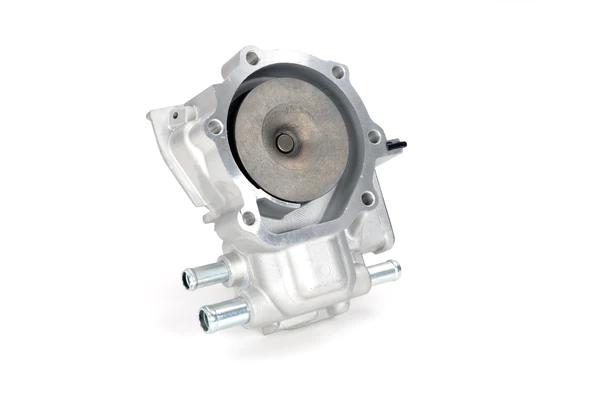

- SEN1159WP: Aisin three-port water pump.

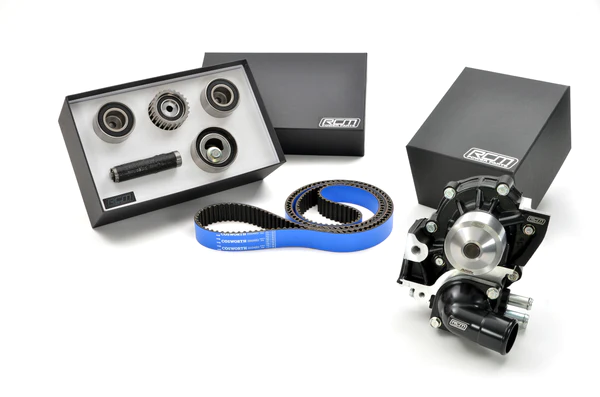

- SEN1159WPR: RCM Black Series water pump with billet thermostat housing.
- SEN1159WPR7: RCM Black Series water pump with billet thermostat housing and a 70°C thermostat.
Basket quantity 1 supplies one complete selected timing-belt and water-pump package. All three options use the early-style tensioner and separate tensioner pulley. The 70°C thermostat is included with SEN1159WPR7.
Fitment and ordering
Subaru Impreza WRX and STI registered from 1992 to 1996, commonly known as V1–V2. The supplier family label is 92–95MY EJ20/22/25; model-year labels and registration dates are separate checks.
Match the actual engine, early timing arrangement and water-pump connections, particularly after an engine conversion.
Related timing choices
Other V1–V2 timing-belt and water-pump kits are available with an HKS belt, a Tomei belt or an STI Sports Parts belt.
For a kit without a water pump, see the V1–V2 timing-belt kit with STI Sports Parts belt.
The genuine Subaru timing-belt guide with two securing bolts is available separately; match the application and oil-pump mounting arrangement.
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 30 × 25 × 15 cm |
| Pump option | Aisin 3-port pump, RCM Black Series + billet housing, RCM Black Series + billet housing + 70°C thermostat |
