Price range: £501.99 through £627.99
HKS-belt timing and water-pump kit for Impreza WRX/STI V1–V2.
Typical lead time: 1–3 working days, subject to supplier stock.
Description

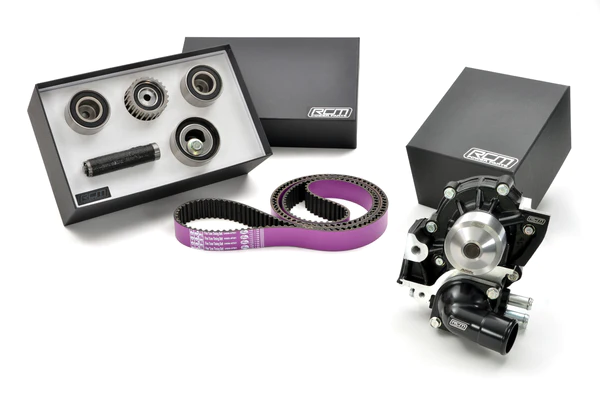

HKS timing-belt and water-pump kit
This kit combines an HKS Kevlar timing belt with OE-specification timing hardware and your selected water-pump package. The HKS belt is designed for the heat and loads of high-output, high-revving engines.

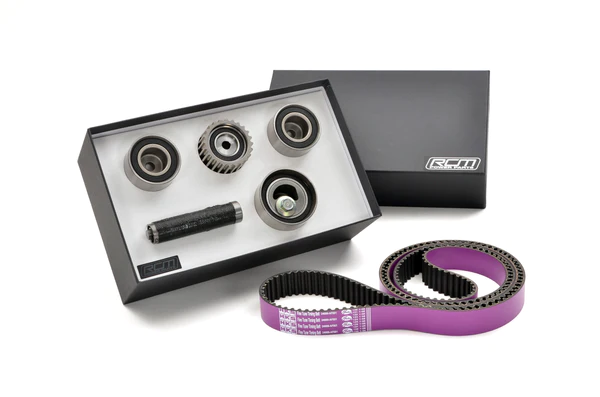

Kit contents

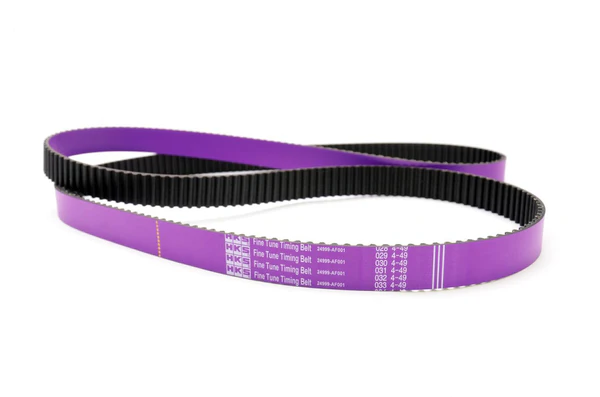

- One HKS timing belt.
- One early-style timing-belt tensioner.
- One separate tensioner pulley.
- One toothed idler bearing.
- Two smooth idler bearings.
- One water pump, according to your selection.
- One thermostat seal and one water-pump gasket.
Choose the pump package
- RCM2654WP: Aisin three-port water pump.
- RCM2654WPR: RCM Black Series water pump with billet thermostat housing.
- RCM2654WPR7: RCM Black Series water pump with billet thermostat housing and a 70°C thermostat.
Basket quantity 1 supplies one complete selected timing-belt and water-pump package. All three options use the early-style tensioner and separate tensioner pulley. The 70°C thermostat is included with RCM2654WPR7.
Fitment and ordering
Subaru Impreza WRX and STI registered from 1992 to 1996, commonly known as V1–V2. The supplier family label is 92–95MY EJ20/22/25; model-year labels and registration dates are separate checks.
Match the actual engine, early timing arrangement and water-pump connections, particularly after an engine conversion.
Related timing choices
The V1–V2 timing-belt and water-pump kit with Tomei belt is another separate belt-brand option.
The V1–V2 timing-belt and water-pump kit with STI Sports Parts belt is a separate belt-brand alternative.
For a kit without a water pump, see the V1–V2 timing-belt kit with STI Sports Parts belt.
The genuine Subaru timing-belt guide with two securing bolts is available separately; match the application and oil-pump mounting arrangement.
Additional information
| Weight | 3 kg |
|---|---|
| Dimensions | 30 × 25 × 15 cm |
| Pump option | Aisin 3-port pump, RCM Black Series + billet housing, RCM Black Series + billet housing + 70°C thermostat |
