Process West Black Verticooler Kit – VA WRX 2015–2021

Description

Process West Black Verticooler Kit – VA WRX 2015–2021

A black slant-mount intercooler system for the Subaru VA WRX, 2015–2021. This is the PWTMIC14B Verticooler, not a front-mounted intercooler or a kit for the earlier WRX or Forester.

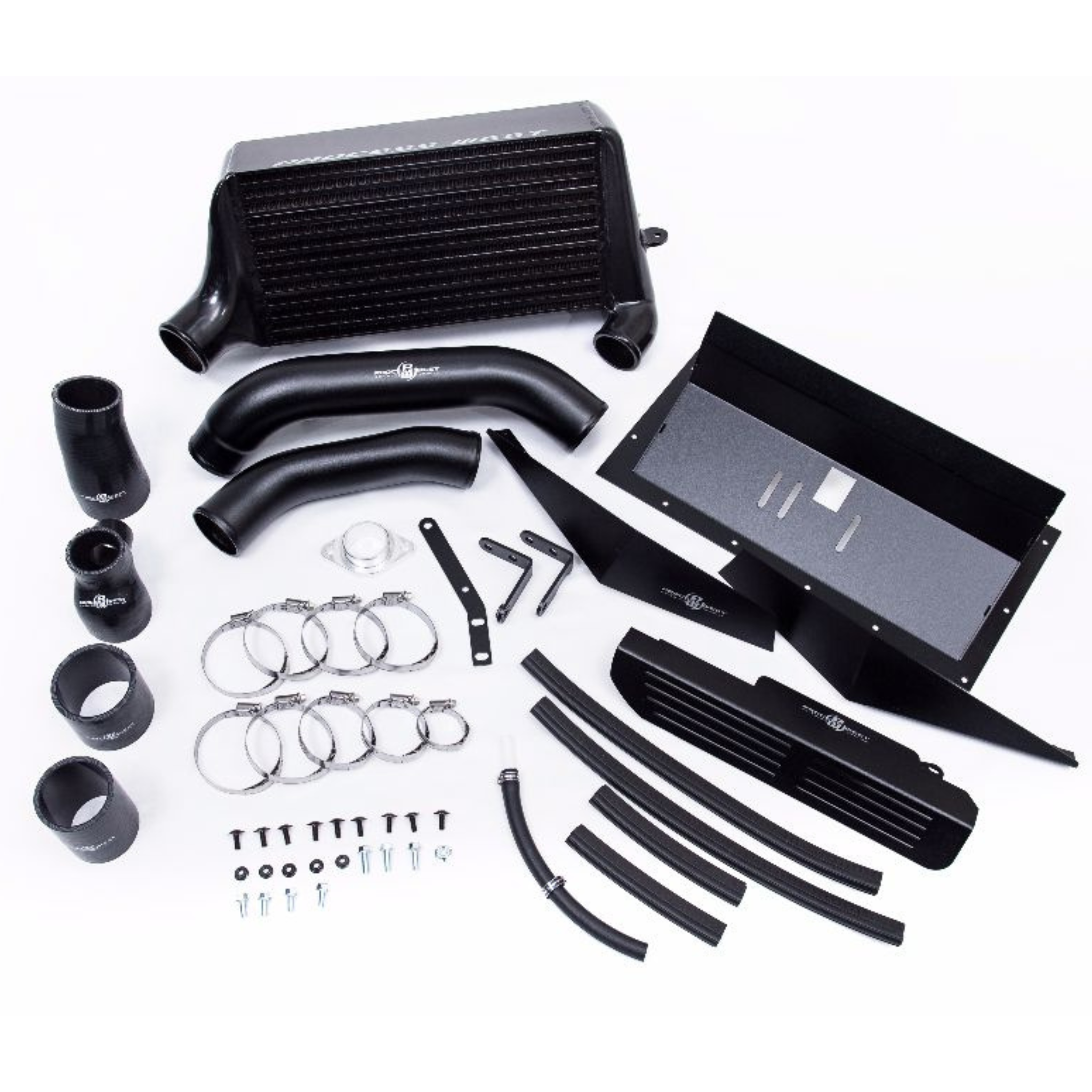

Features and contents

• 400 × 205 × 120mm intercooler core, as specified by Process West
• Application-specific under-bonnet duct and scoop wings
• Silicone hoses, aluminium charge pipes, turbo-outlet flange and fitting hardware
• Engine pulley garnish

Fitment

• Subaru WRX, VA: 2015–2021
• FA20 application described by Process West; not the STI kit

Installation and options

Confirm the turbo-outlet arrangement and transmission before ordering. The manufacturer’s guide uses different manual/CVT mounting hardware and includes a CVT supplement; confirm the required supplementary parts for the supplied kit. Right- and left-hand-drive hose routing differs. A tube-style turbo outlet requires the appropriate separate hose.

For a conventional flat top-mount alternative, view the black PWTMIC16B Khanacooler. Choose one intercooler system and confirm its installation requirements.

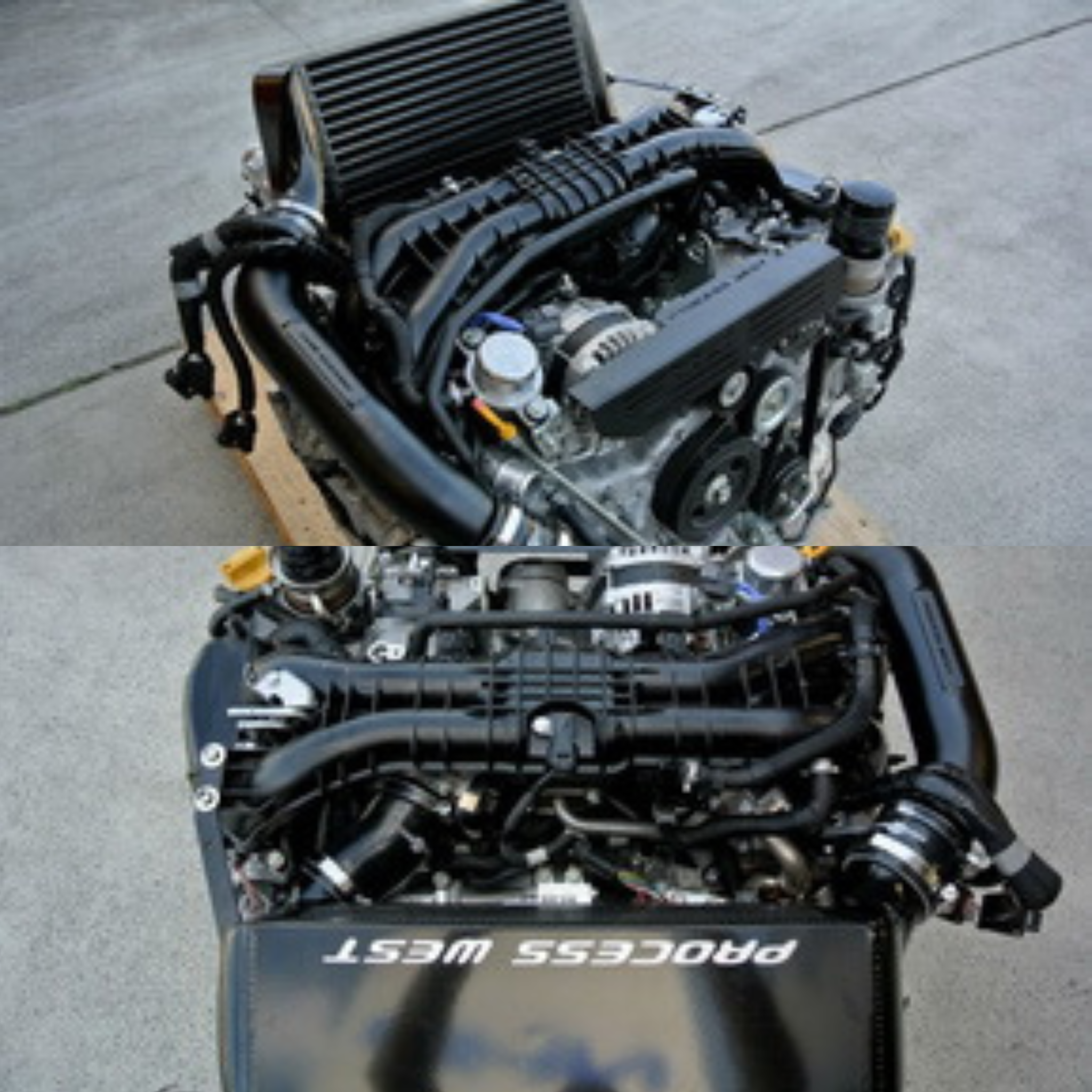

Process West designs these systems to improve charge-air cooling and flow. Installation photographs are illustrative; engines, vehicles and other components shown are not included.

Process West part number: PWTMIC14B.
