Price range: £352.00 through £777.99

Choose your actual manifold configuration, then rails only or a matching full kit. Each choice shows its RCM part number, price and picture. Confirm injector fit and installed hardware before ordering.

Non Stock Item – Ordered In
Typical lead time: 1–3 working days, subject to supplier stock.

Description

RCM Classic Subaru top-feed fuel rail conversions

Build the conversion around the inlet manifold actually fitted to your engine. Choose V1/V2, V3/V4 or V5/V6, then select rails only or the matching full kit. Each combination has its own RCM part number; these manifold-specific versions are not interchangeable.

  • Parallel-feed layout for a planned performance fuel system.
  • Black-anodised T6061 aluminium rails with the appropriate mounting hardware.
  • Choose a rail pair or the matching preassembled fuel-line kit.
  • Exact manufacturer part number, price and picture shown after selection.

Choose your package

  • Rails only: the manifold-specific rail pair with the mounting brackets, stainless-steel fittings, screws and rubber O-rings specified by RCM. Fuel hoses, regulator and injectors are separate.
  • Full kit – standard turbo: the matching rail and mounting package, preassembled Goodridge 200-series -6 braided nitrile hoses with reusable swept-alloy fittings, Y-piece and RCM performance fuel pressure regulator.
  • Full kit – rotated turbo: the corresponding rail, hose and regulator package for the specified RCM rotated-turbo layout. This does not include a turbo conversion.

Fitment and injector selection

The manifold version and turbo arrangement define the choice. A vehicle’s year or badge alone does not prove fitment, especially after an engine or inlet-manifold swap. Confirm injector body length, O-ring seats, rail/manifold interfaces and hose connections for the actual build before ordering. The selected option’s description retains its particular injector requirements; do not assume all top-feed injectors fit every conversion.

RCM2884, the V1/V2 rotated-turbo kit, specifically calls for standard Version 5 or suitable uprated Version 5 Phase 2 type injectors. Confirm these requirements against your installed hardware. The standard and rotated kits are different configurations, rather than an option to route any kit either way.

What the photographs show

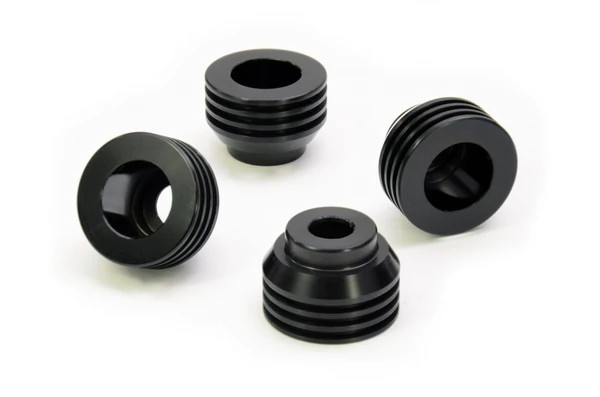

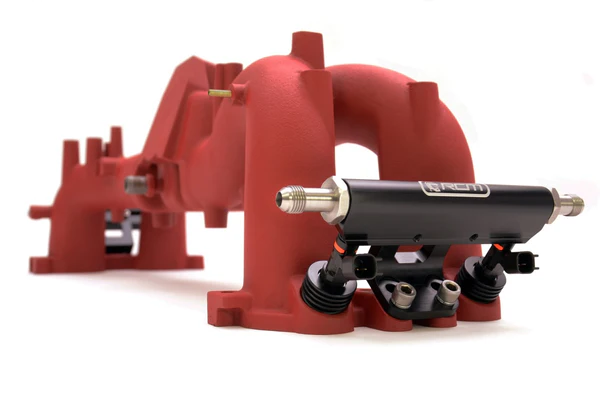

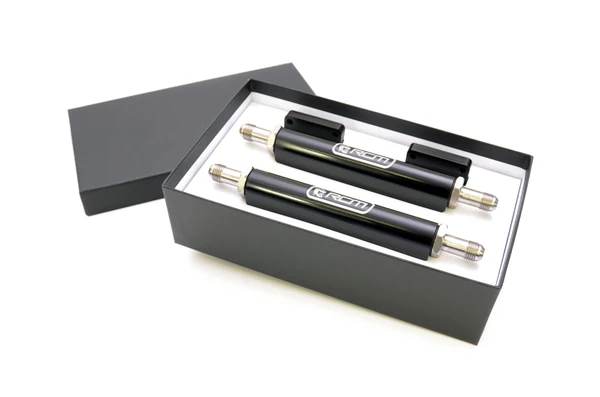

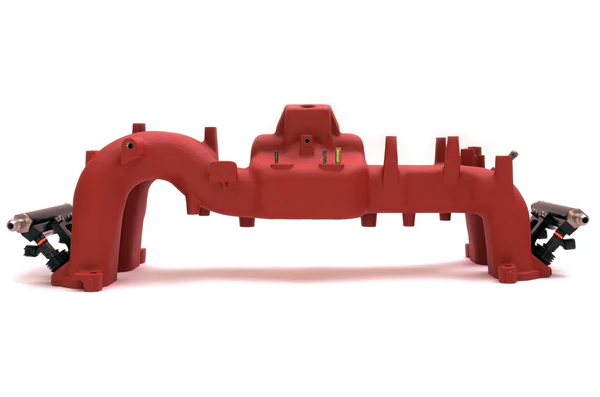

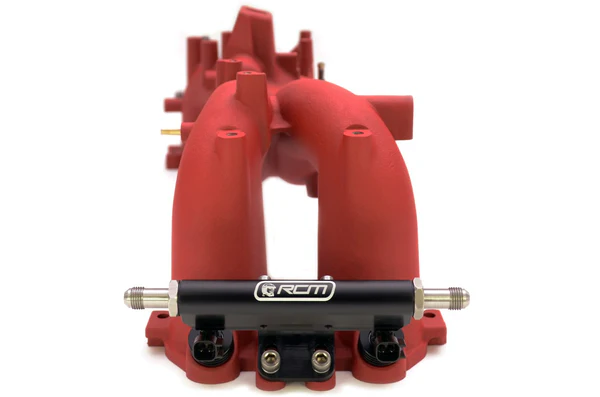

RCM’s photographs illustrate the rail kits and their installation. The red inlet manifold, injectors and other engine components shown are not included. Select the exact manufacturer part number and review the details displayed for your chosen combination.

Installation and calibration

Professional installation is recommended. Plan the complete fuel supply and return, set the required pressure, pressure-test the system and check carefully for leaks before use. The included performance regulator has a manufacturer adjustment range of 35–90psi at atmospheric reference, vacuum/boost reference and a 1/8-inch NPT gauge port; a gauge and fuel pump are not included. Arrange appropriate ECU calibration after fitting. Contact MB Developments for help choosing a configuration, installation or custom mapping.

Additional information

Weight 1 kg
Dimensions 30 × 25 × 15 cm
Manifold configuration

V1/V2 inlet manifold, V3/V4 inlet manifold, V5/V6 inlet manifold

Package

Rails only, Full kit – standard turbo, Full kit – rotated turbo

Brand

Roger Clark Motorsport
