£352.00

RCM2636 conversion rail kit for the V1/V2 inlet manifold and compatible performance top-feed injectors. Includes rail pair, fittings, brackets, screws and O-rings; injectors, lines and regulator are separate.

Non Stock Item – Ordered In
Typical lead time: 1–3 working days, subject to supplier stock.

Description

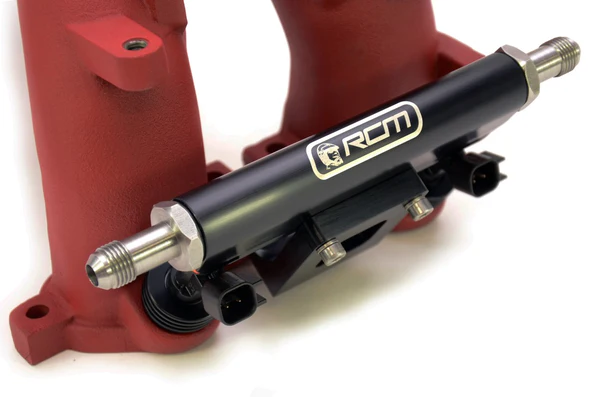

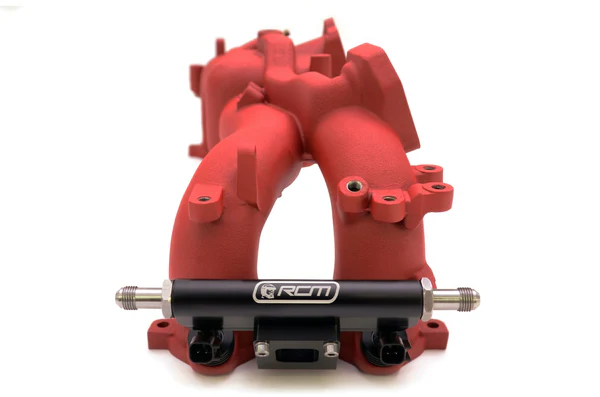

RCM Top-Feed Conversion Rails for V1/V2 Inlet Manifolds

RCM2636 converts the earlier V1/V2 Subaru inlet-manifold arrangement to compatible performance top-feed injectors. Select it by the manifold fitted to the engine, including any changes made during an engine build.

Contents & features

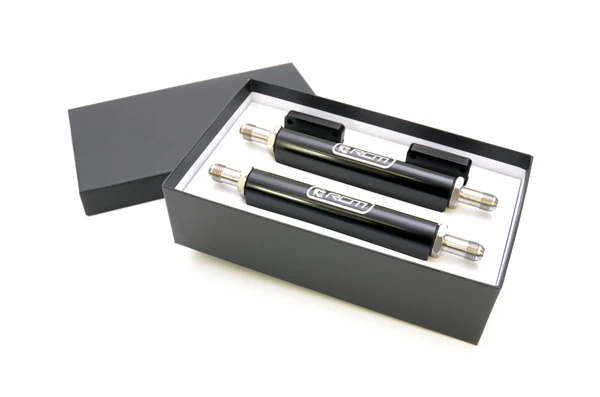

  • One rail kit with a left/right rail pair.
  • T6061 aluminium extrusion with a black anodised finish.
  • Stainless-steel -6 shouldered male fittings for connection to compatible braided fuel lines.

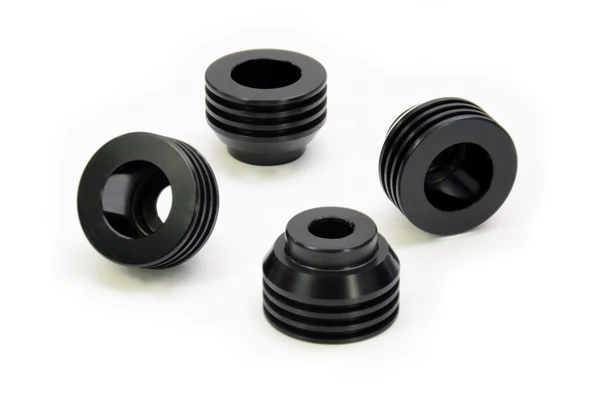

  • Required mounting brackets, stainless-steel hex screws and rubber O-rings, as listed by RCM.

Application & installation

For the V1/V2 inlet manifold using suitable performance top-feed injectors. Confirm injector body length, O-ring seats, rail/manifold interfaces and hose connections for the actual build before ordering.

This rail conversion does not include injectors, a fuel-line kit or a pressure regulator. Those components must be selected to suit the installation. Fuel-system changes require leak and pressure checks and appropriate ECU calibration.

Part identification

RCM product reference: RCM2636. This is a manifold-specific kit, not proof that all three conversion-rail kits are interchangeable. Supplier rail-pair photography illustrates the product; confirm the selected manifold-specific fittings.

Other inlet-manifold versions

Different manifold arrangements use different kits: RCM2637-1; RCM2637-2. Select the actual manifold version; these links do not establish interchangeability.

Additional information

Weight 1 kg
Dimensions 30 × 25 × 15 cm

Brand

Roger Clark Motorsport

Browse Roger Clark Motorsport (RCM) Subaru engine, cooling, performance and workshop products at MB Developments. Check the exact engine, model application and selected kit contents.
