£352.00
RCM1763 billet side-feed fuel rail pair for the specified Impreza V1–V2 arrangement. Check manifold, brackets and injector type; lines not included.
Typical lead time: 1–3 working days, subject to supplier stock.
Description

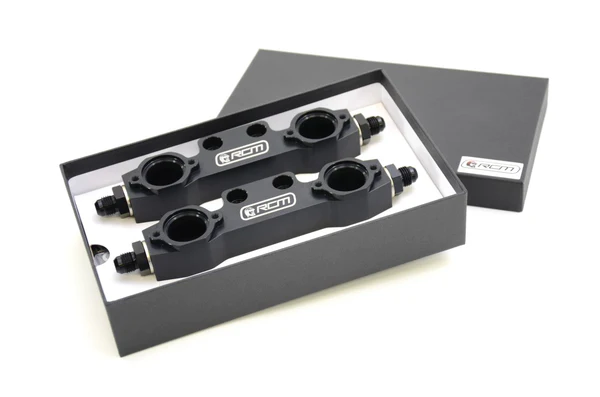

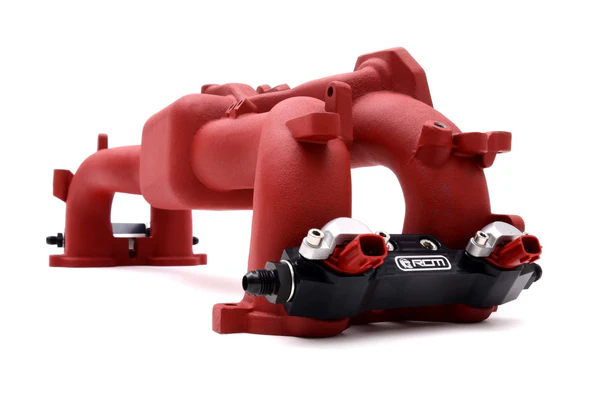

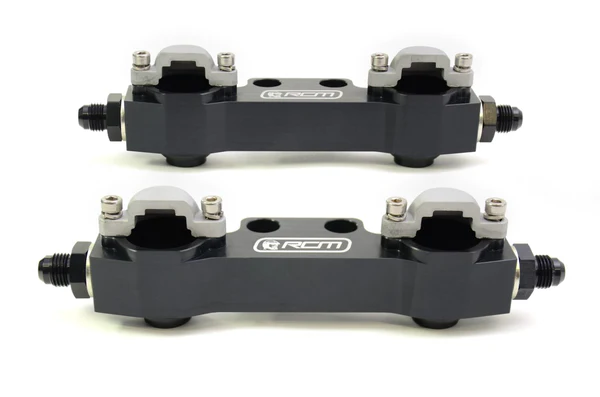

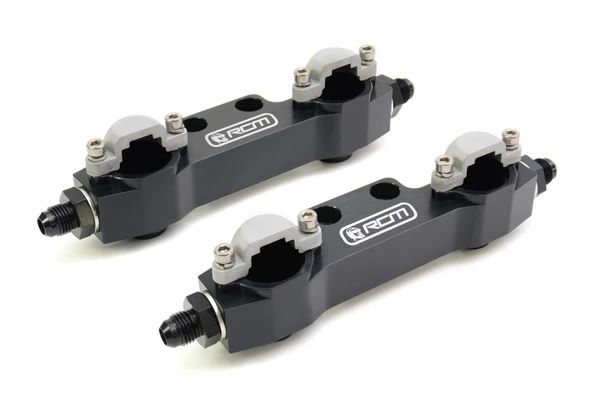

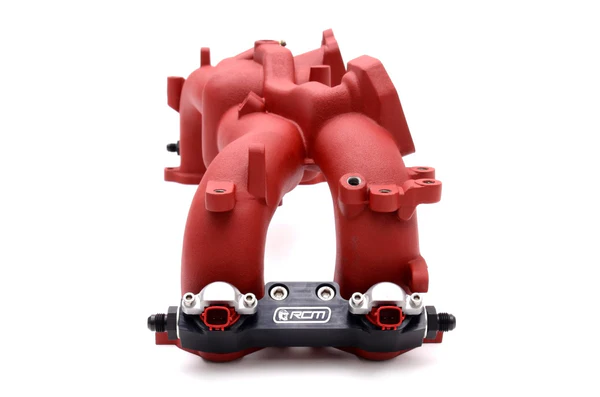

RCM side-feed parallel fuel rail pair
Two billet fuel rails for the Impreza V1–V2 arrangement identified by RCM. Confirm the actual manifold, mounting brackets and injector type before ordering.

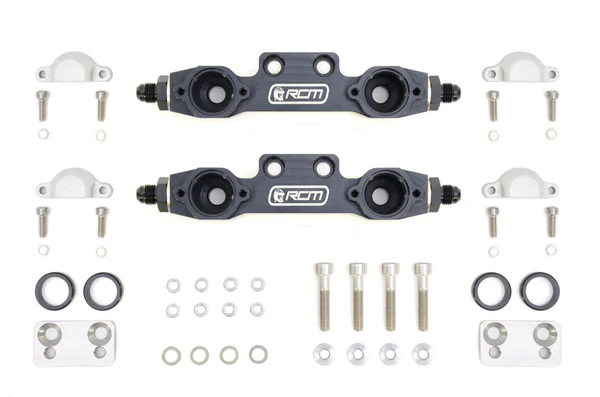

Contents and construction
- Manufacturer part number: RCM1763.
- T6061 billet aluminium rails with black anodised finish.
- CNC-machined aluminium mounting brackets, fastening hardware and four injector caps with cap fasteners.
- Anodised steel male fittings at the rail ends, with 15mm shoulder and -6 thread.
- Four nitrile O-rings for the rail-end fittings.
Injector and vehicle compatibility
RCM explicitly requires standard or uprated Version 5 Phase 2-type side-feed injectors for these V1–V2 rails. Do not assume the original early injectors are compatible.
The version designation does not establish every market, engine swap or modified manifold. Match the chassis/applied model and actual rail mounting arrangement.
Installation
This rail pair is not a complete fuel-line or regulator kit. Injectors, braided fuel lines and a fuel pressure regulator are not listed as included. Professional installation is recommended; confirm line connections and routing, set the appropriate pressure, leak-test the system and have injector/fuel calibration checked for the completed setup.
