£777.99
RCM2880 side-feed fuel rail, line and performance-regulator kit for the specified Impreza V3–V4 arrangement. Requires compatible V5/Phase 2 injectors.
Typical lead time: 1–3 working days, subject to supplier stock.
Description

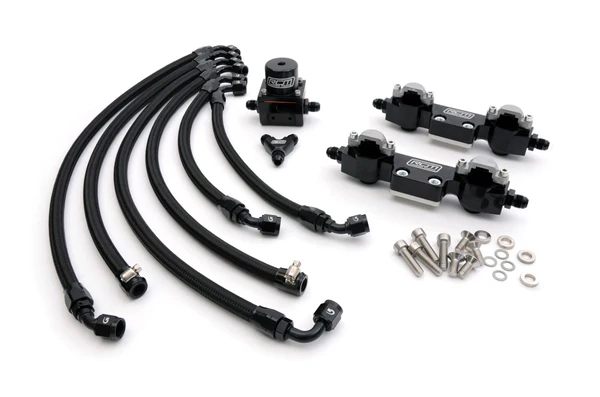

RCM side-feed parallel fuel rail kit

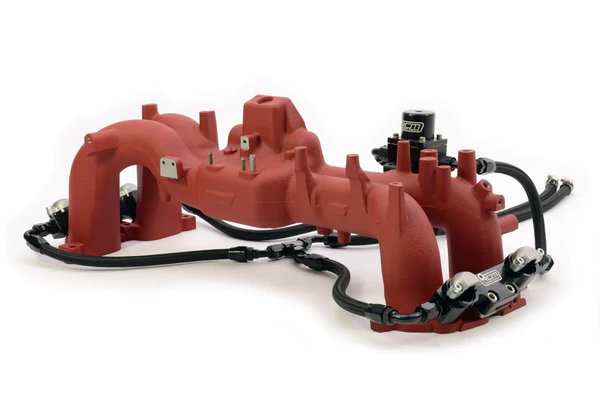

A combined fuel-rail, line and performance-regulator package for the Impreza V3–V4 arrangement identified by RCM. Match the actual manifold, brackets and injector type before ordering.
Contents and construction

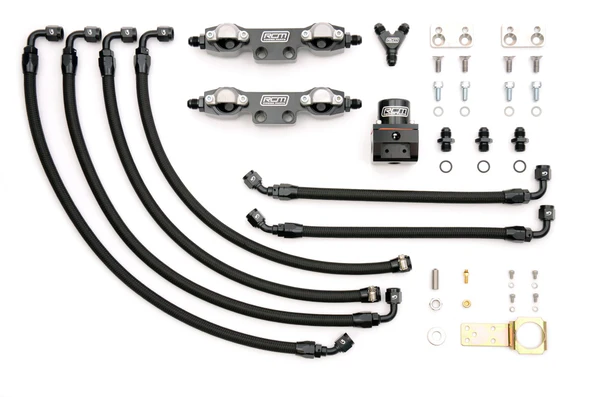

- Manufacturer part number: RCM2880.
- Two T6061 billet aluminium fuel rails with black anodised finish.
- CNC-machined mounting brackets, injector caps, fastening hardware and four nitrile rail-end O-rings.
- Anodised steel male rail-end fittings with 15mm shoulder and -6 thread.

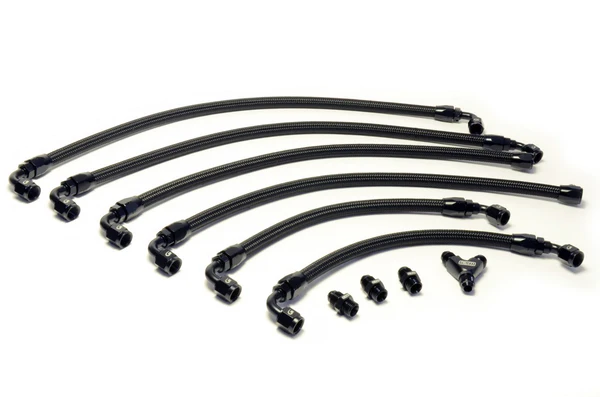

- Preassembled Goodridge 200-series -6 braided nitrile hoses with reusable swept-alloy fittings and hose-end finishers.
- RCM performance fuel pressure regulator and fuel-line Y-piece.
Injector compatibility
RCM specifies standard Version 5 or uprated Version 5 Phase 2-type side-feed injectors for this kit. Do not assume the original early injectors fit. Injectors and a fuel pressure gauge are not listed as included.
Regulator and installation

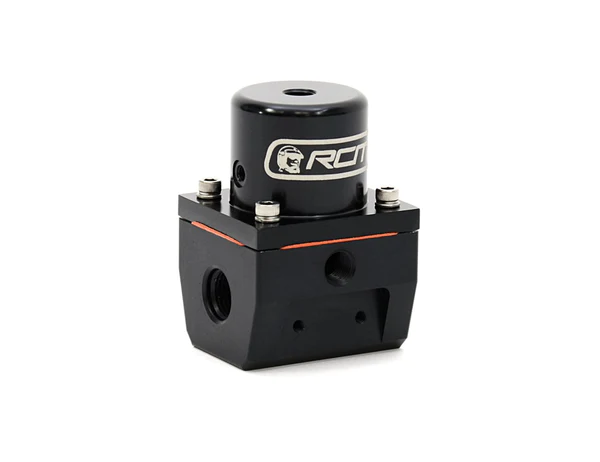

The regulator adjustment range is 35–90psi at atmospheric reference. It has two AN-6 O-ring inlet/outlet ports, an AN-6 O-ring return, vacuum/boost reference connection and a 1/8-inch NPT gauge port. The manufacturer states a 3.0 GPM maximum relief-flow specification; this is not a complete-vehicle power guarantee.
Professional installation is recommended. Confirm the chassis/applied model, actual rail mounting and hose routing. Set fuel pressure for the fitted injectors, pressure-test the completed system and inspect for leaks. RCM recommends ECU remapping after installation.
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 30 × 25 × 15 cm |
