£10,197.99
RCM600 2.35L Closed Deck Block Short Engine: an assembled 2.35-litre EJ22 stroker short engine with H-section rods, Omega pistons and an RCM/Arrow billet 79mm crankshaft.
RCM 14mm head-stud conversion; Head studs are sold separately. Confirm your build specification before ordering.
Typical lead time: 1–3 working days, subject to supplier stock.
Description
RCM600 2.35L Closed Deck Block Short Engine
An RCM-assembled 2.35-litre EJ22 stroker short engine, supplied as one short-engine assembly. This specification uses remanufactured EJ22 closed-deck block halves.
Technical specification
- EJ22 Closed Deck Block Halves (remanufactured)
- RCM / Arrow H Section Con Rod
- RCM / Omega Pistons
- RCM / Arrow Billet 79mm 2.5ltr Crankshaft
- High Performance Main / Big End Bearings
- RCM 14mm Stud Conversion

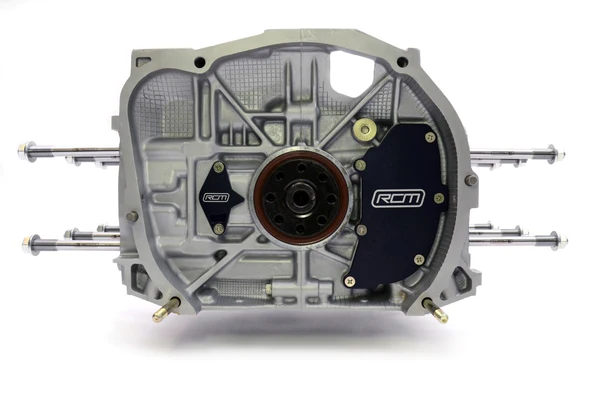

- RCM Billet Oil Separator and Gudgeon Pin Covers
Preparation and assembly
RCM selects used closed-deck blocks and inspects, tests and measures them before deep cleaning. The bungs and plugs are replaced with zinc-coated replacements and new aluminium seals. RCM billet aluminium oil separator and gudgeon pin covers replace the standard covers.
The blocks are converted for a rear-thrust bearing and RCM 14mm head studs. The block faces are skimmed flat, then the bores are rebored and honed to match the selected pistons. Components are individually selected, checked and matched before assembly by RCM technicians.

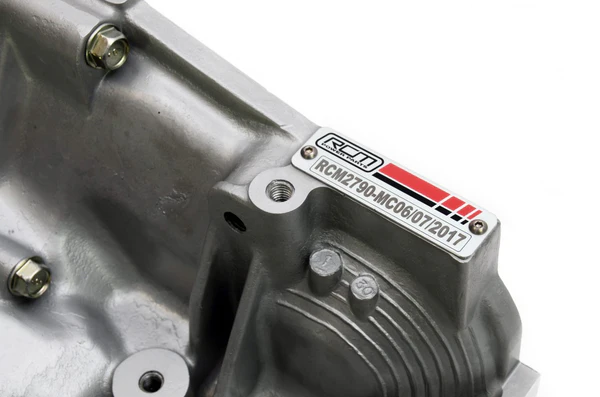

The finished assembly carries an RCM identification badge. RCM’s current build description also specifies a unique build tag recording the specification, builder and build date.
Application and build requirements
For 2.35-litre EJ22 stroker builds. Confirm the cylinder heads, head-stud specification, ancillaries and intended build specification before ordering.
Head studs shown in the photographs are illustrative and must be purchased separately. This is a short-engine assembly, rather than a complete engine with cylinder heads and ancillaries.
Compare specifications and workshop accessories
RCM700 2.35L Closed Deck Block Short Engine provides another 2.35-litre EJ22 short-engine specification to compare. It is a separate product; choose the specification to suit your build.
RCM reference: RCM2790.
Additional information
| Weight | 60 kg |
|---|---|
| Dimensions | 30 × 25 × 15 cm |
