£716.80
RCM/Omega 2618A forged EJ20 piston set for Impreza WRX/STI V5–V6 (1999–2000) and WRX V7–V8 (2001–2004). Choose 92.00, 92.25 or 92.50 mm; each option is a four-piston set with rings, pins and circlips.
Typical lead time: 1–3 working days, subject to supplier stock.
Description
RCM/Omega forged pistons for EJ20 V5–V8 applications
This exact RCM2229, RCM2230 and RCM2231 piston family is listed by RCM for two model groups: Subaru Impreza WRX and STI V5–V6 EJ20 (1999–2000), and Subaru Impreza WRX V7–V8 EJ20 (2001–2004). RCM uses the same manufacturer SKU for each matching bore on both supplier application pages, so the physical bore-size choices are presented together here.
This is RCM’s model-specific EJ20 piston family. It is separate from RCM’s dedicated 2.1 stroker piston products. No stroker compatibility, piston-bowl volume or compression ratio is inferred for these choices.
Supplied set
- Four forged pistons.
- Piston rings, gudgeon pins and circlips.
Bore-size options
- 92.00 mm standard bore — RCM2229.
- 92.25 mm oversize — RCM2230.
- 92.50 mm oversize — RCM2231.

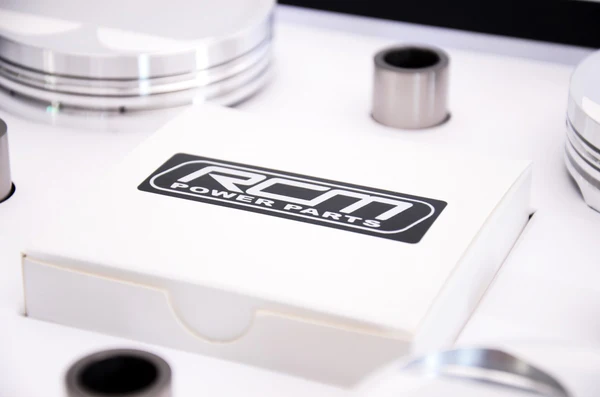

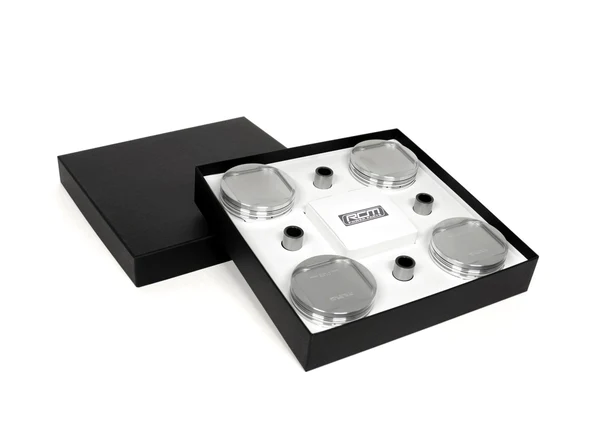

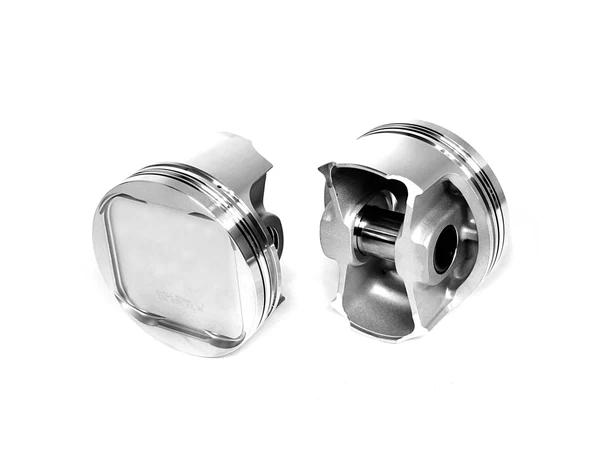

The selected option supplies one four-piston set in that bore size. The gallery shows genuine supplier photographs for this exact three-SKU piston family; bore size is defined by the selected option.
Construction and manufacturing
RCM specifies 2618A aerospace-alloy forgings. The supplier describes forging as creating grain flow and molecular alignment, combined with Omega’s own heat treatment, to provide piston strength.
CNC machining and quality-control measurements are carried out at a constant 20.5°C. RCM notes that pistons can expand by up to 10 microns in sunlight, making consistent measuring conditions important.
The skirts have an elliptical cross-section and a barrelled profile along their length for operation at working temperature. RCM states machining repeatability down to 5 microns.
Weight matching
RCM/Omega pistons are individually weighed and batched within 0.5 grams. RCM specifies a maximum weight deviation of 2.0 grams across a four-piston set and notes that some sets have deviations as small as 0.1 gram.
Fitment and ordering
Choose the finished bore required by the engine builder. Confirm the exact engine, cylinder-block specification, piston-to-bore clearance, machining and compression build before ordering or assembly, especially where the car has an engine or block conversion. The V7–V8 supplier application is WRX; this listing does not extend that application to V7–V8 STI models.
Additional information
| Weight | 8 kg |
|---|---|
| Dimensions | 30 × 25 × 15 cm |
| Piston Size | 92.25mm Oversize, 92.5mm Oversize, 92mm Standard size |
| Verified applications | Impreza WRX & STI V5–V6 EJ20 (1999–2000); Impreza WRX V7–V8 EJ20 (2001–2004) |
| Engine / family | EJ20 model-specific piston set; separate from the RCM 2.1 stroker family |
