£777.99

RCM/Omega forged EJ20 piston set with a 5 cc bowl. Choose the verified 92.00, 92.25 or 92.50 mm finished bore. Each set includes four pistons, rings, gudgeon pins and circlips; engine-builder checks are required.

Non Stock Item – Ordered In
Typical lead time: 1–3 working days, subject to supplier stock.

Description

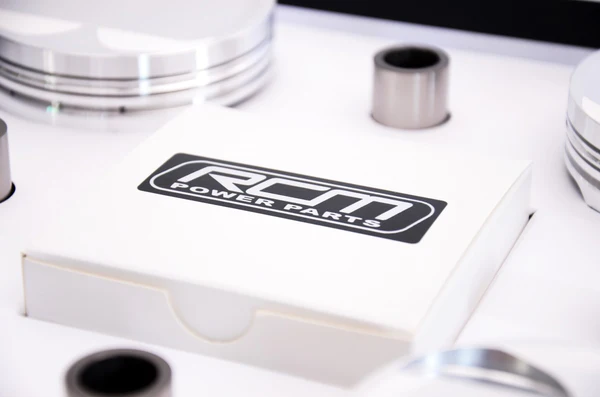

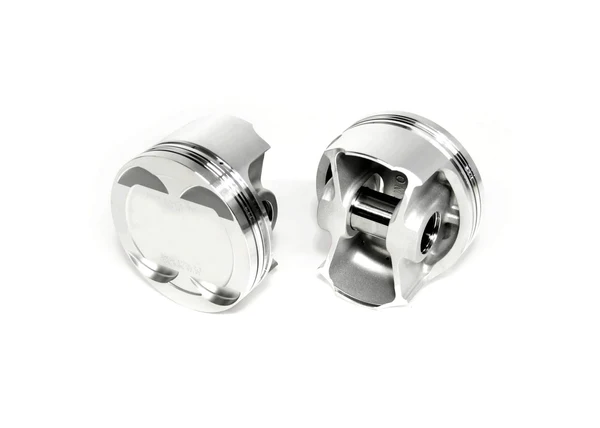

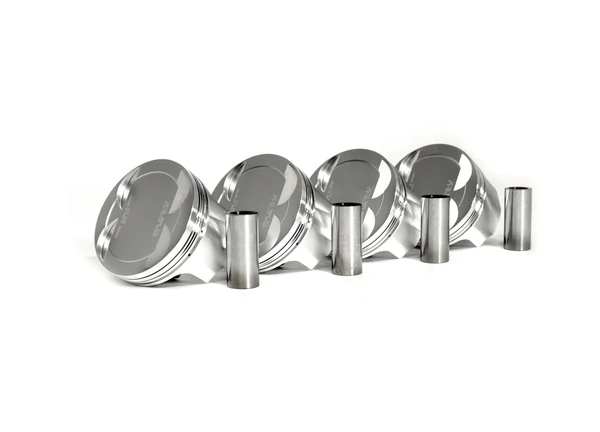

RCM/Omega EJ20 High-Compression 5 cc Piston Set

Four Omega forged pistons for an EJ20 engine build, with a choice of 92.00, 92.25 or 92.50 mm finished bore. Each option is the same 5 cc piston-bowl family, supplied with rings, gudgeon pins and circlips.

Choose the correct bore

Finished bore RCM part number
92.00 mm – standard bore RCM2235
92.25 mm – oversize RCM2236
92.50 mm – oversize RCM2237

Features and contents

  • Four Omega forged 2618A aluminium pistons.
  • Piston rings, gudgeon pins and circlips included.
  • 5 cc piston bowl volume.
  • RCM specifies CNC machining at a controlled temperature and weight batching within 0.5 g.

Engine-build checks

EJ20 identifies the engine family, the millimetre options identify finished bore, and 5 cc describes the piston bowl volume. None of these is a stated compression ratio. Final compression depends on the cylinder heads, head gasket, crankshaft, rods and the rest of the build.

Have your engine builder measure the block and confirm the piston, crank and rod combination, clearances and ring gaps before ordering or machining. Do not substitute these for a different stock or stroker piston specification based only on bore size.

Read the RCM piston installation instructions before installation.

For the different bowl specification, see the separate EJ20 10 cc piston family. These families are not interchangeable on bore size alone.

Additional information

Weight N/A
Finished bore

92.00 mm, 92.25 mm, 92.50 mm

Engine build

EJ20 high compression

Piston bowl volume

5 cc

Quantity

Set of four pistons

Brand

Roger Clark Motorsport

Browse Roger Clark Motorsport (RCM) Subaru engine, cooling, performance and workshop products at MB Developments. Check the exact engine, model application and selected kit contents.
