Price range: £1,558.00 through £1,669.99

Set of four RCM / Arrow Xtreme rods with ARP bolts and assembly lubricant. Choose 130.450 mm standard, 131.450 mm longer or 129.450 mm shorter centre length for your verified EJ engine build. Exact SKU, price and stock are shown per option; professional assembly required.

Non Stock Item – Ordered In
Typical lead time: 1–3 working days, subject to supplier stock.

Description

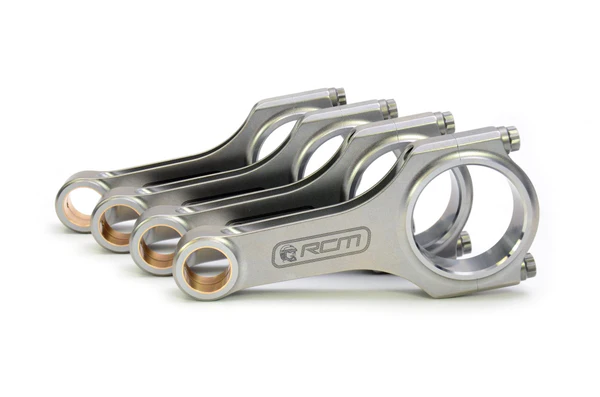

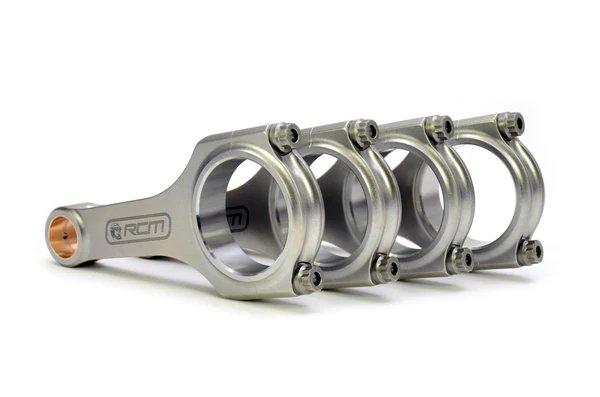

RCM / Arrow Xtreme H-section connecting rods

Choose the exact centre-to-centre rod length for your Subaru EJ engine build. These RCM Xtreme rods are manufactured by Arrow Precision from low-sulphur, vacuum-degassed EN24 nickel-chromium alloy steel in V condition. Each set is ultrasonically tested, crack checked and balanced to within one gram.

Length options and application

  • RCM2407 – standard, 130.450 mm: standard-length option. RCM lists EJ20 Impreza WRX/STI 1992–2014 including JDM turbo models, EJ25 Impreza WRX/STI including USDM 2001–2014, EJ20 Forester Turbo 1992–2003 and EJ25 Forester Turbo 2004–2007. Confirm your exact engine assembly.
  • RCM2409 – 1 mm longer, 131.450 mm: for compatible EJ20/EJ22/EJ25 builds, typically with a 75 mm stroke crankshaft to reduce rod angle in higher-revving applications.
  • RCM2408 – 1 mm shorter, 129.450 mm: for compatible EJ20/EJ22/EJ25 builds, typically with a 79 mm stroke crankshaft for an increased-capacity assembly.

The length options are not interchangeable. Have your engine builder check crankshaft stroke, piston compression height, clearances and the complete rotating assembly before ordering. Crankshaft stroke alone does not establish compatibility.

Specification and contents

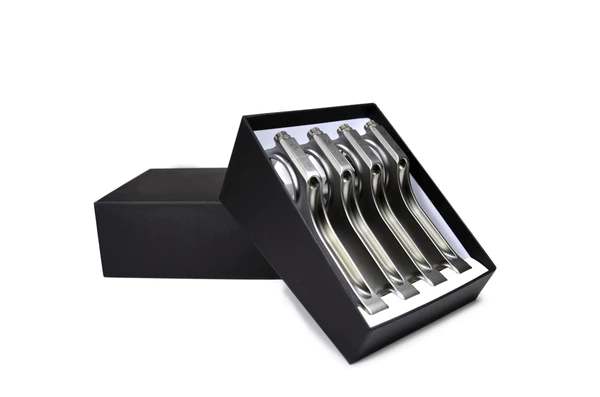

  • Four connecting rods with ARP bolts and an ARP assembly lubricant sachet
  • 17 mm beam width; 55.008 mm big-end diameter; 23.000 mm gudgeon-pin diameter
  • 21.400 mm big-end and small-end widths; 3/8 UNF bolt size
  • Machined H-section design with laser-engraved RCM identification

RCM positions the Xtreme range for 600+ bhp engine projects; this is manufacturer application guidance, not a guarantee of vehicle output or a substitute for an engine builder’s assessment. Professional assembly and correct fastener procedures are required.

Buying information

Price and availability apply to the selected set. The longer and shorter options are currently out of stock and cannot be backordered. Supplier range photographs are used by RCM for these exact part numbers; use the selected SKU and stated length to identify the set. Other RCM Street Spec, H-section and M2000 rods remain separate products.

Additional information

Rod length

130.450 mm – standard length, 131.450 mm – 1 mm longer, 129.450 mm – 1 mm shorter

Brand

Roger Clark Motorsport

Browse Roger Clark Motorsport (RCM) Subaru engine, cooling, performance and workshop products at MB Developments. Check the exact engine, model application and selected kit contents.
