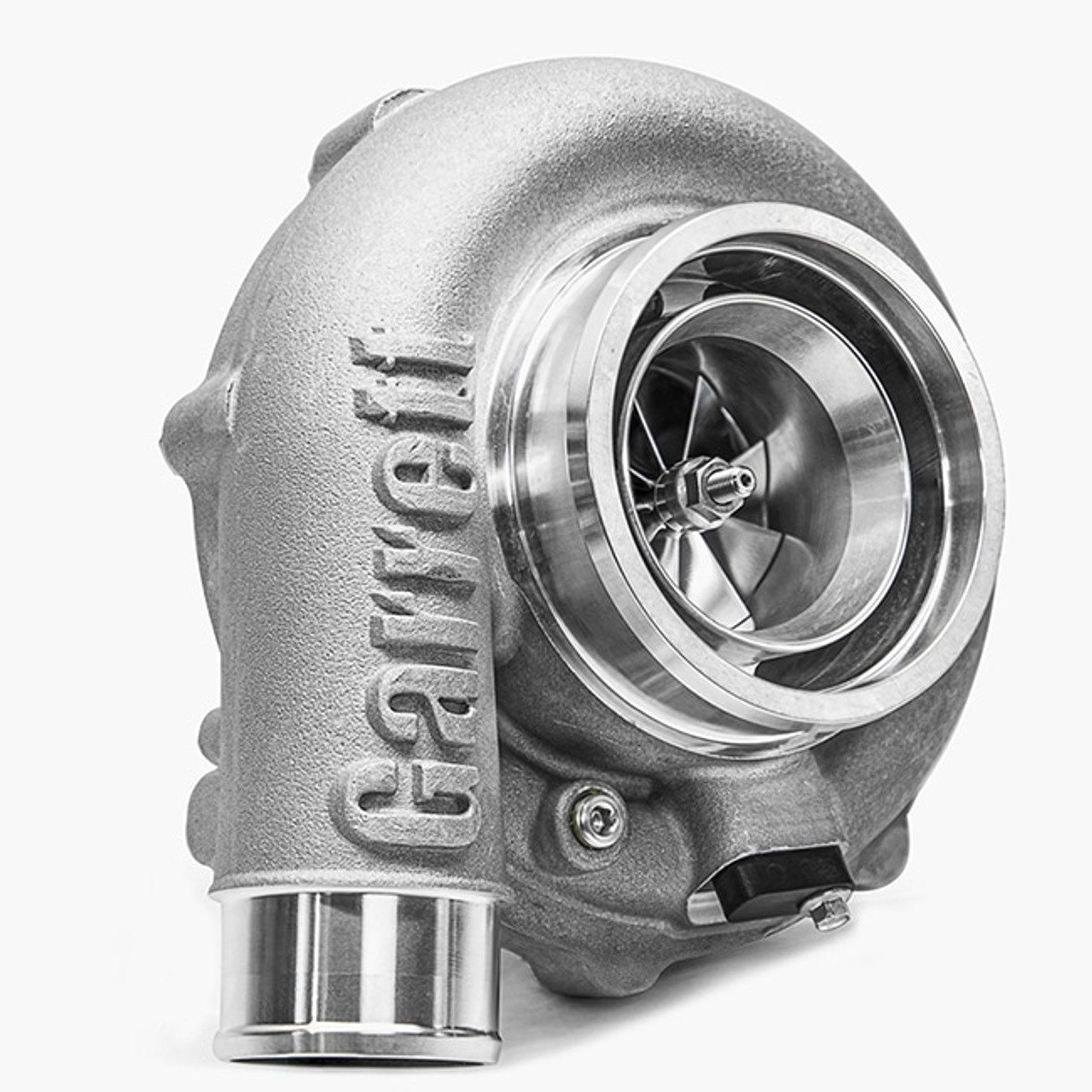

Garrett G35-900 Supercore, Reverse Rotation 550-900HP

Description

Garrett G35-900 Supercore, Reverse Rotation 550-900HP

Garrett Garrett G Series Compressor Aerodynamics for maximum HP. Fully machined Speed Sensor and pressure ports. New Turbine Wheel Aero constructed of MAR-M alloy rated 1055ºC, Reverse Rotation 550-900HP

Horsepower: 550 – 900HP
Displacement: 2.5 – 5.5L

Garrett G Series Compressor Aerodynamics for maximum HP. Fully machined Speed Sensor and pressure ports. New Turbine Wheel Aero constructed of MAR-M alloy rated 1055ºC. Stainless Steel wastegated and non wastegated turbine housing option capable of 1050°C. Oil restrictor and water fittings included.

• Compressor side: Trim 65 A/R 0.72
• Compressor Air Inlet: Hose 4″ (101.6mm)
• Compressor Air Outlet: Hose 2″ (50.8mm)

Forged fully-machined compressor wheel and new aerodynamics increase maximum horsepower output and boost response. The CFD (computational fluid dynamics) engineered compressor wheel increases air flow up to 15% for 60mm and 30% for 67mm with 79-80% efficiency. (Compared to GTX GenII)

880696-5001S
