Timing Belt & Water Pump Kit with HKS Belt – Impreza WRX/STI November 2002+

Description

HKS timing-belt and water-pump kit

This kit combines an HKS Kevlar timing belt with OE-specification timing hardware and your selected water-pump package. The reinforced HKS belt is designed for the heat and loads of high-output, high-revving engines.

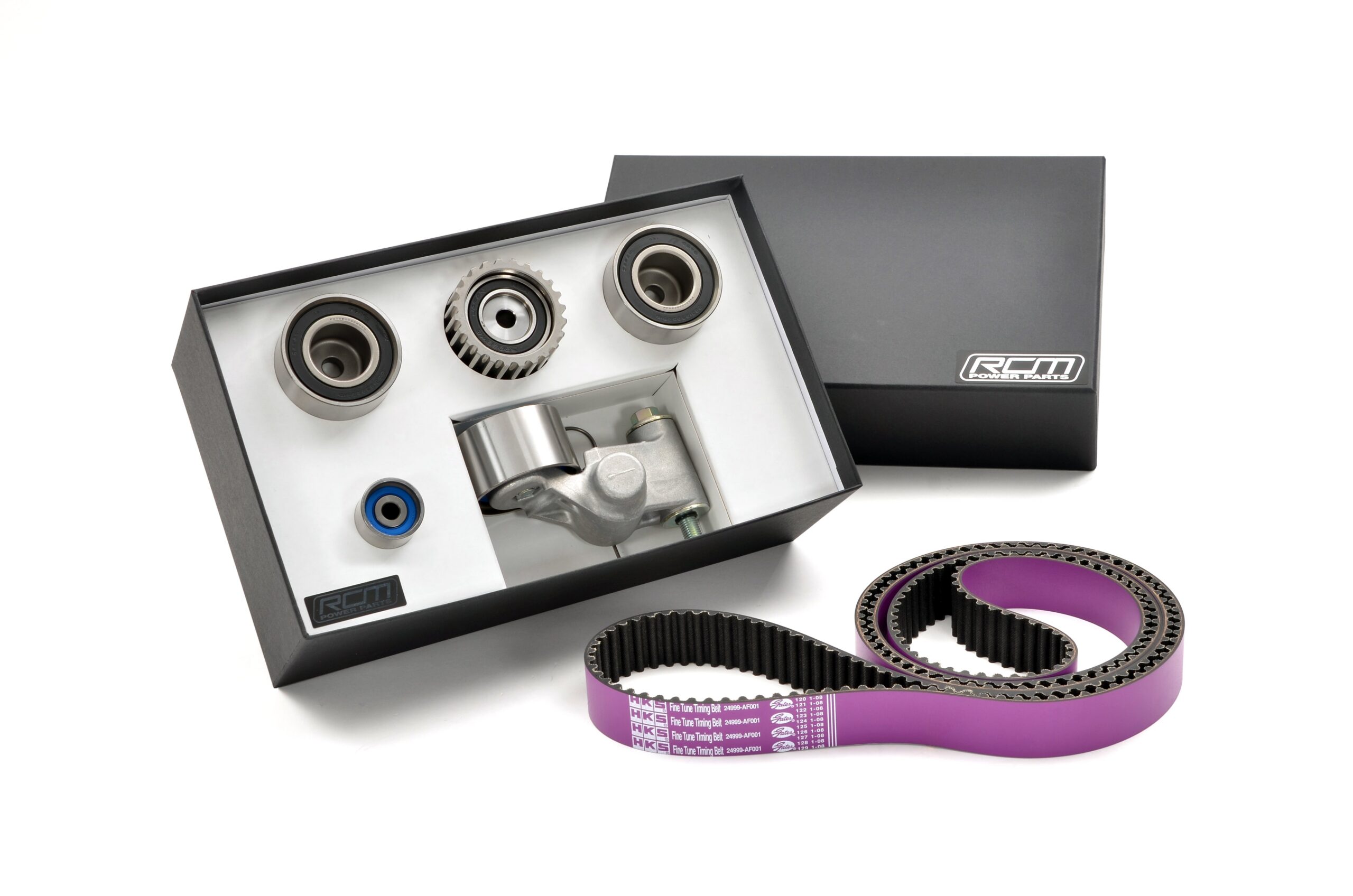

Kit contents

• One HKS timing belt.

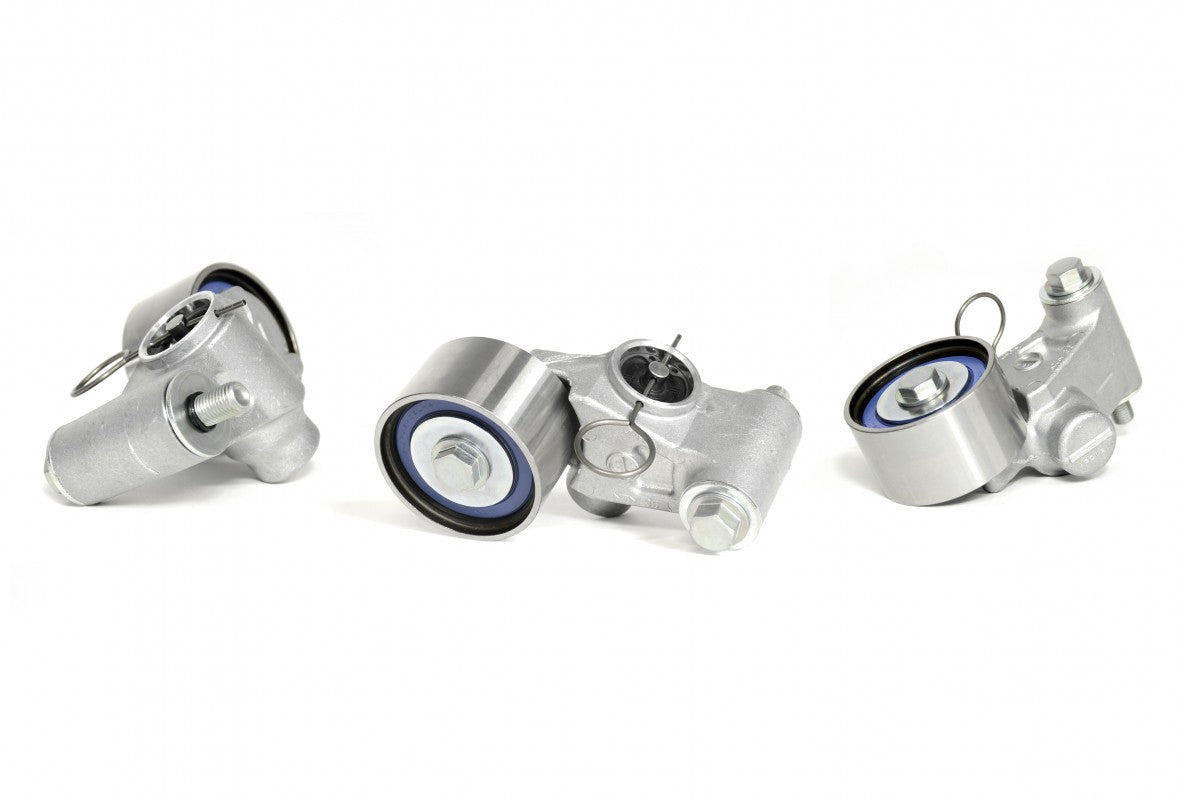

• One timing-belt tensioner.
• One toothed idler bearing.
• Two smooth idler bearings.
• One small smooth idler bearing.
• One water pump, according to your selection.
• One thermostat seal and one water-pump gasket.

Choose the pump package

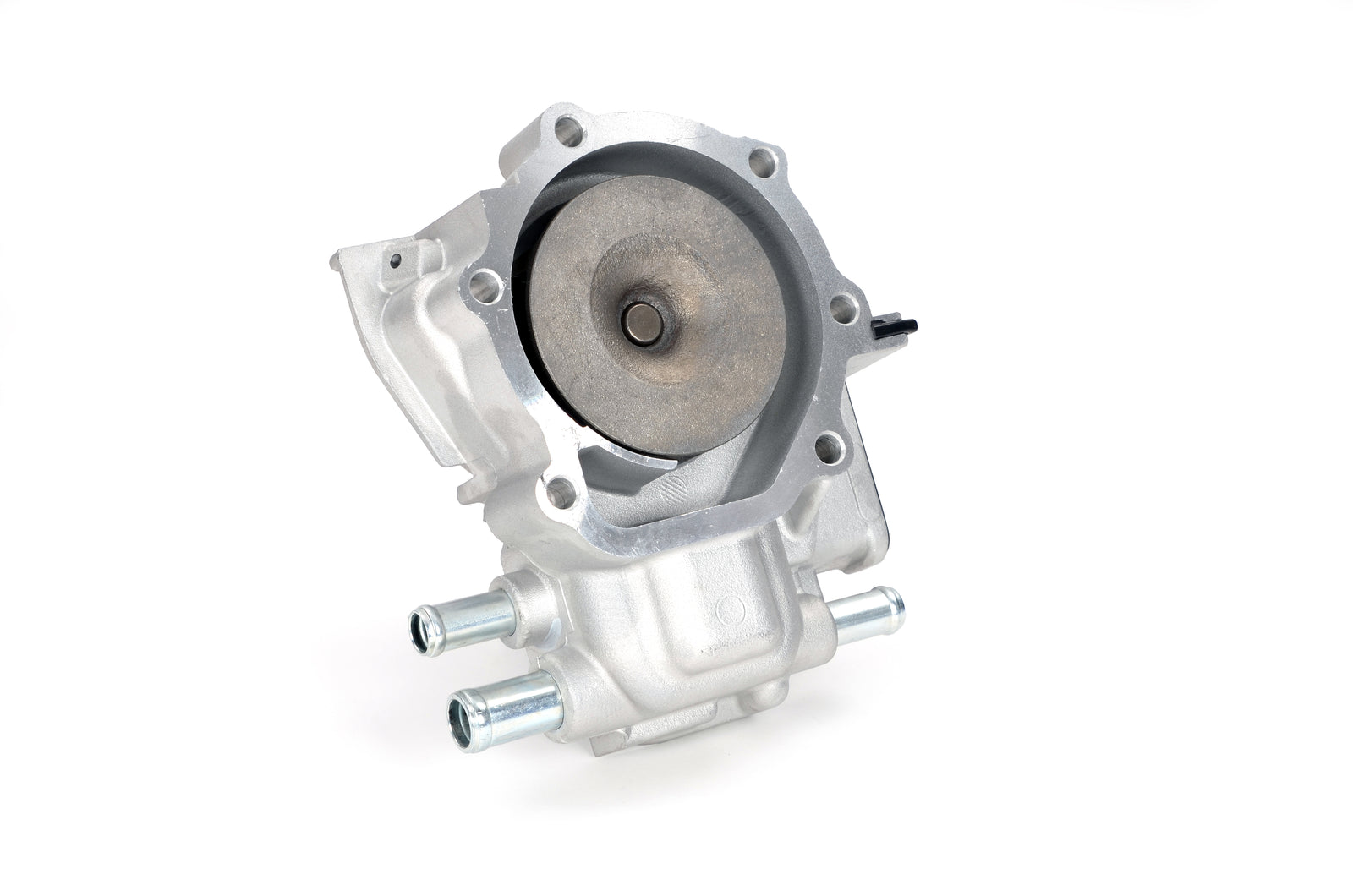

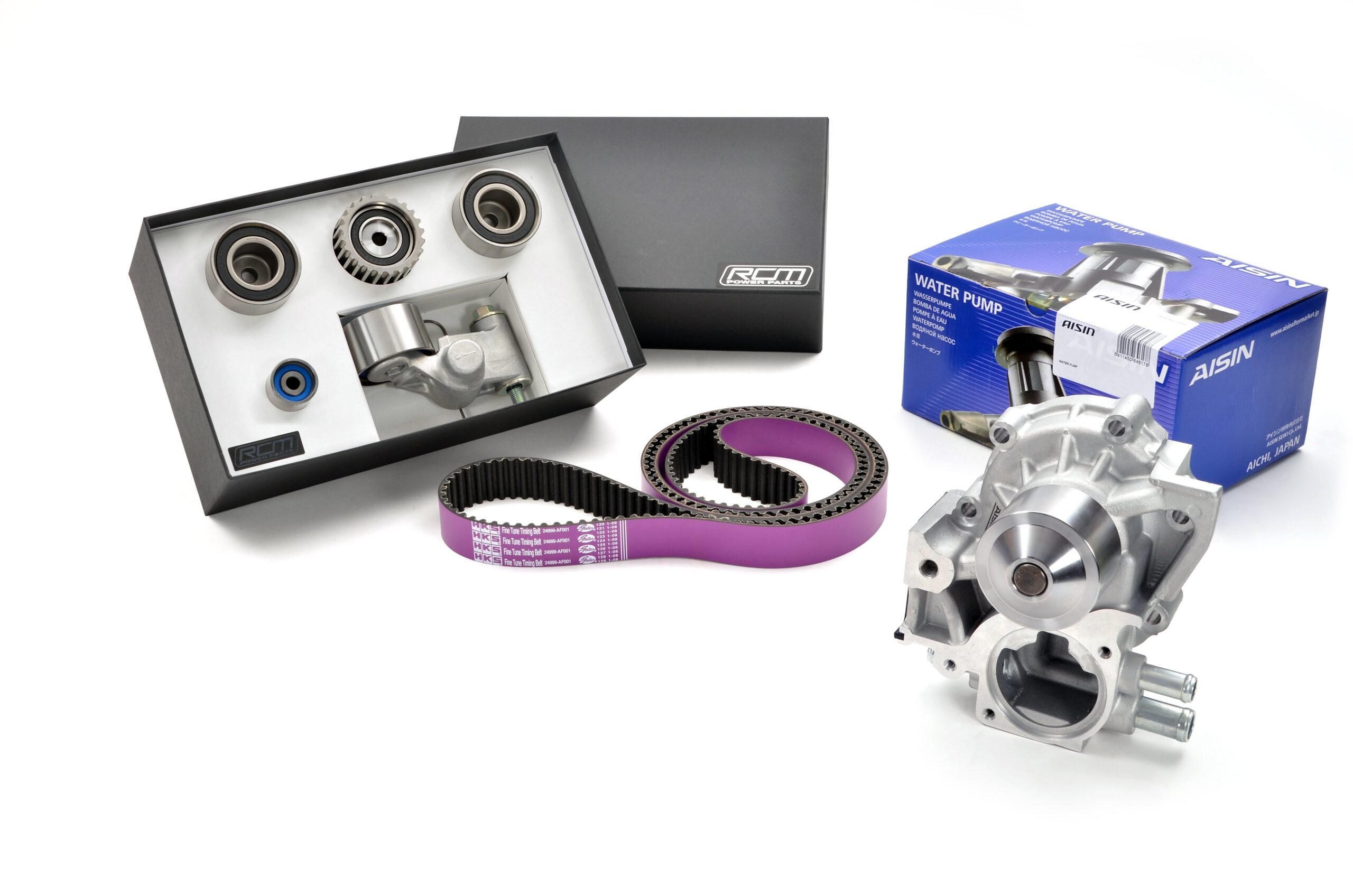

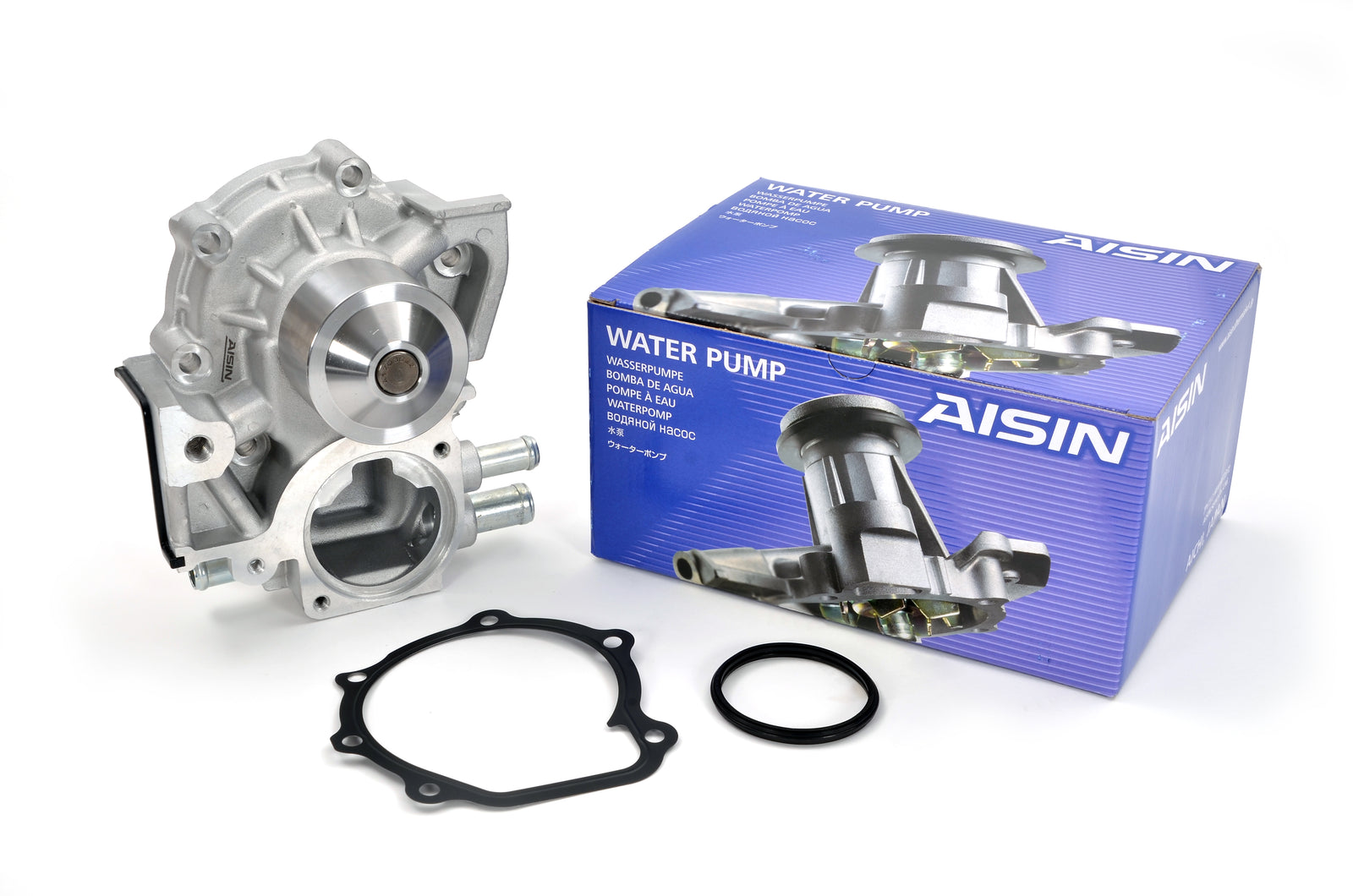

• RCM2657WP: Aisin three-port water pump.

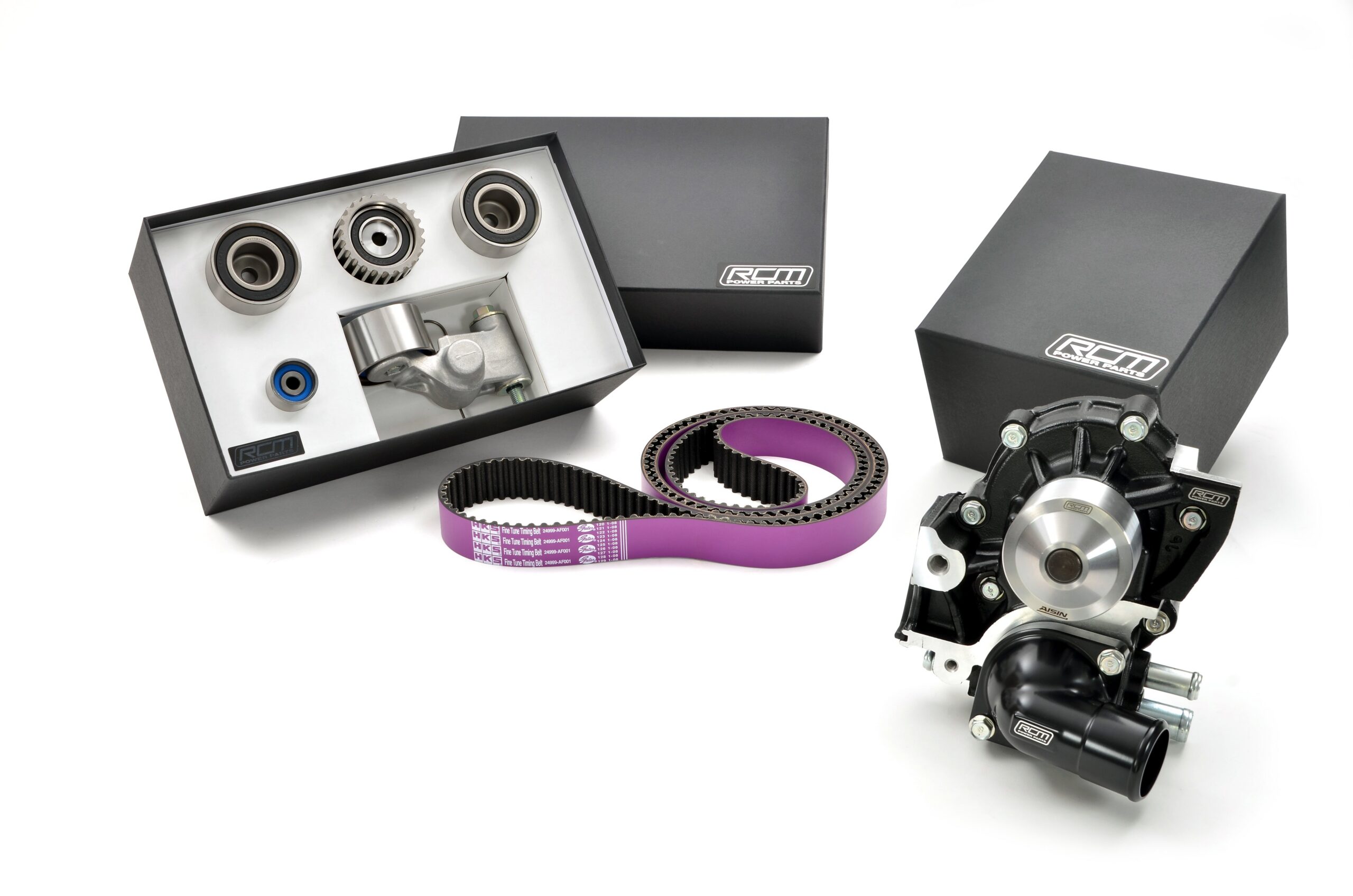

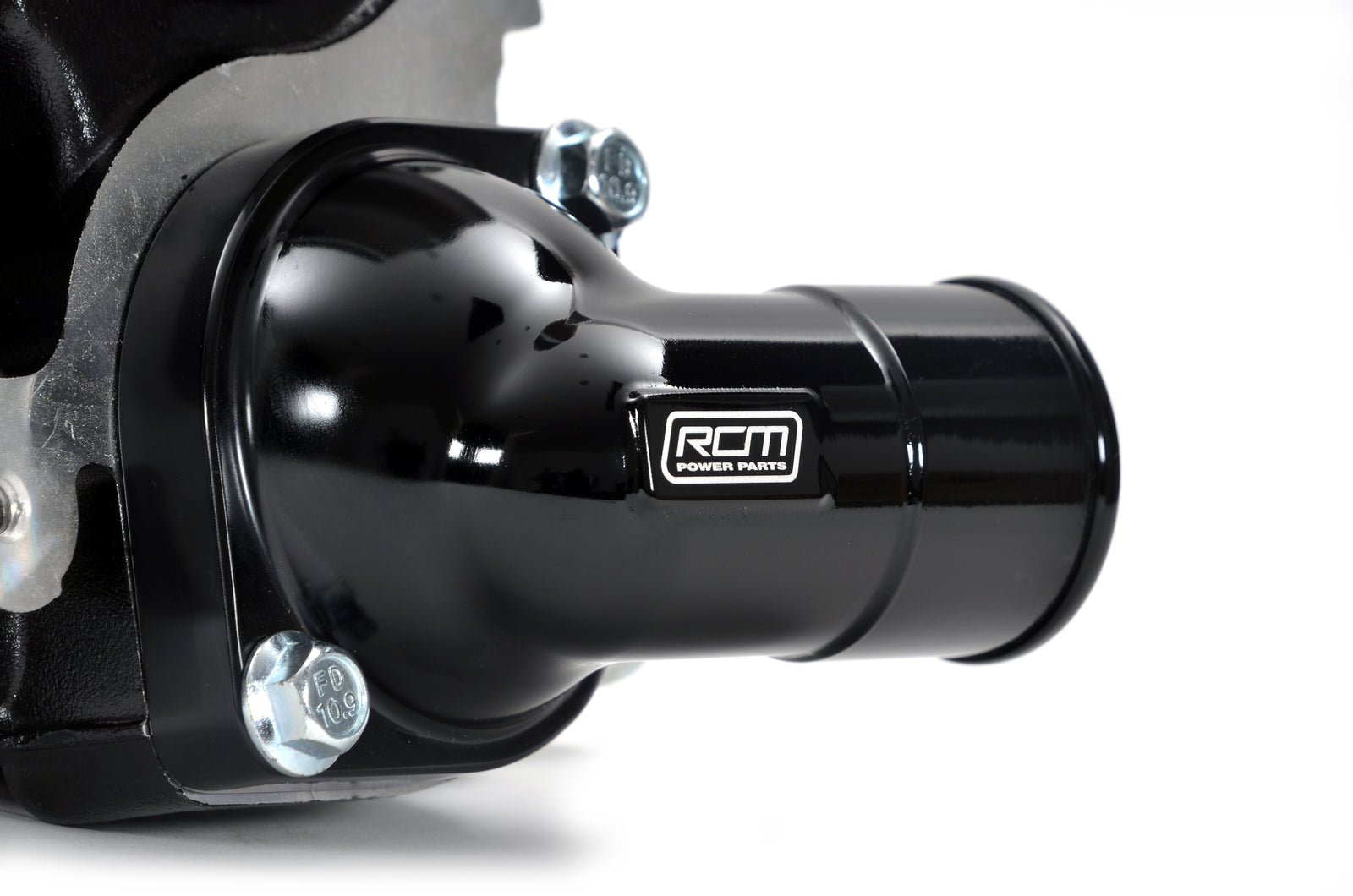

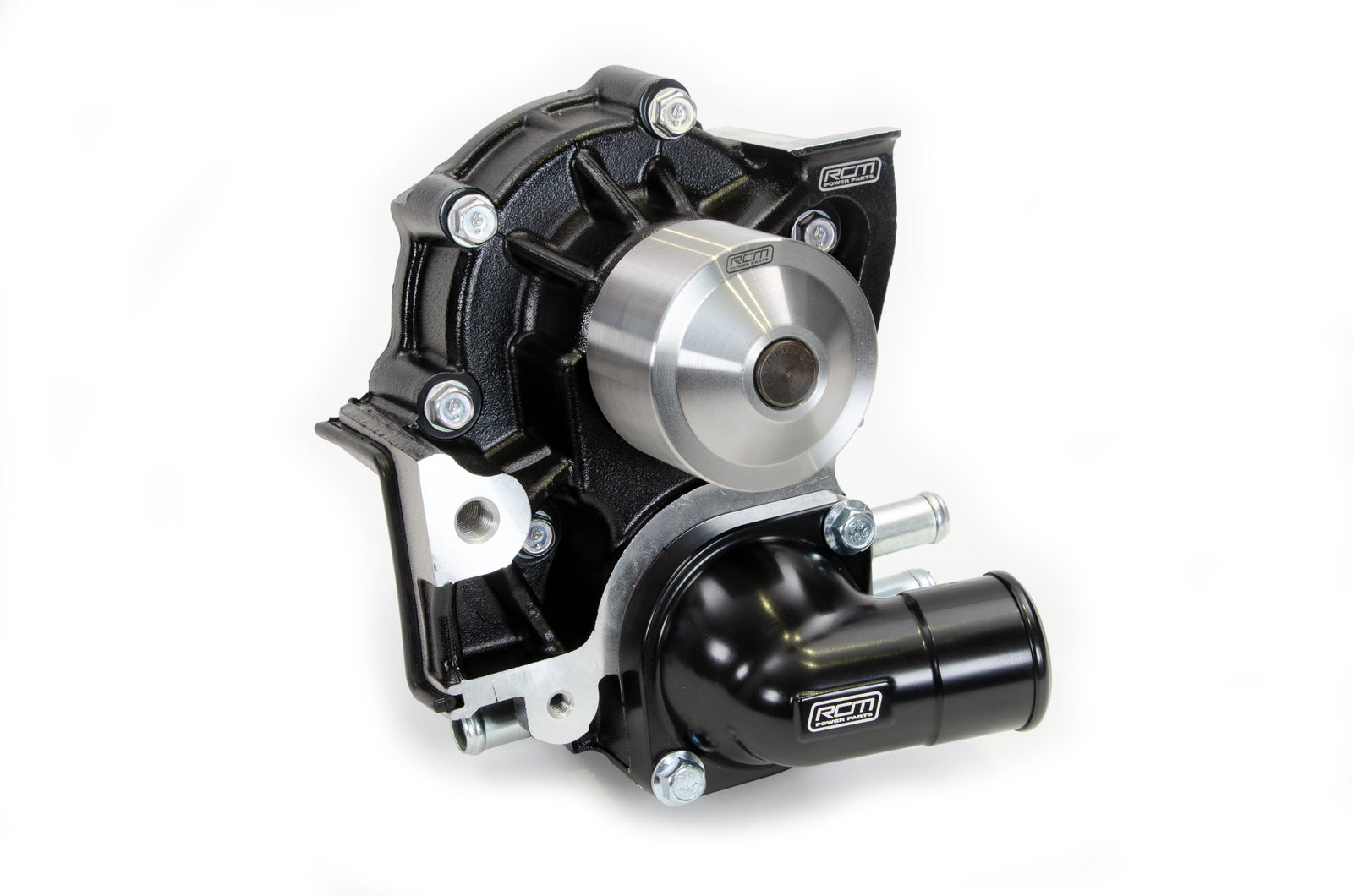

• RCM2657WPR: RCM Black Series water pump with billet thermostat housing.

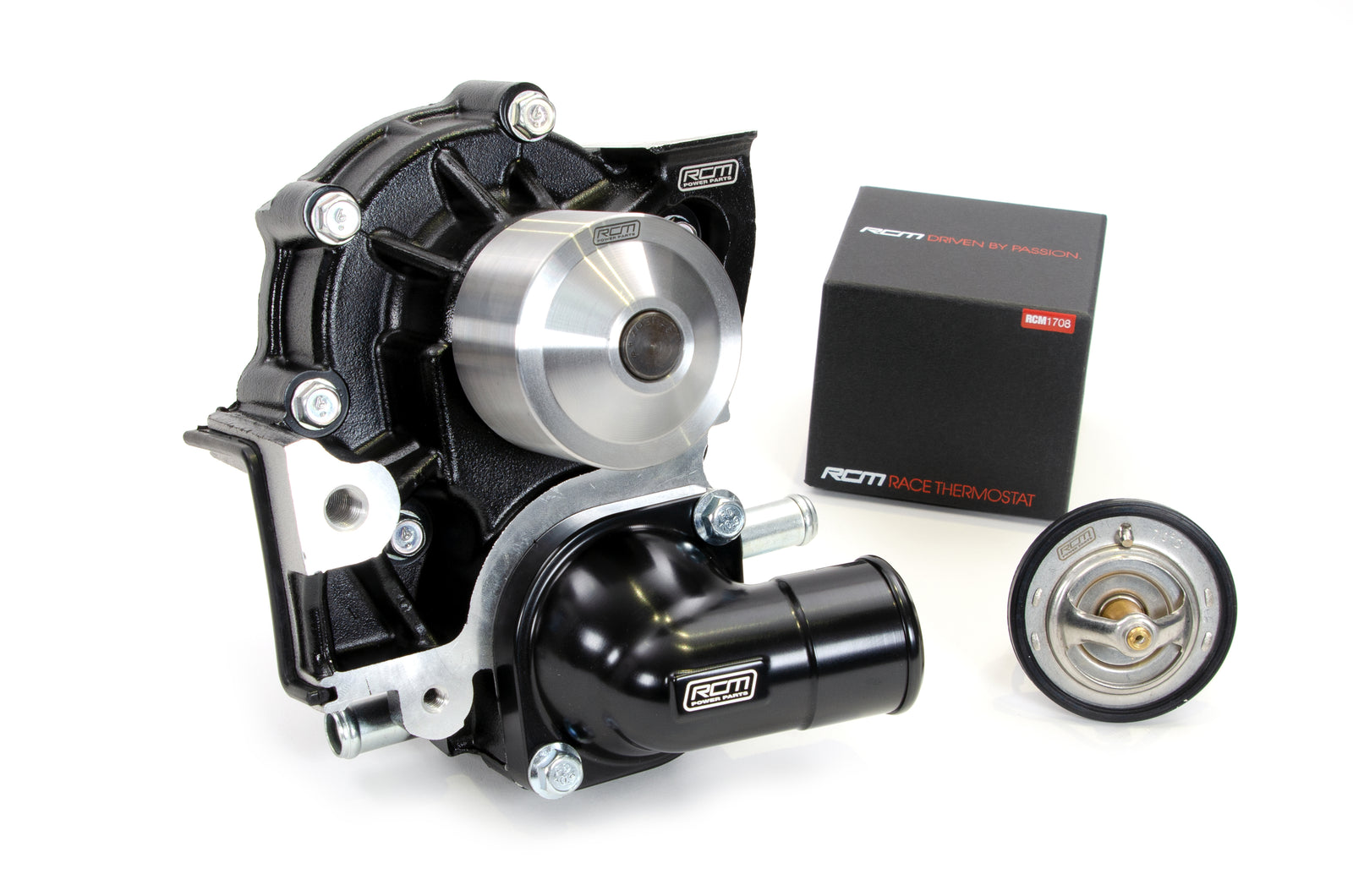

• RCM2657WPR7: RCM Black Series water pump with billet thermostat housing and a 70°C thermostat.

Basket quantity 1 supplies one complete selected kit. The 70°C thermostat is included with RCM2657WPR7.

Fitment and ordering

Subaru Impreza WRX and STI registered from November 2002 onwards. The supplier family label is 2002MY+ EJ20/EJ22/EJ25; model-year labels and registration dates are separate checks.

Match the actual engine, timing arrangement and water-pump connections, particularly after an engine conversion. This kit includes one standard timing-belt tensioner; a motorsport tensioner is not listed as part of these three pump packages.

Related timing choices

If you do not need a water pump, see the HKS timing-belt kit without a water pump, with standard or motorsport tensioner choices.

Timing-belt guides are available separately as the genuine Subaru guide with two bolts or RCM billet timing-belt guide. Match the application and oil-pump mounting arrangement; the guide is not included in this kit.
