£10,793.19

RCM600 2.1L High Compression Closed Deck Block Short Engine with RCM / Arrow H-section rods, billet crankshaft and 14mm head-stud conversion. Head studs are not included.

Non Stock Item – Ordered In
Typical lead time: 1–3 working days, subject to supplier stock.

Description

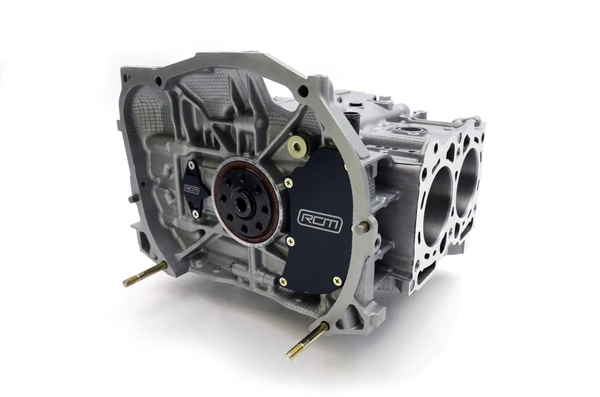

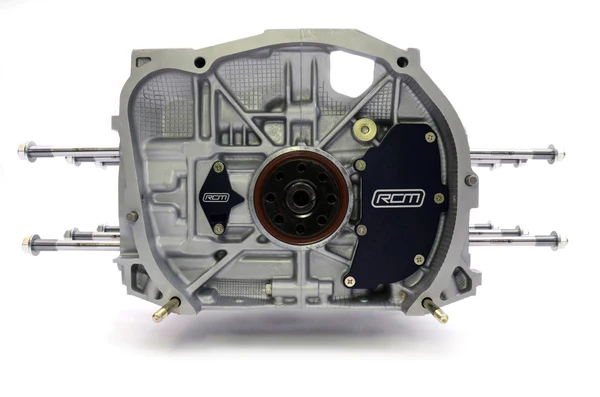

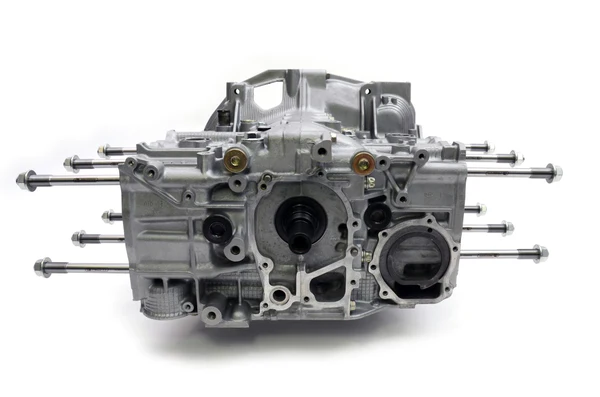

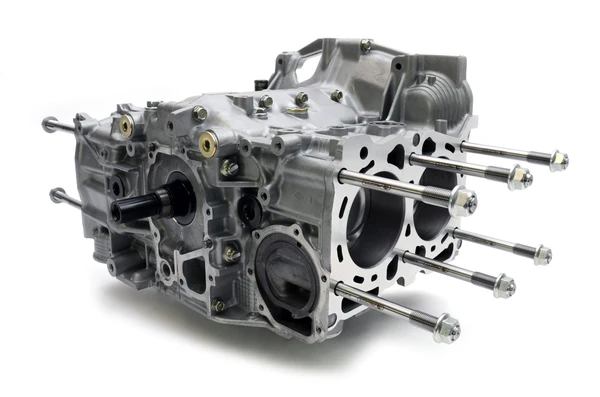

RCM600 2.1L High Compression Closed Deck Block Short Engine

RCM assembled forged EJ20 2.1L high-compression stroker short engine built around remanufactured closed-deck block halves. Each engine receives a build tag identifying the specification, builder and build date.

Build specification

  • Remanufactured EJ20 closed-deck block halves
  • RCM / Arrow H-section connecting rods
  • RCM / Omega pistons
  • RCM / Arrow billet 79mm 2.5L crankshaft
  • High-performance main and big-end bearings
  • RCM 14mm head-stud conversion
  • RCM billet oil separator and gudgeon-pin covers

Block preparation and assembly

Carefully selected used cases are inspected, tested and measured before deep case cleaning. Block bungs and plugs receive zinc-coated replacements and new aluminium seals. RCM billet aluminium oil separator and gudgeon-pin covers replace the standard covers.

The cases are converted to accept a rear-thrust bearing and undergo the RCM 14mm head-stud conversion. The block faces are skimmed flat, then the bores are rebored and honed to match the selected pistons.

Components are individually selected and checked before assembly by RCM technicians. After final inspection, the identification badge and build tag identify the engine specification, builder and build date.

Fitment and build requirements

For EJ20 2.1L stroker applications. Confirm the cylinder-head and ancillary configuration for the intended engine build. Confirm the exact vehicle application before ordering.

What is supplied

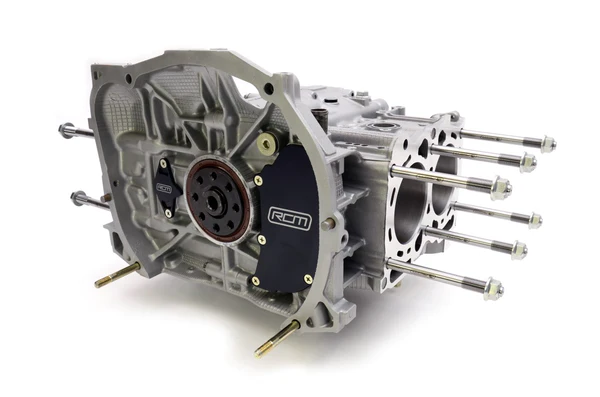

One assembled short engine. Head studs pictured are for illustration and must be purchased separately.

Supplier product code: RCM2848.

Additional information

Weight 60 kg
Dimensions 30 × 25 × 15 cm

Brand

Roger Clark Motorsport

Browse Roger Clark Motorsport (RCM) Subaru engine, cooling, performance and workshop products at MB Developments. Check the exact engine, model application and selected kit contents.
