£832.00
RCM/Omega four-piston set for the exact EJ20 Gobstopper 75mm-crank configuration with 1.5mm longer rods, WRC O-ring conversion and V3–V4 heads. Select 92.00mm, 92.25mm or 92.50mm bore; rings, pins and circlips are included. RCM publishes no fixed compression ratio or bowl cc for this family.
Typical lead time: 1–3 working days, subject to supplier stock.
Description

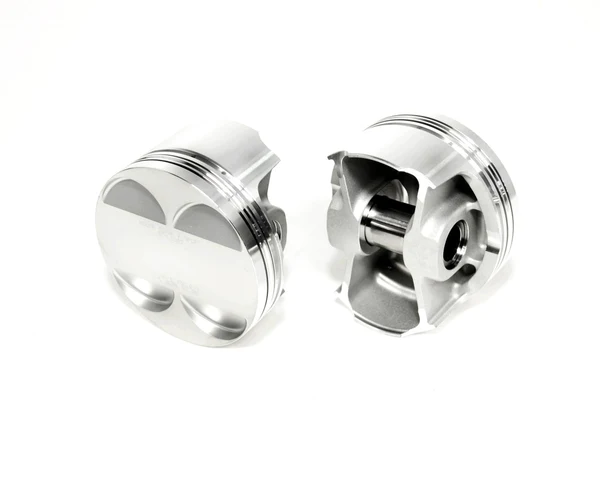

RCM/Omega Gobstopper I, II & III forged piston set
This is the dedicated RCM/Omega EJ20 piston family for the exact Gobstopper engine configuration below. Select the finished bore size required for the engine build.
Exact application
- EJ20-based build using a 75mm-stroke crankshaft.
- 1.5mm longer connecting rods.
- WRC O-ring cylinder-head conversion.
- Version 3–4 cylinder heads.
- High deck height and deep valve pockets specified by RCM for this configuration.
RCM’s current product title covers Gobstopper I, II & III. Its published technical application notes describe the piston design developed for the Gobstopper I and II configuration above. Confirm the complete engine specification before ordering; these choices are bore sizes for this one exact family and are not general EJ20 interchangeability options.
Bore-size choices
- 92.00mm standard bore — RCM2247.
- 92.25mm oversize — RCM2248.
- 92.50mm oversize — RCM2249.
RCM does not publish a numerical compression ratio or piston bowl-volume figure for these choices. Achieved compression depends on the complete build specification; no compression value is inferred here.

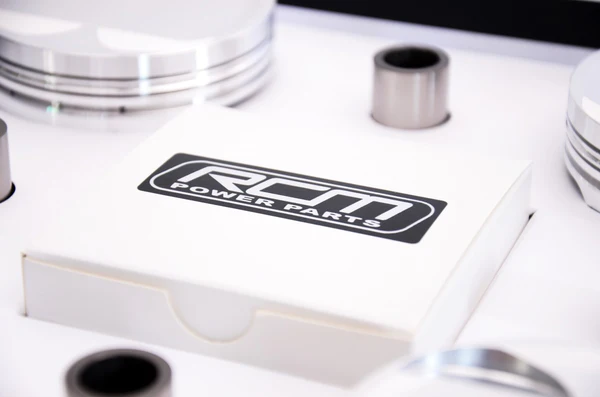

Set contents

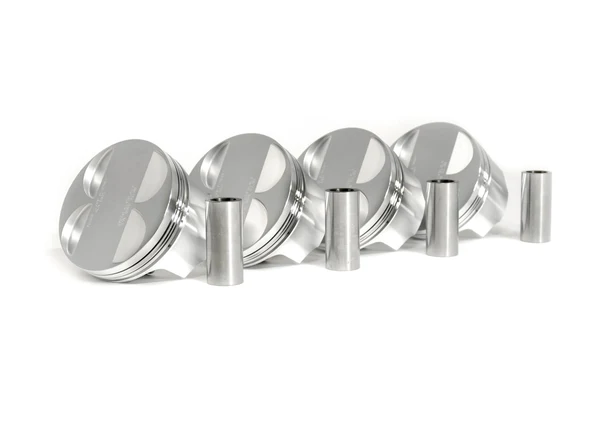

- Four 2618A forged pistons.
- New piston rings.
- Gudgeon pins.
- Circlips.
Manufacturing details
- CNC machining at a controlled 20.5°C.
- Individually weighed and batched within 0.5g; RCM states a maximum 2.0g deviation across a four-piston set.
- Elliptical and barrelled skirt profiles designed for operating temperature.
- CNC machining repeatability down to 5 microns, as specified by RCM.
The price is for one selected four-piston set. Check piston-to-bore clearance and the full engine specification before machining or assembly.
Additional information
| Weight | N/A |
|---|---|
| Piston Size | 92.25mm Oversize, 92.5mm Oversize, 92mm Standard size |
