£103.59 – £209.18Price range: £103.59 through £209.18
RCM multi-layer steel cylinder head gasket for EJ22 engines. Select 0.78mm, 1.1mm or 1.5mm thickness and one gasket or a two-gasket pair.
Typical lead time: 1–3 working days, subject to supplier stock.
Description

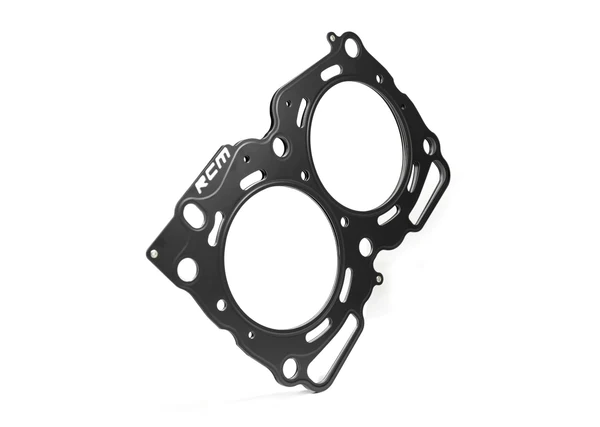

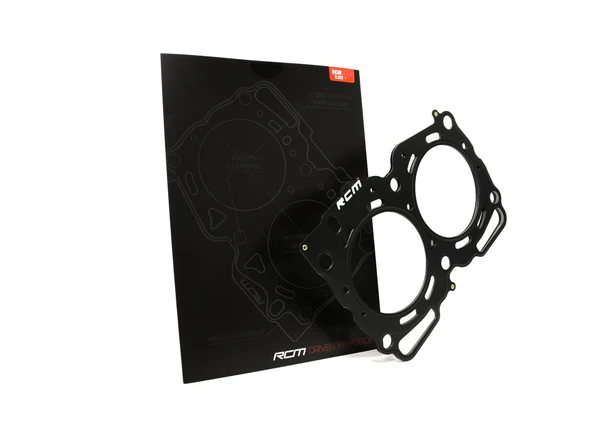

RCM Subaru EJ22 MLS Cylinder Head Gasket
RCM multi-layer steel cylinder head gasket for EJ22 engines.
Fitment and engine specification
For EJ22 engines with matching cylinder-head and block sealing faces. Choose the gasket design for the actual engine build.
Features and construction
- Multi-layer steel (MLS) construction.
- Folded stopper layers with additional thickness around critical sealing areas.
- Nitrile rubber coating designed to accommodate minor surface imperfections.
- Die-cut construction.
- 14mm-diameter head-stud / bolt holes.
- RCM also lists this gasket as suitable for standard head bolts and 11mm stud kits; the fastening kit must match the engine build.
RCM publishes a performance rating of up to and over 800bhp for this gasket design.
Thickness and supplied quantity
- Available thicknesses: 0.78mm, 1.1mm or 1.5mm.
- x1 supplies one cylinder head gasket.
- x2 supplies a pair of cylinder head gaskets.
The displayed price is for the selected thickness and quantity. A full engine requires two head gaskets: choose one x2 pair, or two x1 gaskets of the required specification. Do not order two x2 pairs unless you need four gaskets.
Gasket thickness affects compression ratio alongside the other engine components. Confirm the required thickness, mating faces and water-jacket pattern for your build. Gallery photographs illustrate the gasket design and range; the selected option defines thickness and quantity.
RCM references
RCM1686, RCM1686-2, RCM1687, RCM1687-2, RCM1688, RCM1688-2.
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 30 × 25 × 15 cm |
| Gasket Thickness | 0.78mm, 1.1mm, 1.5mm |
| Gasket Quantity | x1, x2 |
