RCM multi-layer steel cylinder head gasket for EJ20 engines. Select 0.78mm, 1.1mm or 1.5mm thickness and one gasket or a two-gasket pair.
Typical lead time: 1–3 working days, subject to supplier stock.
Description

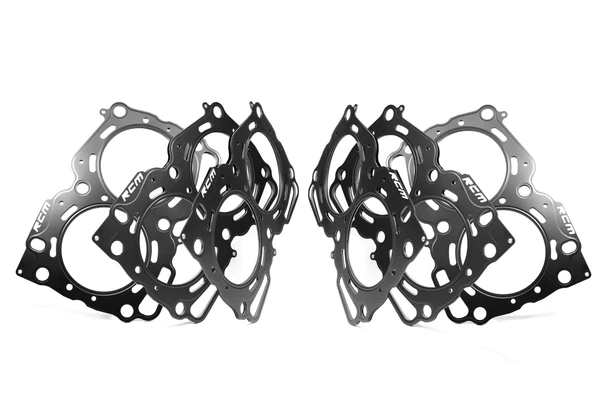

RCM Subaru EJ20 MLS Cylinder Head Gasket
RCM multi-layer steel cylinder head gasket for EJ20 engines.
Fitment and engine specification
For EJ20 engines. Match the gasket to the block and cylinder-head sealing faces; engine code alone does not establish every model or build combination.
Features and construction
- Multi-layer steel (MLS) construction.
- Folded stopper layers with additional thickness around critical sealing areas.
- Nitrile rubber coating designed to accommodate minor surface imperfections.
- Die-cut construction.
- 14mm-diameter head-stud / bolt holes.
RCM publishes a performance rating of up to and over 800bhp for this gasket design.
Thickness and supplied quantity
- Available thicknesses: 0.78mm, 1.1mm or 1.5mm.
- x1 supplies one cylinder head gasket.
- x2 supplies a pair of cylinder head gaskets.
The displayed price is for the selected thickness and quantity. A full engine requires two head gaskets: choose one x2 pair, or two x1 gaskets of the required specification. Do not order two x2 pairs unless you need four gaskets.
Gasket thickness affects compression ratio alongside the other engine components. Confirm the required thickness, mating faces and water-jacket pattern for your build. Gallery photographs illustrate the gasket design and range; the selected option defines thickness and quantity.
RCM references
RCM1683, RCM1683-2, RCM1684, RCM1684-2, RCM1685, RCM1685-2.
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 30 × 25 × 15 cm |
| Gasket Quantity | x1, x2 |
| Gasket Thickness | 0.78mm, 1.1mm, 1.5mm |
