RCM Complete Block Rebuild Kit – EJ20 / EJ22 / EJ25

Description

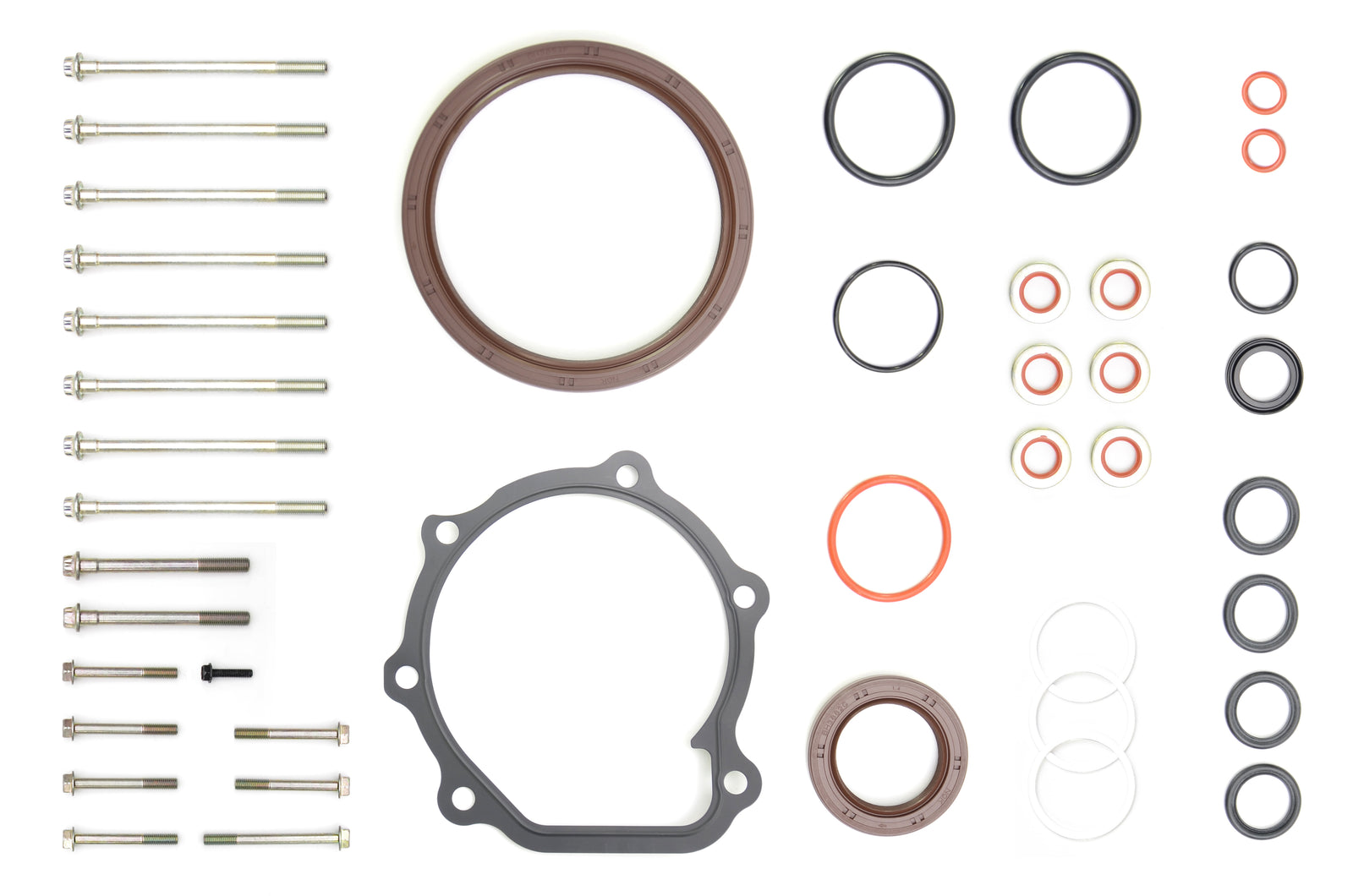

RCM complete block rebuild kit

SEN1246 brings together the seals, gaskets, washers and bolts listed below for a short-engine rebuild. The supplier confirms EJ20, EJ22 and EJ25 applications.

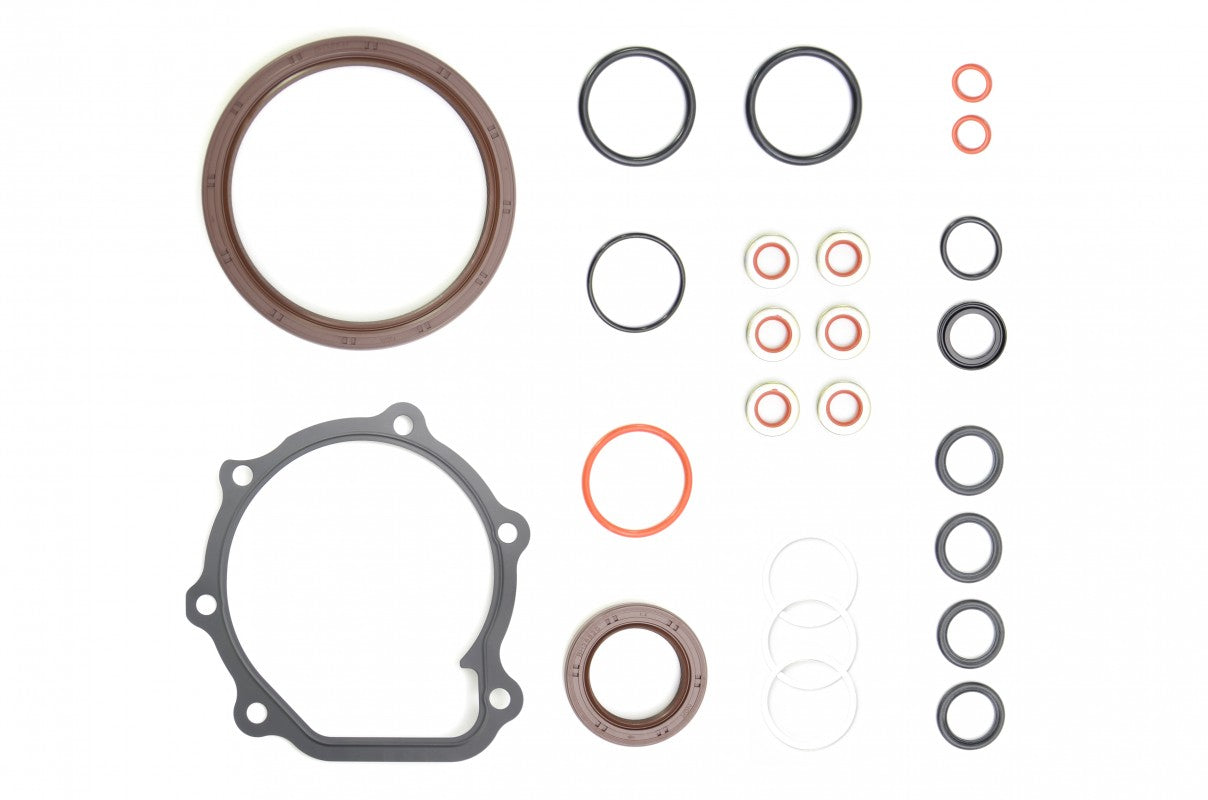

Kit contents

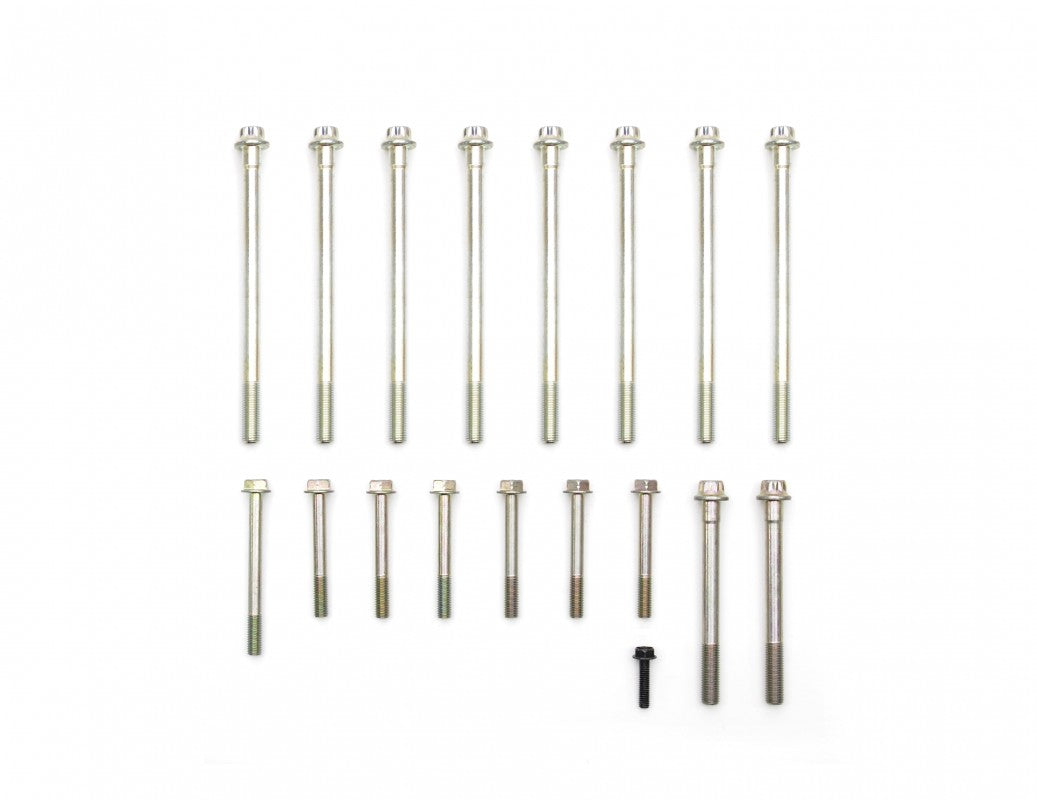

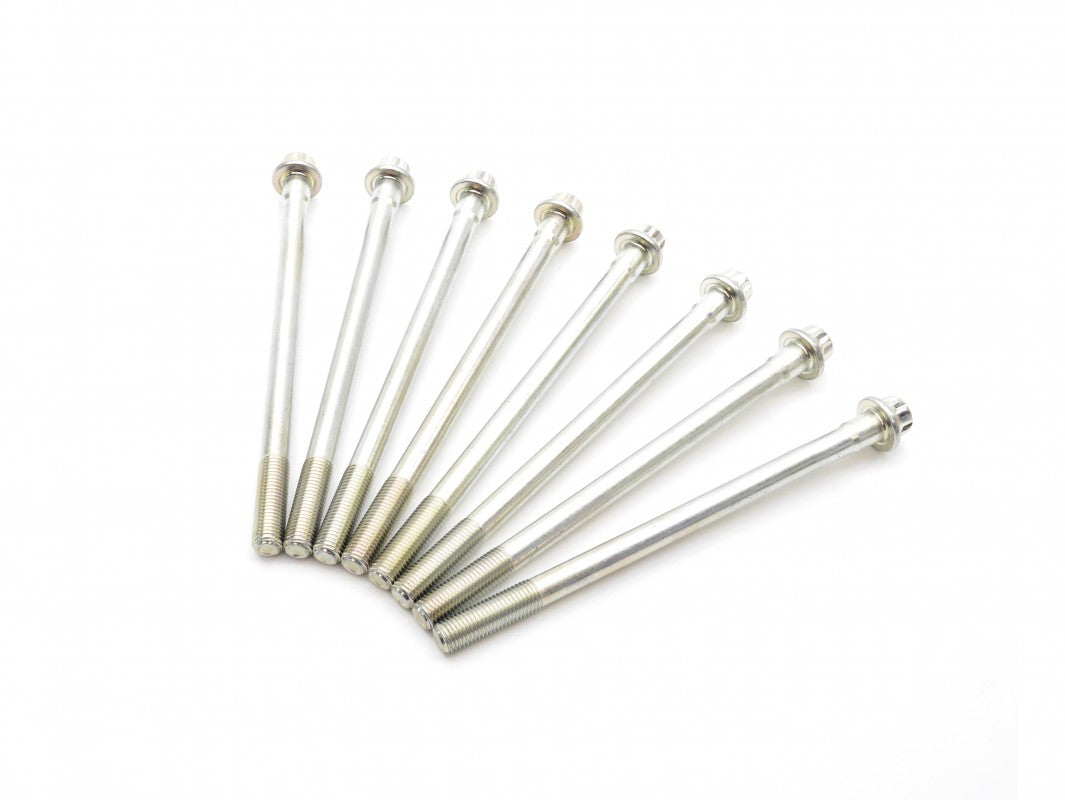

• 17 block case bolts.

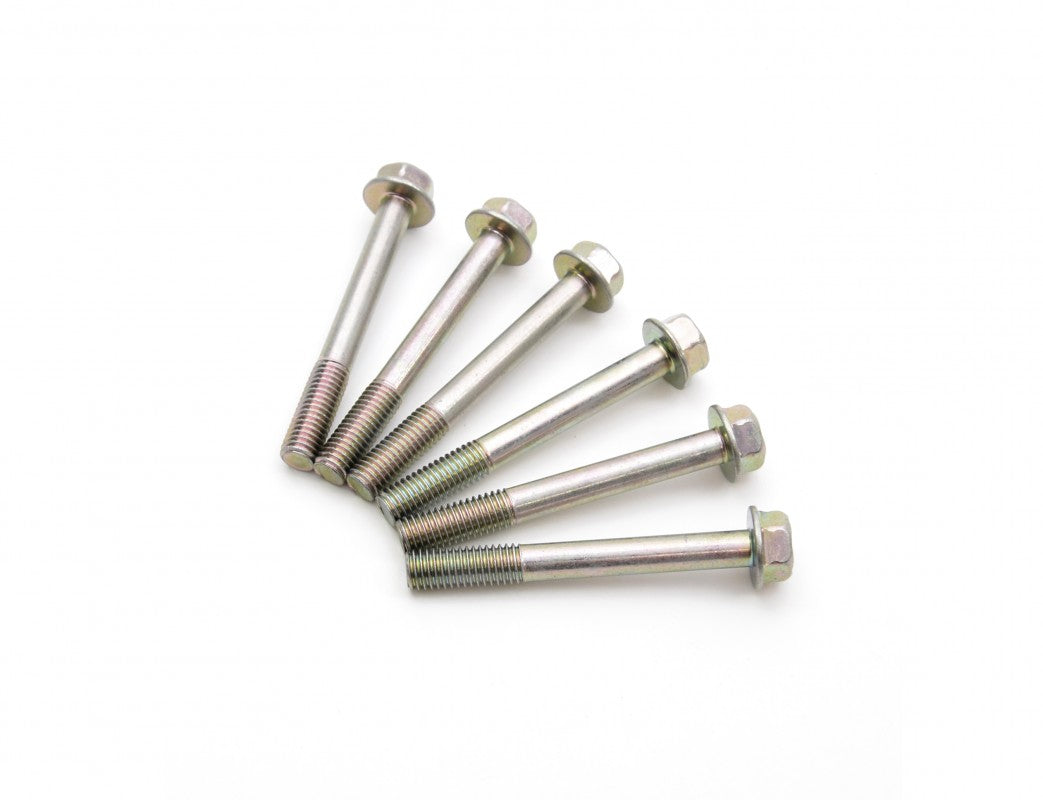

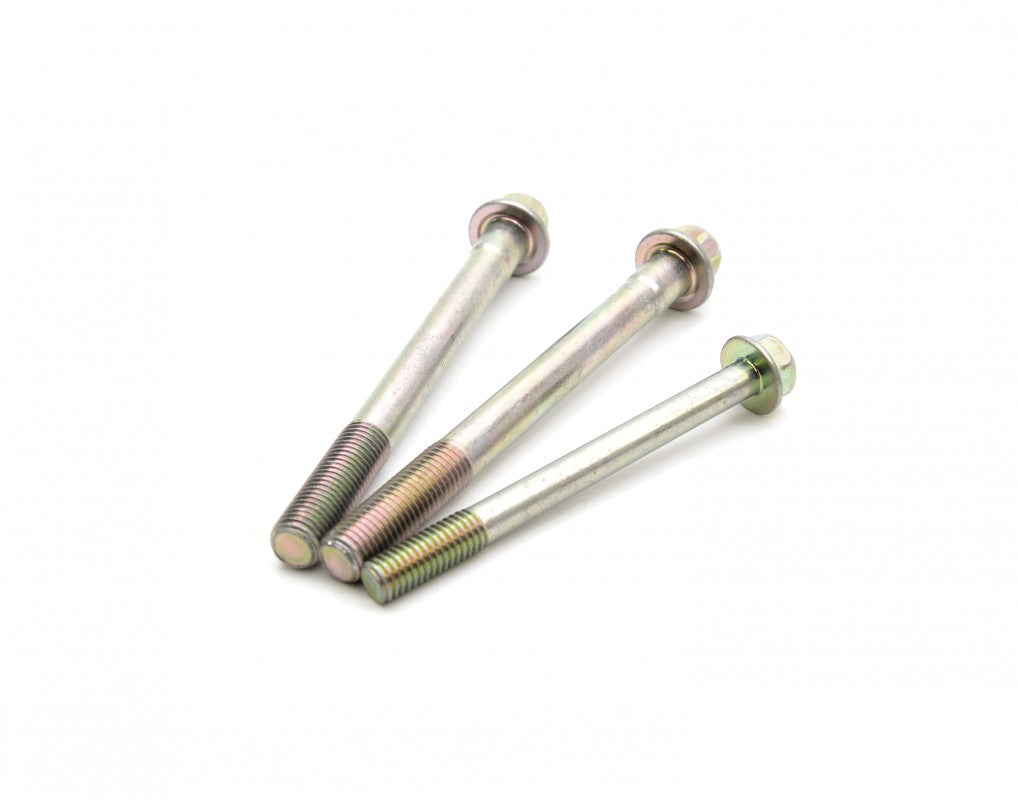

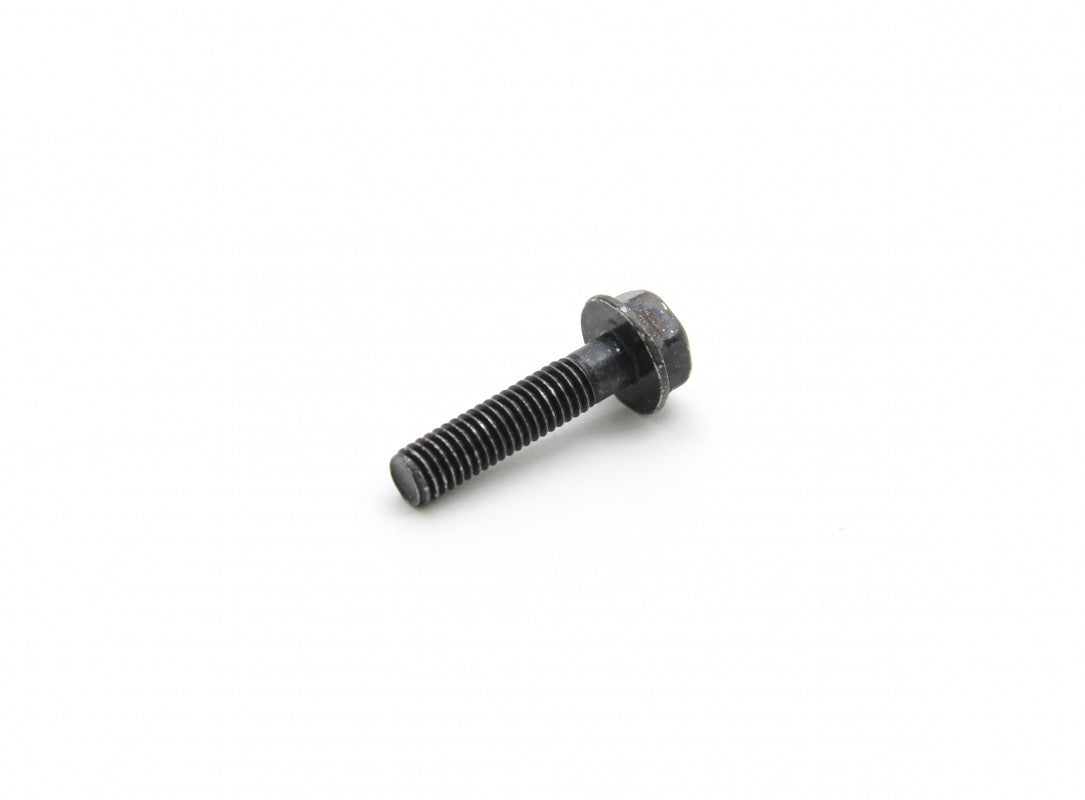

• 14 sump bolts.
• 6 Dowty seal washers.

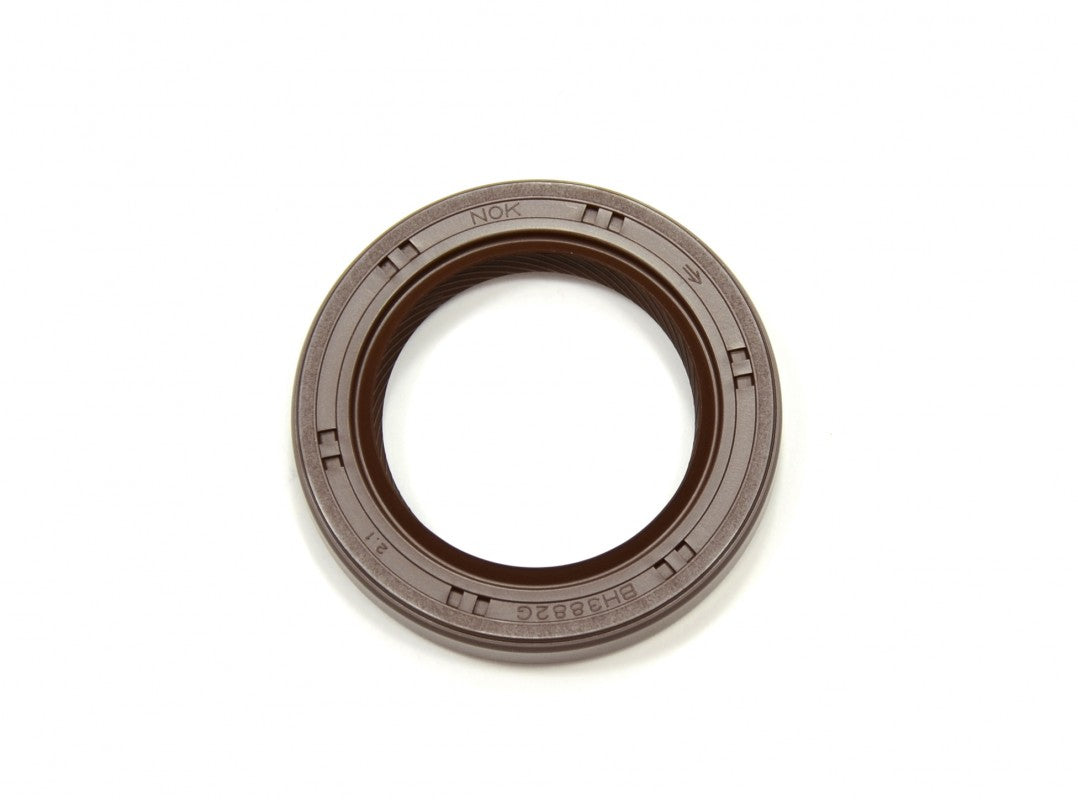

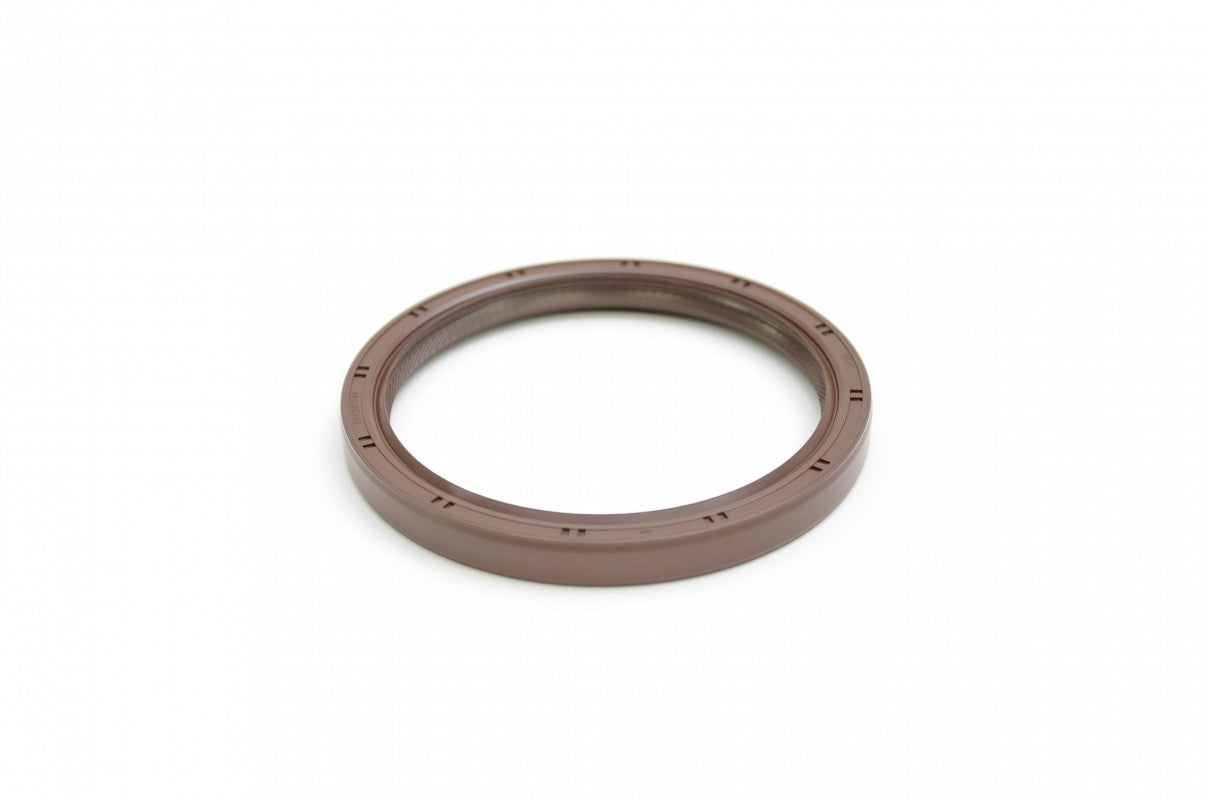

• 1 front crankshaft oil seal.
• 1 rear crankshaft oil seal.

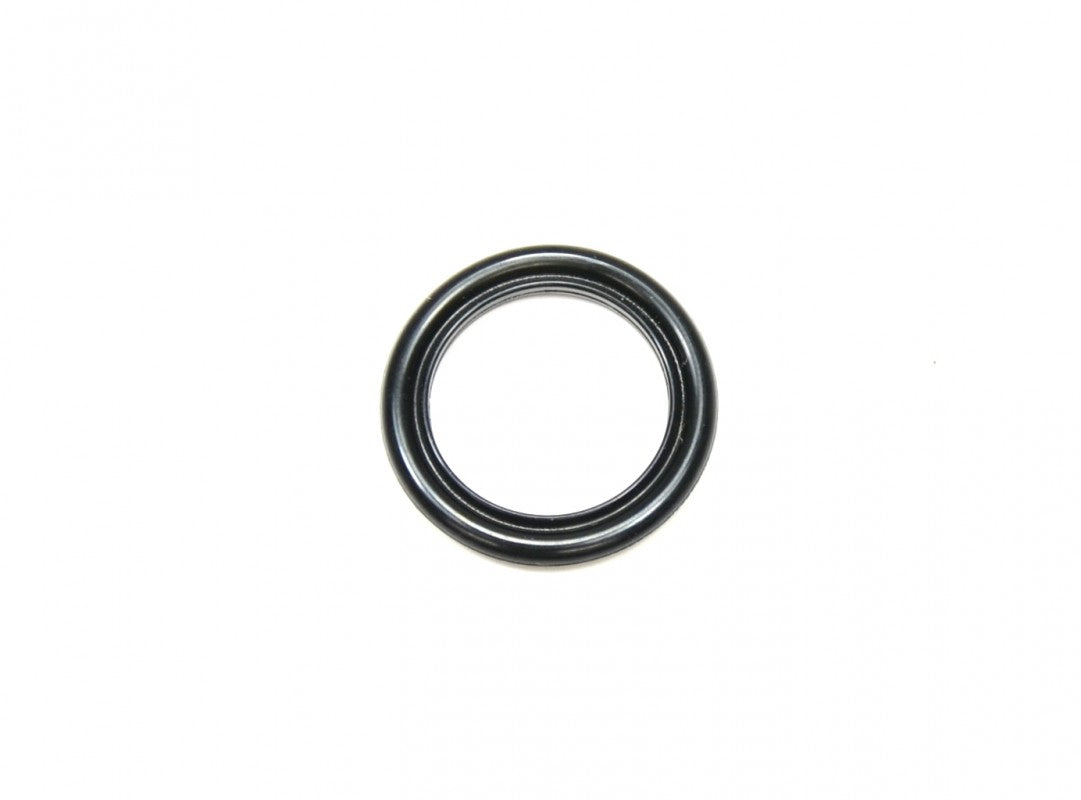

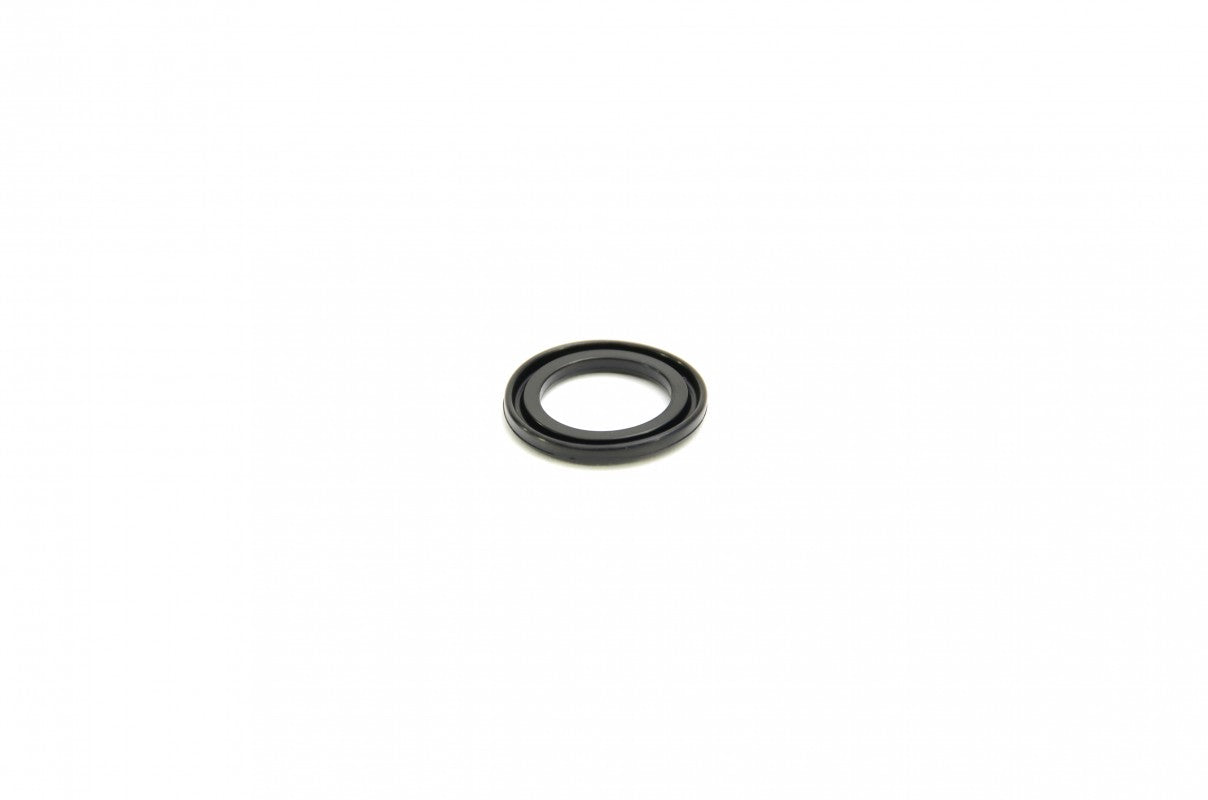

• 3 black cylinder block O-rings.

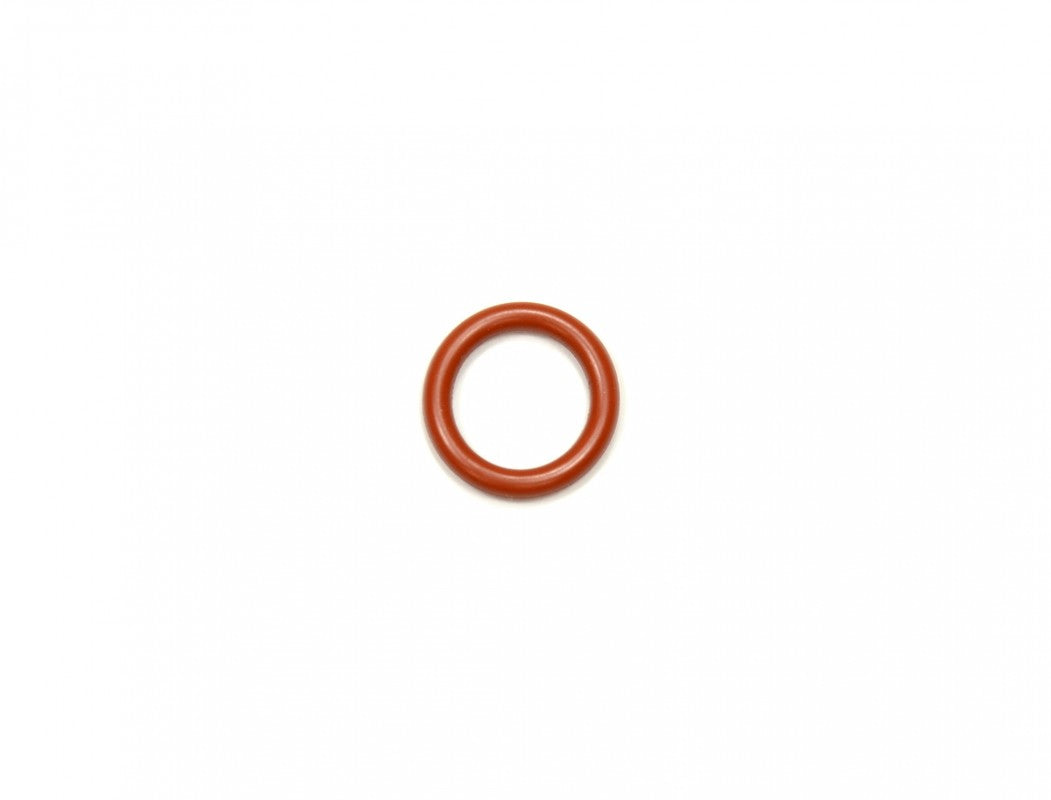

• 1 orange cylinder block O-ring.
• 2 water crossover pipe O-rings.
• 1 black oil pump gallery O-ring.
• 2 dipstick tube O-rings.
• 1 pickup pipe O-ring.
• 1 sump O-ring.

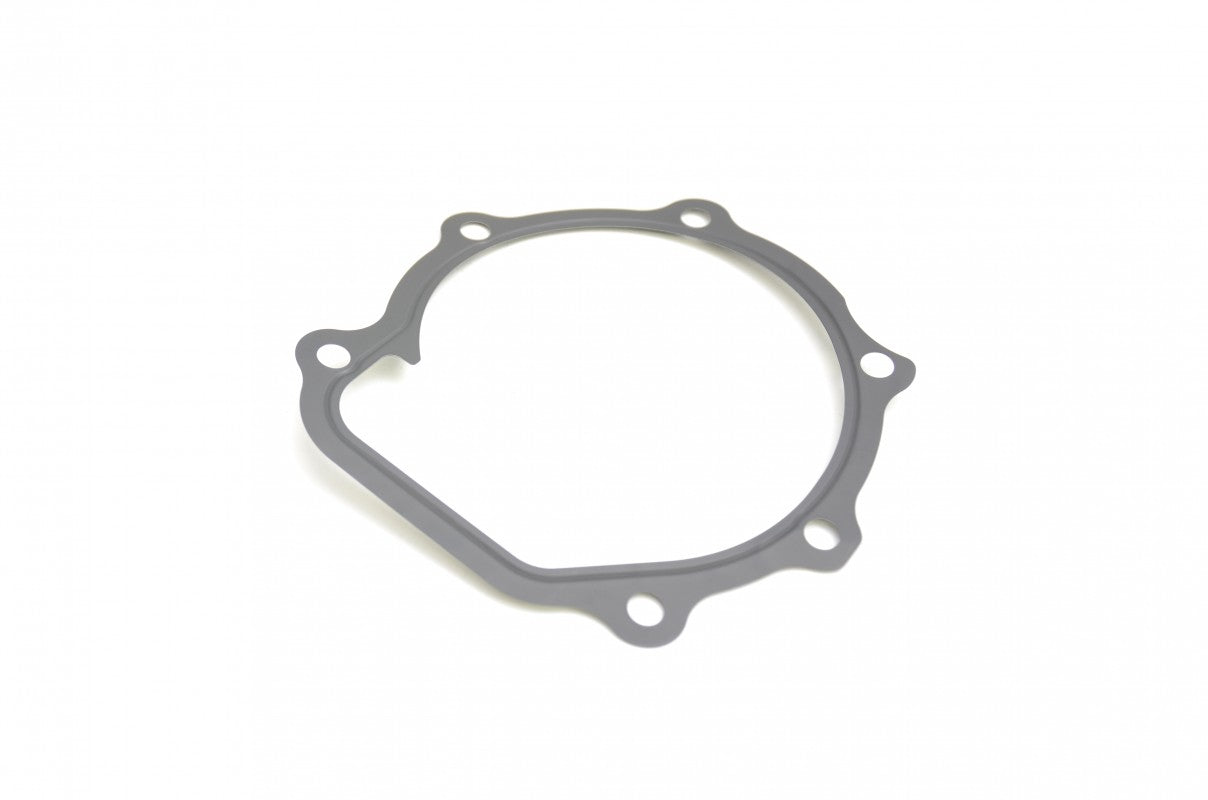

• 1 water pump gasket.
• 3 piston pin access-hole aluminium seals.

Fitment and build checks

Suitable for EJ-series engines, including EJ20, EJ22 and EJ25. Match the engine and the seal, gasket and fastener requirements for your particular build before ordering.

This is the listed rebuild hardware and sealing kit, not a complete short engine. Check separately any requirements for bearings, pistons, crankshaft, rods, sealant or other build components.

Other sealing option

If you are comparing seal-kit options, see the SEN1674 RCM block seal kit. Compare the contents required for the job; the two kits should not be assumed to have identical contents.

Build measurement

For bearing-clearance checks during assembly, see the Plastigauge bearing-clearance gauges. Select the measuring range appropriate for the clearances being checked.
