£57.99

RCM3038 dampened oil pickup assembly for Subaru GC8/GF8 from June 1995 onward. New genuine Subaru pickup with a pre lock-wired RCM anti-surge adaptor. Confirm the sump and pickup arrangement.

Non Stock Item – Ordered In
Typical lead time: 1–3 working days, subject to supplier stock.

Description

RCM dampened oil pickup pipe

RCM3038 combines a new genuine Subaru oil pickup pipe with an RCM anti-surge suction adaptor, supplied pre lock-wired. The adaptor lowers the point where oil enters the pickup to help reduce the risk of starvation during heavy cornering loads.

Features and contents

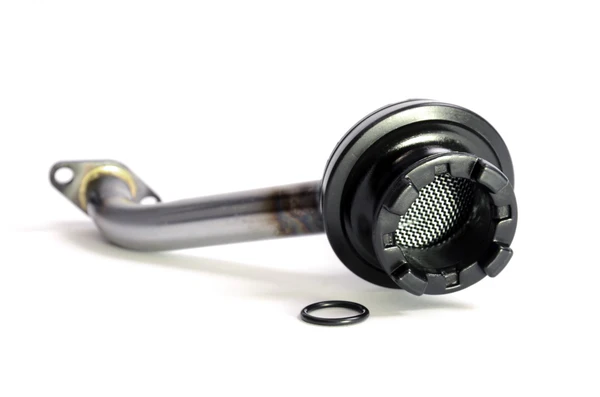

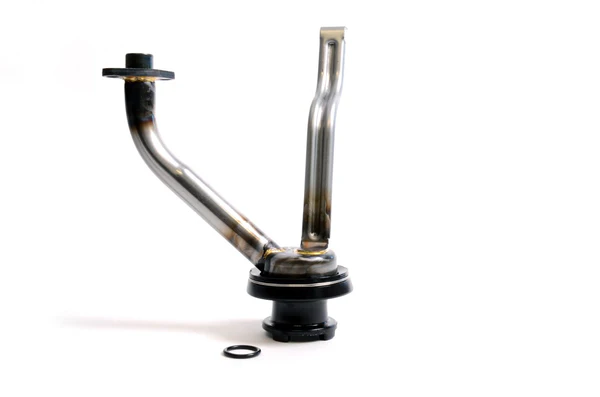

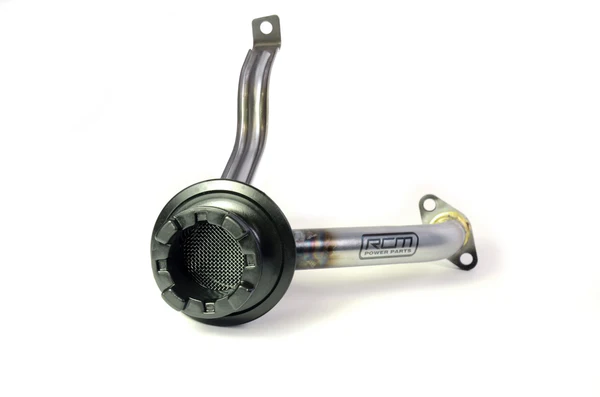

  • Oil pickup pipe assembly with the RCM adaptor already fitted and lock-wired.

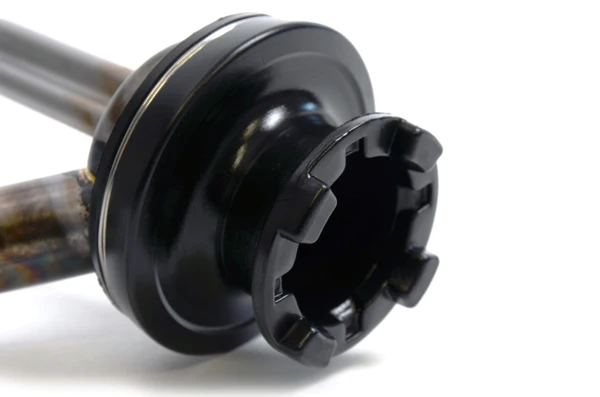

  • Castellated adaptor allows oil to enter when it touches the sump base.
  • The adaptor acts as a cushion and vibration damper to help reduce fatigue in the pickup pipe.
  • Product reference: RCM3038.

Fitment and installation

RCM’s confirmed application is Subaru GC8 / GF8 from June 1995 onward. Check the pickup and sump arrangement fitted to the engine before ordering; this assembled pipe should not be assumed to fit every EJ engine.

RCM describes compatibility with its baffled sump kits. Confirm the particular sump and pickup combination for your installation. Correct oil level, clearance and installation remain essential.

Adaptor-only option

If you are retaining a suitable existing EJ-series pickup pipe, see the RCM3037 oil pickup anti-surge adaptor. The adaptor is already included in RCM3038, so it is an alternative option rather than an additional required purchase.

Gallery illustration

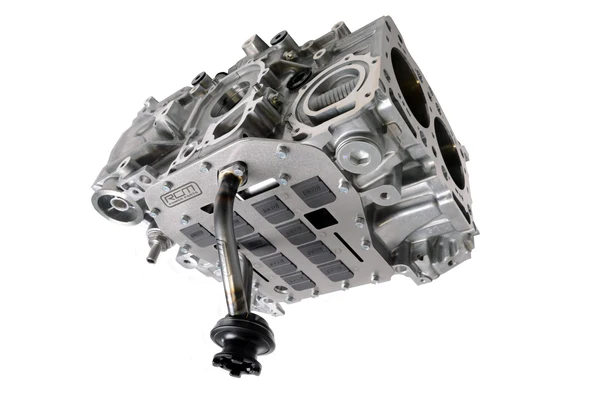

The installed-engine photograph illustrates the pickup arrangement. The engine and other components shown are not included.

Additional information

Weight 2 kg

Brand

Roger Clark Motorsport

Browse Roger Clark Motorsport (RCM) Subaru engine, cooling, performance and workshop products at MB Developments. Check the exact engine, model application and selected kit contents.
