Sale!

Original price was: £42.00.Current price is: £37.80.

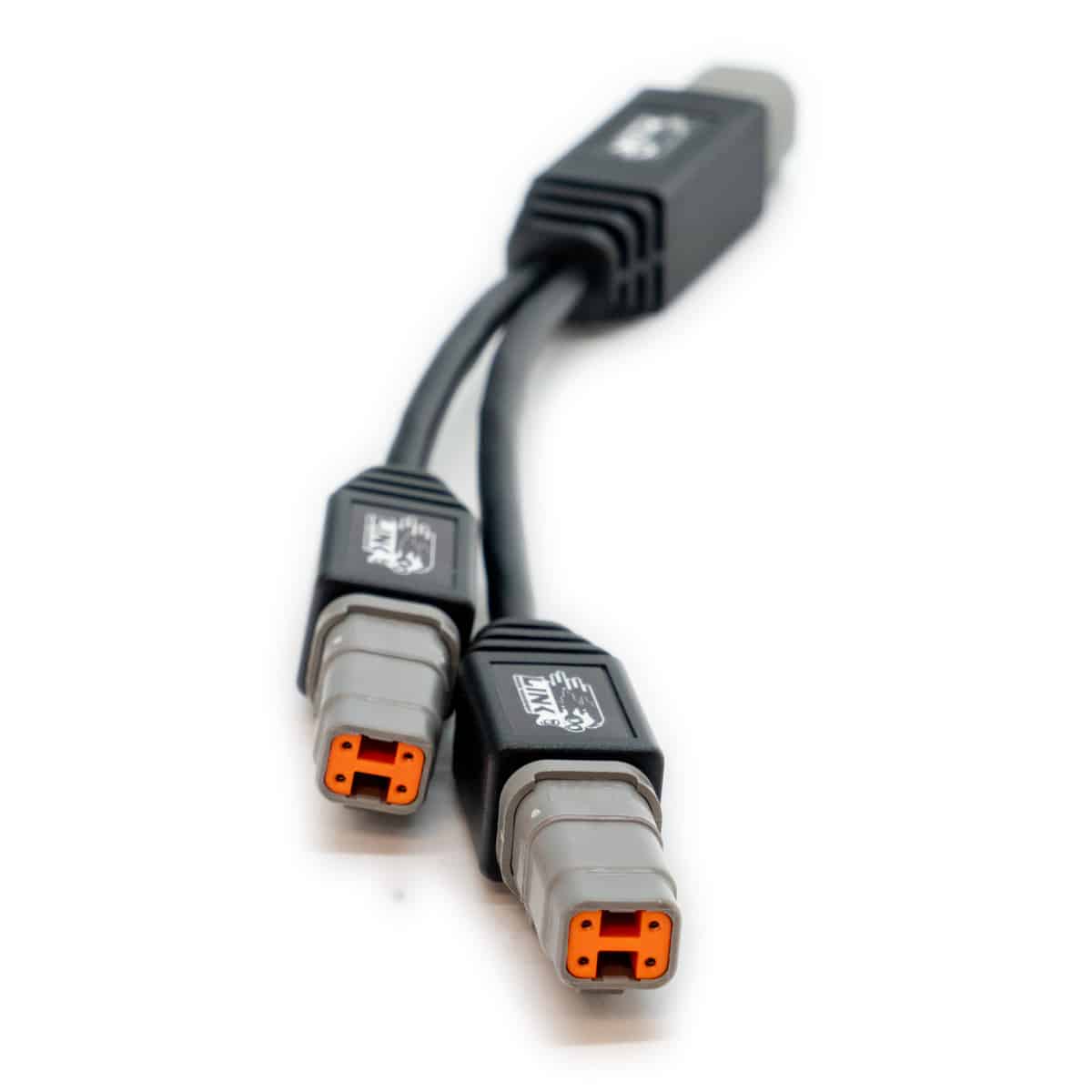

Link CANTEE CAN splitter cable with one DTM4 female connector and two DTM4 male branches for adding a second compatible CAN device. Includes CAN and power wiring; part number 101-0212.

Non Stock Item – Ordered In
Typical lead time: 1–3 working days, subject to supplier stock.

Description

Split one Link CAN connection between two compatible devices

The Link CANTEE CAN splitter cable provides two CAN-device connections from one compatible Link CAN lead. Link specifies it for use with the CANJST (101-0197), CANLTW (101-0211) or CANSS (101-0210) when two CAN devices need to share the same CAN and power connection.

Connections and wiring

  • One DTM4 female connector to two DTM4 male connectors.
  • Includes CAN high, CAN low, ground and 12 V power wiring.
  • Branch lengths: 80 mm and 120 mm.
  • Manufacturer part number 101-0212.

DTM4 pinout

  • Pin 4: CAN high.
  • Pin 3: CAN low.
  • Pin 2: ground.
  • Pin 1: 12 V.

Buying and installation note

This listing is for the splitter cable only. Confirm that the existing Link CAN lead, connected devices, termination arrangement and power requirements suit the intended installation before purchase. Further CAN leads and devices are sold separately.

Additional information

Weight 1 kg
Dimensions 20 × 20 × 10 cm
Connector layout

1 × DTM4 female to 2 × DTM4 male

Wiring

CAN high, CAN low, ground and 12 V

Branch lengths

80 mm and 120 mm

Manufacturer part number

101-0212

Brand

LINK ECU
