Name: Xtreme Clutch,Xtreme Performance Steel Backed Facing Clutch Kit - Single Plate 6 Speed Gearbox
Brand: Xtreme Clutches
SKU: KSU24001-1T
Price: 789.99 GBP
Availability: InStock

Description

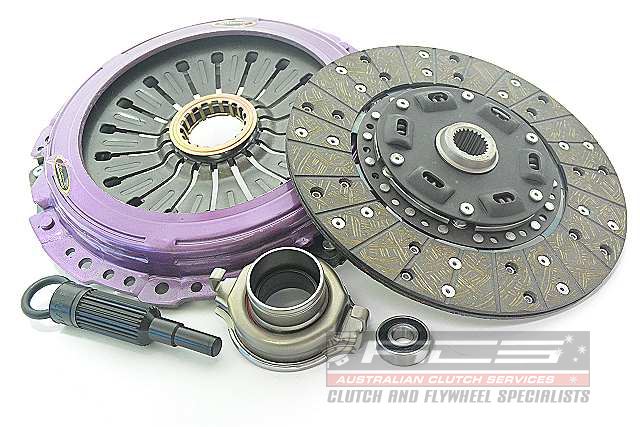

Xtreme Clutch,Xtreme Performance Steel Backed Facing Clutch Kit – Single Plate 6 Speed Gearbox

The Stage 1 clutch kit uses an upgraded pressure plate with increased clamping pressure, combined with an organic friction disc. Stage 1 delivers substantial increases in performance and power holding capability whilst retaining near factory type driveability, and is designed primarily for high performance road going vehicles.

These kits feature a high quality cover with increased clamping force compared with standard, between 20-40% depending on the demands of the individual vehicle.

They use an organic friction disc to retain drive-ability similar to standard.

KSU24001-1T

Tech. info

Clutch Disc Diameter (mm)

240
Clutch Disc Spline Count

24
Clutch Disc Spline Diameter (mm)

25.2
Torque (Nm)

570
Flywheel Step

-15.0mm
Design

Single Plate
Stage

Stage 1
Tech Bulletins
Clamp Load

1250Kg (30% inc.)
Recommended for

Street Performance & Towing – Stage 1

Applications

SUBARU	Impreza	2004.02-2005.07	2.0 WRX STi AWD	EJ207 1994 Petrol 235 kW 320 BHP (2004.02 – 2005.07)
SUBARU	Impreza	2005.09-2007.12	2.5 WRX STi AWD (GDF)	EJ257 2457 Petrol 206 kW 280 BHP (2005.09 – 2007.12)
SUBARU	Impreza	2005.09-2007.12	2.5 i WRX STI AWD	EJ257 2457 Petrol 195 kW 265 BHP (2005.09 – 2007.12)
SUBARU	Impreza	2005.10-2007.03	2.0 AWD (GDB)	EJ207 1994 Petrol 206 kW 280 BHP (2005.10 – 2007.03)
SUBARU	Impreza	2005.10-2007.03	2.5 AWD	EJ257 2457 Petrol 221 kW 300 BHP (2005.10 – 2007.03)
SUBARU	Impreza	2005.10-2007.03	2.5 AWD (GDF)	EJ257 2457 Petrol 221 kW 300 BHP (2005.10 – 2007.03)
SUBARU	Impreza	2008.01-2013.08	2.5 WRX STI AWD (GRF)	EJ257 2457 Petrol 221 kW 301 BHP (2008.01 – 2013.08)
SUBARU	Impreza	2009.05-2010.12	2.5 WRX STI 330S AWD	EJ257 2457 Petrol 243 kW 330 BHP (2009.05 – 2010.12)
SUBARU	Impreza	2010-2014	2.5 WRX STI AWD (GVF)	EJ255 2457 Petrol 221 kW 301 BHP (2010 – 2014)
SUBARU	Impreza	2010.04-2013.08	2.5 STI CS400 AWD (GRF)	EJ257 2457 Petrol 294 kW 400 BHP (2010.04 – 2013.08)
SUBARU	WRX sedan	2014.06-	STi 2.5 AWD	EJ257 2457 Petrol 221 kW 301 BHP (2014.06

Brand

Xtreme Clutches

Extreme Clutches offer the highest quality components with extensive in-house engineering and testing. High Performance Clutch Systems and Components for Street and Track. Custom Clutch Kits. Single and Twin Plate. Organic friction. Ceramic technology
