Description

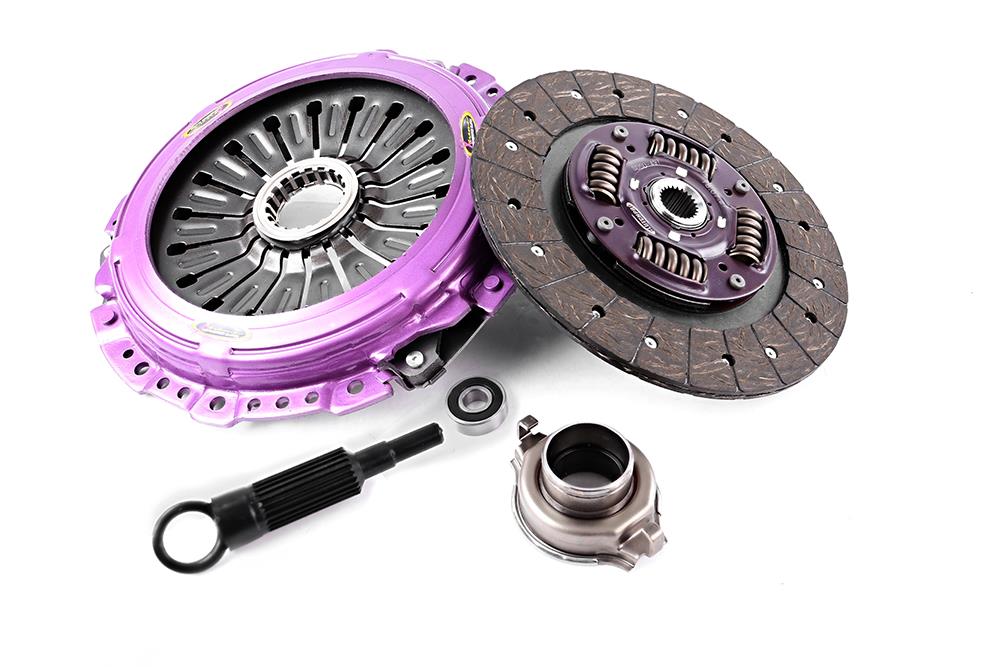

Xtreme Clutches Clutch Kit – Xtreme Performance Heavy Duty Organic 570Nm 1250kg (25% inc) Single Plate – 6 Speed Gearbox

Recommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Torque capacity 570Nm

• Clamp load 1250kg 25% Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. info

• Clutch Disc Diameter (mm)
  240
• Clutch Disc Spline Count
  24
• Clutch Disc Spline Diameter (mm)
  25.2
• Torque (Nm)
  570
• Flywheel Step
  -15.0mm/.590″”
• Design
  Single Plate
• Stage
  Stage 1
• Clamp Load
  1250kg (25% inc)
• Recommended for
  Street Performance & Towing – Stage 1
• Ring Gear Tooth count
• Additional infotmation

Applications

KU24001-1A
