Description

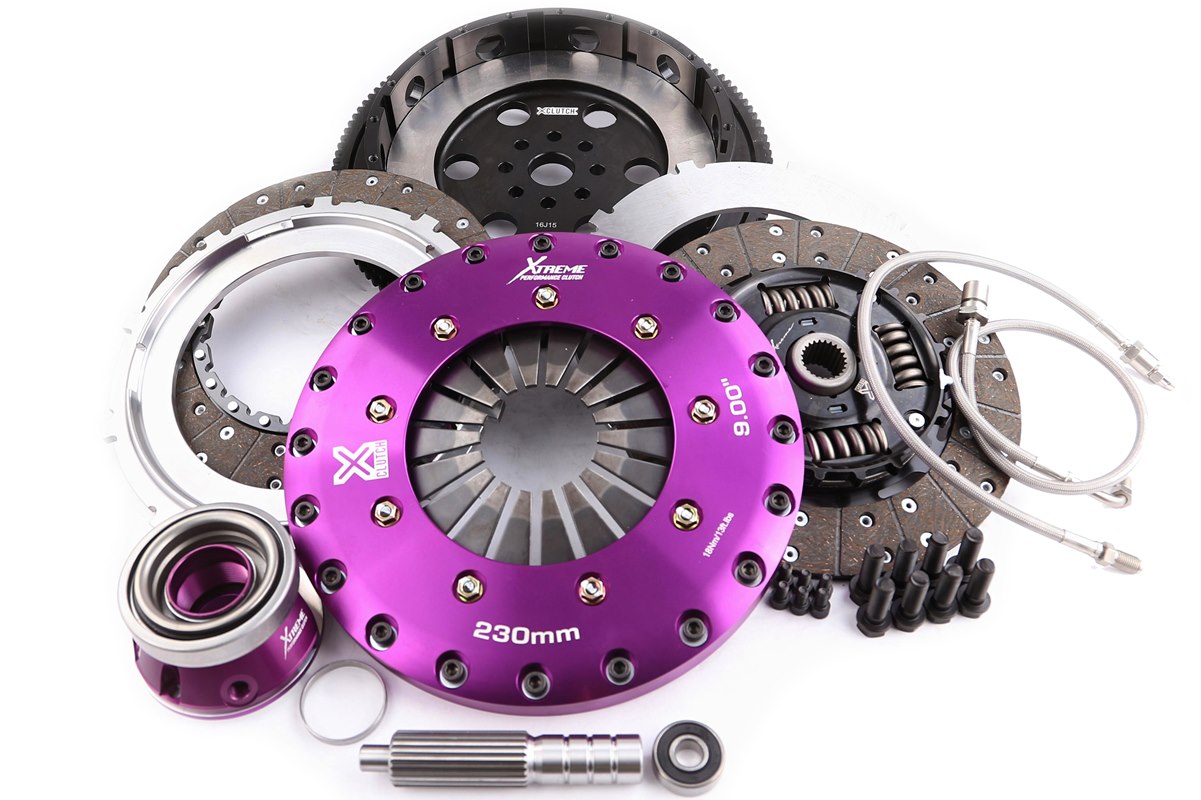

Xtreme Performance – 230mm Sprung hub Organic Twin Plate Clutch Kit Incl Flywheel & CSC 1000Nm (230mm Twin Plate -6 Speed Gearbox)

The Xtreme Clutch range of 230mm twin plate sprung organic clutch kits have been designed for high performance street vehicles that require reduced shock loading on the transmission in comparison to conventional rigid style discs. These kits are ideal for vehicles using factory style transmissions behind high torque applications and are recommended for street vehicles up to 1000 Nm of torque. The kits come complete with a performance pressure plate, sprung central hub, 2x organic friction discs, intermediate plate, 4140 chromoly flywheel, pressure plate bolts and alignment tool. Depending on application, these kits will also include a release bearing or concentric slave cylinder and flywheel bolts.

Tech. info

• Clutch Disc Diameter (mm)
  230
• Clutch Disc Spline Count
  24
• Clutch Disc Spline Diameter (mm)
  25.6
• Torque (Nm)
  1000
• Flywheel Step
  3,80
• Design
  Twin Plate
• Stage
  Multiplate – street use only

KSU23623-2A

Applications
