£1,522.99
Typical lead time: 1–3 working days, subject to supplier stock.
Description

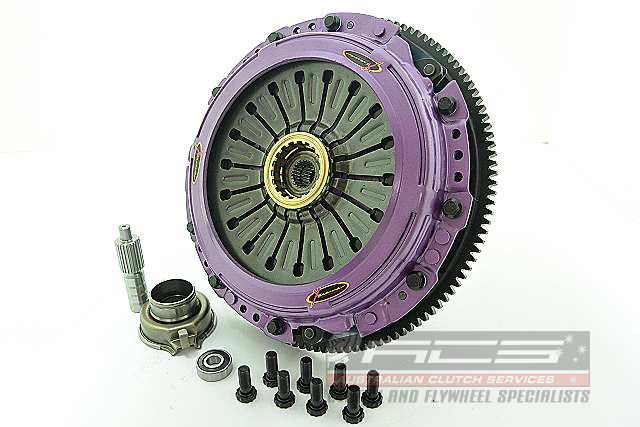

Xtreme Performance – 230mm Organic Twin Plate Clutch Kit Incl Flywheel 1200Nm (230mm Twin Plate-6 Speed Gearbox)
The Xtreme Clutch 230mm Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower street application.
The Xtreme 230mm Twin Plate Organic Clutch is the ultimate clutch solution for very high horsepower street vehicles. The 230mm range offers an exceptional torque capacity whilst retaining a lightweight design. Each 230mm kit includes a lightweight alloy pressure plate, choice of friction discs, performance flywheel and associated hardware including bearing, bolts and alignment tool. Xtreme Clutch 230mm upgrades have been designed to allow for extensive clutch operation options with internal hydraulic release bearings and pull-push conversions available for a variety of vehicles.
Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
Tech. info
-
Clutch Disc Diameter (mm)230
-
Clutch Disc Spline Count24
-
Clutch Disc Spline Diameter (mm)25.2
-
Torque (Nm)1380
-
Flywheel Step-19.5mm
-
DesignTwin Plate
-
StageMultiplate – street use only
KSU23531-2G
Applications
| SUBARU | Impreza | 2000.10-2002.10 | 2.0 WRX STi AWD (GGB) | EJ207 1994 Petrol 206 kW 280 BHP (2000.10 – 2002.10) |
| SUBARU | Impreza | 2004.02-2005.07 | 2.0 WRX STi AWD | EJ207 1994 Petrol 235 kW 320 BHP (2004.02 – 2005.07) | ||
| SUBARU | Impreza | 2005.09-2007.12 | 2.5 WRX STi AWD (GDF) | EJ257 2457 Petrol 206 kW 280 BHP (2005.09 – 2007.12) | ||
| SUBARU | Impreza | 2005.09-2007.12 | 2.5 i WRX STI AWD | EJ257 2457 Petrol 195 kW 265 BHP (2005.09 – 2007.12) | ||
| SUBARU | Impreza | 2005.10-2007.03 | 2.0 AWD (GDB) | EJ207 1994 Petrol 206 kW 280 BHP (2005.10 – 2007.03) | ||
| SUBARU | Impreza | 2005.10-2007.03 | 2.5 AWD | EJ257 2457 Petrol 221 kW 300 BHP (2005.10 – 2007.03) | ||
| SUBARU | Impreza | 2005.10-2007.03 | 2.5 AWD (GDF) | EJ257 2457 Petrol 221 kW 300 BHP (2005.10 – 2007.03) | ||
| SUBARU | Impreza | 2008.01-2013.08 | 2.5 WRX STI AWD (GRF) | EJ257 2457 Petrol 221 kW 301 BHP (2008.01 – 2013.08) | ||
| SUBARU | Impreza | 2009.05-2010.12 | 2.5 WRX STI 330S AWD | EJ257 2457 Petrol 243 kW 330 BHP (2009.05 – 2010.12) | ||
| SUBARU | Impreza | 2010-2014 | 2.5 WRX STI AWD (GVF) | EJ255 2457 Petrol 221 kW 301 BHP (2010 – 2014) | ||
| SUBARU | Impreza | 2010.04-2013.08 | 2.5 STI CS400 AWD (GRF) | EJ257 2457 Petrol 294 kW 400 BHP (2010.04 – 2013.08) | ||
| SUBARU | WRX sedan | 2014.06- | STi 2.5 AWD | EJ257 2457 Petrol 221 kW 301 BHP (2014.06 -) |
Additional information
| Weight | 16.85 kg |
|---|
Brand
Xtreme Clutches
