£1,589.99
Non Stock Item – Ordered In
Typical lead time: 1–3 working days, subject to supplier stock.
Typical lead time: 1–3 working days, subject to supplier stock.
Description

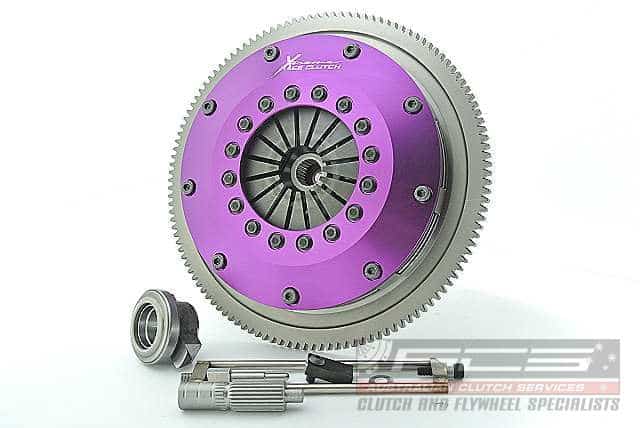

Xtreme Performance – 200mm Sprung Ceramic Twin Plate Clutch Kit Incl Flywheel 1200Nm (5 Speed Gearbox)
Xtreme Motorsport 200mm twin plate
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality.
The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).
Product Features:
- Torque capacity 1200Nm
- Kit contains everything you need for a successful installation + accessories
- High torque sprung driven discs (common hub)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
Overview
-
Clutch Disc Diameter (mm)200
-
Clutch Disc Spline Count24
-
Clutch Disc Spline Diameter (mm)25.5
-
Torque (Nm)1200
-
Flywheel Step+2.2mm
-
DesignTwin Plate
-
StageMultiplate – track use only
KSU20520-2B
Applications
| SUBARU | Impreza | 2002.12-2006.09 | 2.0 WRX Turbo AWD (GGA) | EJ205 1994 Petrol 165 kW 225 BHP (2002.12 – 2006.09) |
| SUBARU | Impreza | 1998.06-2000.12 | 2.0 Turbo GT AWD (GC8) | EJ205 1994 Petrol 160 kW 218 BHP (1998.06 – 2000.12) | ||
| SUBARU | Impreza | 1998.06-2000.12 | 2.0 Turbo GT AWD (GF8) | EJ205 1994 Petrol 160 kW 218 BHP (1998.06 – 2000.12) | ||
| SUBARU | Impreza | 1998.09-2000.09 | 2.0 AWD (GC8) | EJ205P 1994 Petrol 206 kW 280 BHP (1998.09 – 2000.09) | ||
| SUBARU | Impreza | 2000.12-2005.12 | 2.0 Turbo AWD (GGA) | EJ205 1994 Petrol 160 kW 218 BHP (2000.12 – 2005.12) | ||
| SUBARU | Impreza | 2000.12-2005.12 | 2.0 WRX Turbo AWD (GDA) 5 speed | EJ205 1994 Petrol 160 kW 218 BHP (2000.12 – 2005.12) | ||
| SUBARU | Impreza | 2001.09-2005.12 | 2.0 WRX AWD (GGA) | EJ205 1994 Petrol 169 kW 230 BHP (2001.09 – 2005.12) |
Additional information
| Weight | 16.47 kg |
|---|
Brand
Xtreme Clutches
Extreme Clutches offer the highest quality components with extensive in-house engineering and testing. High Performance Clutch Systems and Components for Street and Track. Custom Clutch Kits. Single and Twin Plate. Organic friction. Ceramic technology
