Price range: £417.99 through £447.99
Application-specific RCM billet R180 rear differential cover kits. Choose the correct Subaru application and stainless steel or magnetic sump plug. R160 fitment is excluded.
Typical lead time: 1–3 working days, subject to supplier stock.
Description
RCM Billet R180 Rear Differential Cover Kits
Choose the cover application and sump-plug option required for the Subaru R180 rear differential fitted to the vehicle. These black-anodised CNC-machined billet covers are separate application-specific RCM kits; select by model code and confirm the car has an R180 carrier before ordering.
Application Options
- GC8 1992–2000 / GRB, GVB & VAF 2008+ – RCM3447: RCM cover kit for the listed applications with an R180 rear differential carrier.
- GDB/GGB Impreza with R180 – RCM3496: RCM cover kit for GDB/GGB applications equipped with an R180 rear differential carrier.
Neither cover fits an R160 differential. Confirm the actual carrier where a vehicle has been converted or its drivetrain specification is uncertain.
Features
- Black-anodised CNC-machined billet-aluminium cover with cooling fins.
- RCM states a 1000cc oil capacity, compared with 800cc for the standard part: a 25% increase.
- Large M20 fill and drain ports.
- Additional M16 port for a suitable temperature sensor or external oil-cooler plumbing.
Supplied in Each Kit
- One application-specific RCM billet rear differential cover.
- Two differential mounting studs with nuts.
- One rear-cover gasket and one OEM differential breather.
- One M20 x 1.5 stainless steel fill plug.
- One M16 x 1.5 stainless steel blanking plug.
- Eight cover-to-housing bolts.
- The selected stainless steel or high-intensity magnetic drain plug.
Sump-Plug Options
- Stainless steel: standard M20 x 1.5 stainless steel drain plug.
- High intensity magnetic upgrade: Gold Plug drain-plug option. RCM specifies a 303 stainless steel body and N45SH neodymium magnet designed to collect ferrous wear particles for removal during an oil change.

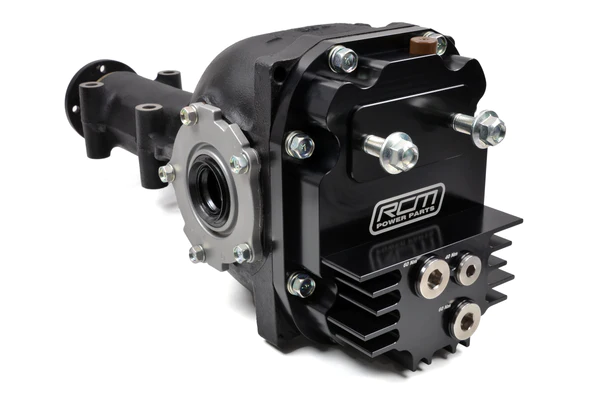

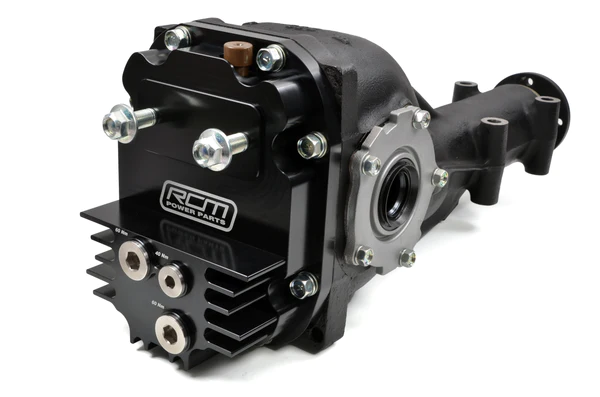

Each selectable choice has its own RCM SKU, price and availability. Photographs showing a complete differential are installation illustrations; the differential unit, temperature sensor and external cooler are not included.
Additional information
| Weight | 10 kg |
|---|---|
| Vehicle / cover application | GC8 1992–2000 / GRB, GVB & VAF 2008+ – RCM3447, GDB/GGB Impreza with R180 – RCM3496 |
| RCM REAR DIFF COVER | High Intensity Magnetic Sump Plug Upgrade, Stainless Steel Sump Plug |
