£1,332.99

Non Stock Item – Ordered In
Typical lead time: 1–3 working days, subject to supplier stock.

Description

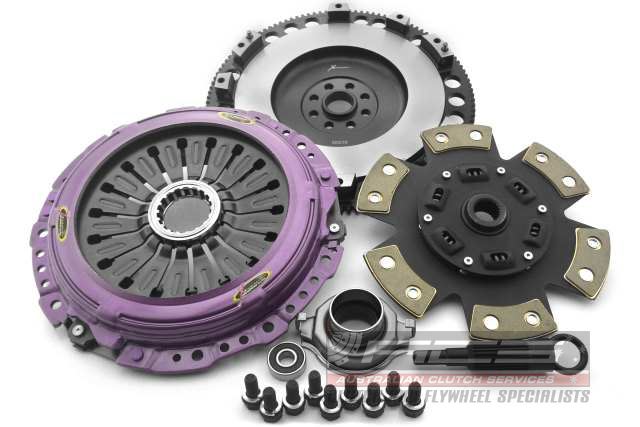

Xtreme Clutch- Clutch Kit – Xtreme Performance Race Sprung Ceramic Incl Flywheel 1150Nm Single Plate 6 Speed Gearbox

Xtreme Performance – Extra Heavy Duty Sprung Ceramic/-1R

Recommended for: Motorsport Applications

-1R kits feature a sprung ceramic friction disc, but with even greater clamping force pressure plate for higher torque capacity. These kits are designed specifically for motorsport applications such as circuit, rally, drifting and drag racing.



Specifications:
  • Torque capacity 1150Nm
  • Clamp load Increased over standard
  • Sprung Ceramic Friction Disc
  • Extra Heavy Duty Pressure Plate
  • Kit contains everything you need for a successful installation + accessories



The sprung ceramic range of kits have been developed for motorsport applications where a higher heat and torque capacity is required. These discs utilise a sprung hub that helps to reduce shock loading and are commonly used in track cars that retain the factory transmission.



Xtreme Performance

At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.



What’s in the Box?



Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. info
  • Clutch Disc Diameter (mm)
    240
  • Clutch Disc Spline Count
    24
  • Clutch Disc Spline Diameter (mm)
    25.2
  • Torque (Nm)
    1150
  • Flywheel Step
  • Design
    Single Plate
  • Stage
    Stage 2R
  • Tech Bulletins
  • Clamp Load
  • Recommended for
    Race Vehicles – Stage 2R
  • Ring Gear Tooth count
  • Additional infotmation
  • Weight [KG]:
    15.9

KSU24501-1R

Applications

SUBARU Impreza 2004.02-2005.07 2.0 WRX STi AWD EJ207 1994 Petrol 235 kW 320 BHP (2004.02 – 2005.07)
SUBARU Impreza 2005.10-2007.03 2.0 AWD (GDB) EJ207 1994 Petrol 206 kW 280 BHP (2005.10 – 2007.03)
SUBARU Impreza 2001.11-2005.07 2.0 WRX STi AWD (GDB) EJ207 1994 Petrol 195 kW 265 BHP (2001.11 – 2005.07)

Additional information

Weight 15.9 kg

Brand

Xtreme Clutches

Extreme Clutches offer the highest quality components with extensive in-house engineering and testing. High Performance Clutch Systems and Components for Street and Track. Custom Clutch Kits. Single and Twin Plate. Organic friction. Ceramic technology
