DBA Brake Kit – 4000 Series Plain & Xtreme Performance Brake Pads Subaru Impreza 2001-2017 STI

Description

DBA Brake Kit – 4000 Series Plain & Xtreme Performance Brake Pads Subaru Impreza 2 2001-2017 STI

4000 Series HD features a smooth OE style rotor finish, popular for drivers looking for the benefits of a 4000 Series rotor but requiring an OE style look, such as controlled race divisions. The XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

*DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance*

Specifications:

Street performance and occasional track day suitable
Perfectly matching and extensively tested combination of disc and pad
Save 5% of the price when purchasing Combo
DBA discs: Kangaroo Paw – 144 diamond and tear drop pillar ventilation system
DBA discs: 4000 plain – *DBA recommends T3 slotted rotors in the 4000 & 5000 Series for best stopping performance*
DBA discs: Thermal Stability Profiling (TSP) and enhance durability of the disc under heavy braking conditions
DBA pads: Semi-metallic, carbon fibre friction material
DBA pads: G-G Class Friction (0.45 average mu from low to high temperatures)
DBA pads: Excellent high temperature performance
DBA pads: Optimal braking consistency up to 550℃ (1022℉)
Direct fit, no changes required over stock set up
One combo – one manufacturer = no warranty issues

Contents of Kit DBA4654-10-1678XP

DBA4654-10 – 4000 series – plain
DB1678XP – Brake Pads Xtreme Performance ECE R90 certified (Hawk HB453x.585)

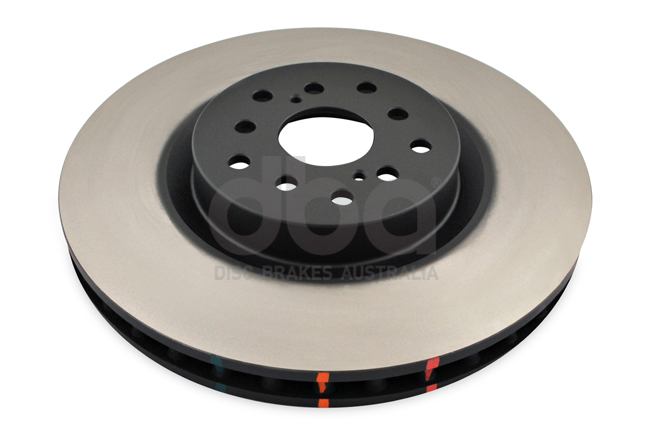

DBA4654-10

Diameter [mm]
326
Disc Vent
Kangaroo Paw
Number of Holes
10
Inner Diameter [mm]
58
Minimum Thickness [mm]
28
Thickness [mm]
30
Height [mm]
53
Pitch Circle [mm]
100 & 114.3

DB1678XP

Width [mm]
131.8
Height [mm]
77.3
Pad thickness [mm]
14
FMSI
7902-D1001
OEM
26296FE100
Axle
Front
ECE R90 Number
E11 R90-02A01584/49928
Weight [KG]:
2.28

DBA4654-10-1678XP
